Icom IC-F50 Service Manual Addendum

5 - 3
+
Add a jumper wire here
Electrolytic capacitor
47 µF
OPC-966
(Cloning cable)
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
PTT
PTTE
MIC
MICE
SP–
SP+
+
–
FM
deviation meter
SINAD meter
Speaker (8
Ω)
Audio generator
*OPC-966
(JIG CABLE)
RS-232C cable (straight)
IC-F50/F51
DB9 female plug
(incl. level converter circuit)
to an RS-232C port
Personal
computer
to the antenna connector
Attenuator
40 dB or 50 dB
RF power meter
0.1–10 W/50 Ω
Frequency
counter
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
CAUTION!
DO NOT transmit while
to SSG is connected to
the antenna connector
AC millivoltmeter

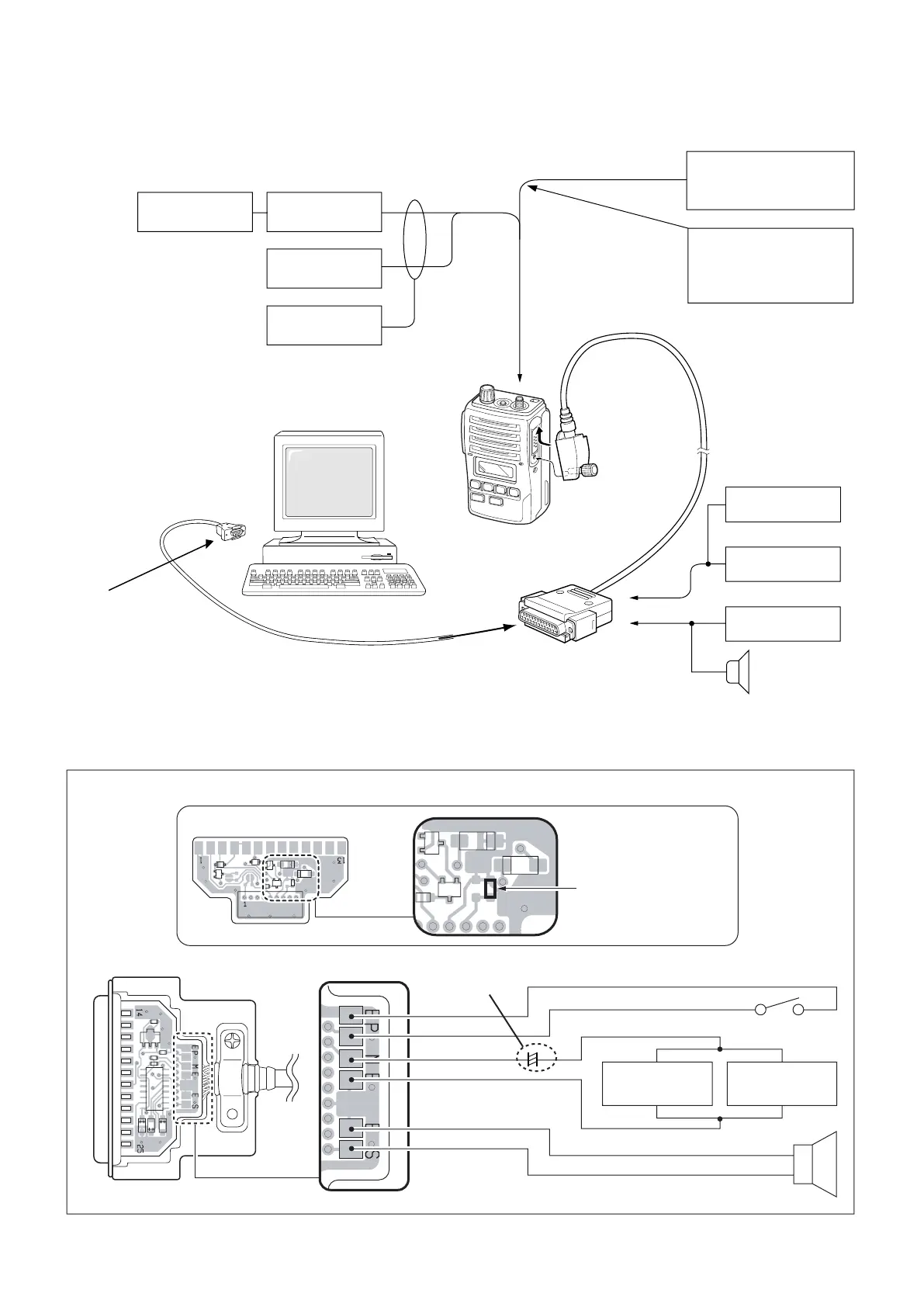

• CONNECTION
• *OPC-966 (JIG CABLE)
