Icom IC-F5061/D

16
3
CONNECTION AND MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■ Antenna
A key element in the performance of any communication
systems is an antenna. Contact your dealer for more infor
-
mation regarding antennas and how to install them.

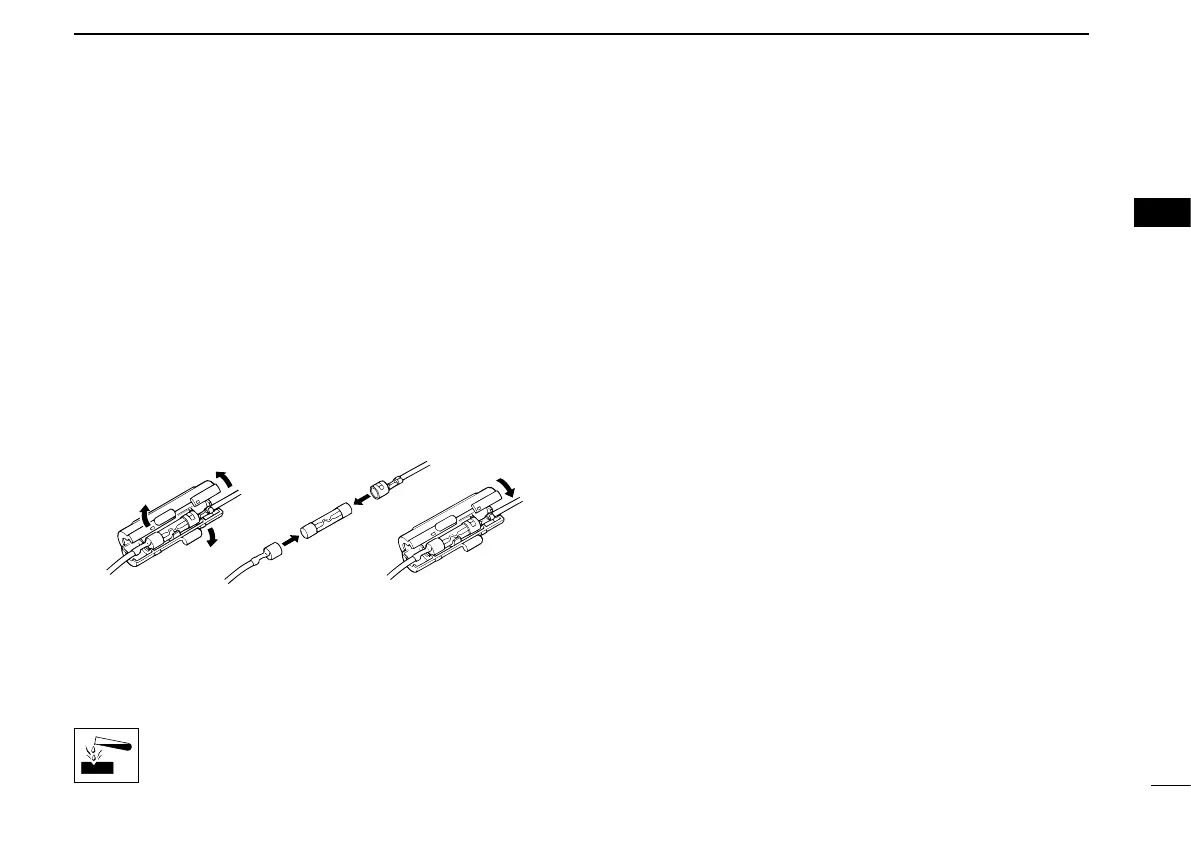

■ Fuse replacement
A fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem if possible, and then replace the dam
-
aged fuse with a new rated one.
❑ Fuse rating: 20 A
USE the 20 A fuse only.
■ Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
AVOID
the use of solvents such as benzene or
alcohol, as they may damage the transceiver sur
-
faces.
■ Options
• RMK-3 separation kit +
OPC-607/OPC-608/OPC-609 separation cable
Allows you to install the transceiver main unit separately from the
front panel for operating convenience.
• OPC-1132/OPC-347 dc power cable
OPC-1132: 3 m (9.8 ft)
OPC-347: 7 m (23 ft)
• HM-152/HM-152T/HM-148 hand microphone
HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148 : Heavy duty microphone
• SM-25 desktop microphone
• SP-5/SP-10/SP-22 external speaker
Input impedance : 4 ø
Max. input power : 5 W
SP-5 : Large speaker for good audio quality.
SP-10 : For all-round mobile operation.
SP-22 : Compact and easy-to-install.
• UT-109R/UT-110R scrambler units
Non-rolling type (UT-109R)/Rolling type (UT-110R) voice scrambler
unit provides higher communication security.
• UT-96R 5tone unit
• UT-126H digital modulator/demodulator unit
Provides 6.25 kHz digital mode operation.
( UT-126H is a upgrade version of UT-119H. UT-119H can be used
depending on the version. Ask your dealer for details.)
