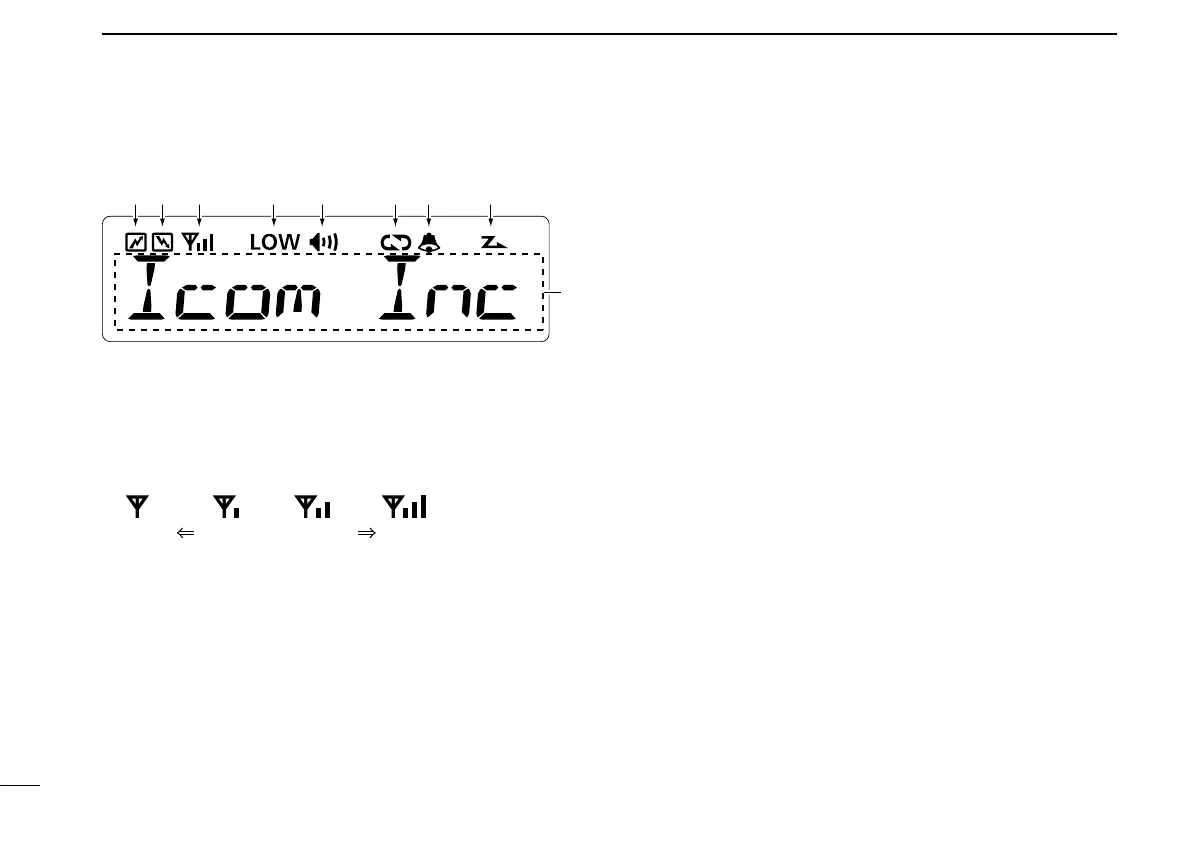

■ Function display
q TRANSMIT ICON
Appears while transmitting.
w BUSY ICON
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level as below.
Weak Receive Signal level Strong
r LOW POWER ICON
Appears when low output power is selected.
t AUDIBLE ICON
➥ Appears when the channel is in the ‘Audible’ (unmute)
condition.
➥ Appears when the specific 2/5-tone/MDC* code is re-
ceived.
y ENCRYPTION ICON
Appears when the encryption function is activated while
operating in the digital mode.
u BELL ICON
Appears/blinks when the specific 2/5-tone/MDC* code is
received, according to the pre-programming.
i SCAN ICON
Blinks during scan.
o ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name, Set
mode contents, DTMF code, etc.
* MDC operation only (p. 13)
2
1
PANEL DESCRIPTION
