*; Enter the Confi g Menu as shown below.
1) Push [
] to return to the Main Menu.
2) Select “Setmode” and push [
] to enter, and then select “Confi g” using [
]/[
].
3) Select “RF Power,” and then set the TX power.
4) Return to the Factory Menu to continue the adjustment.

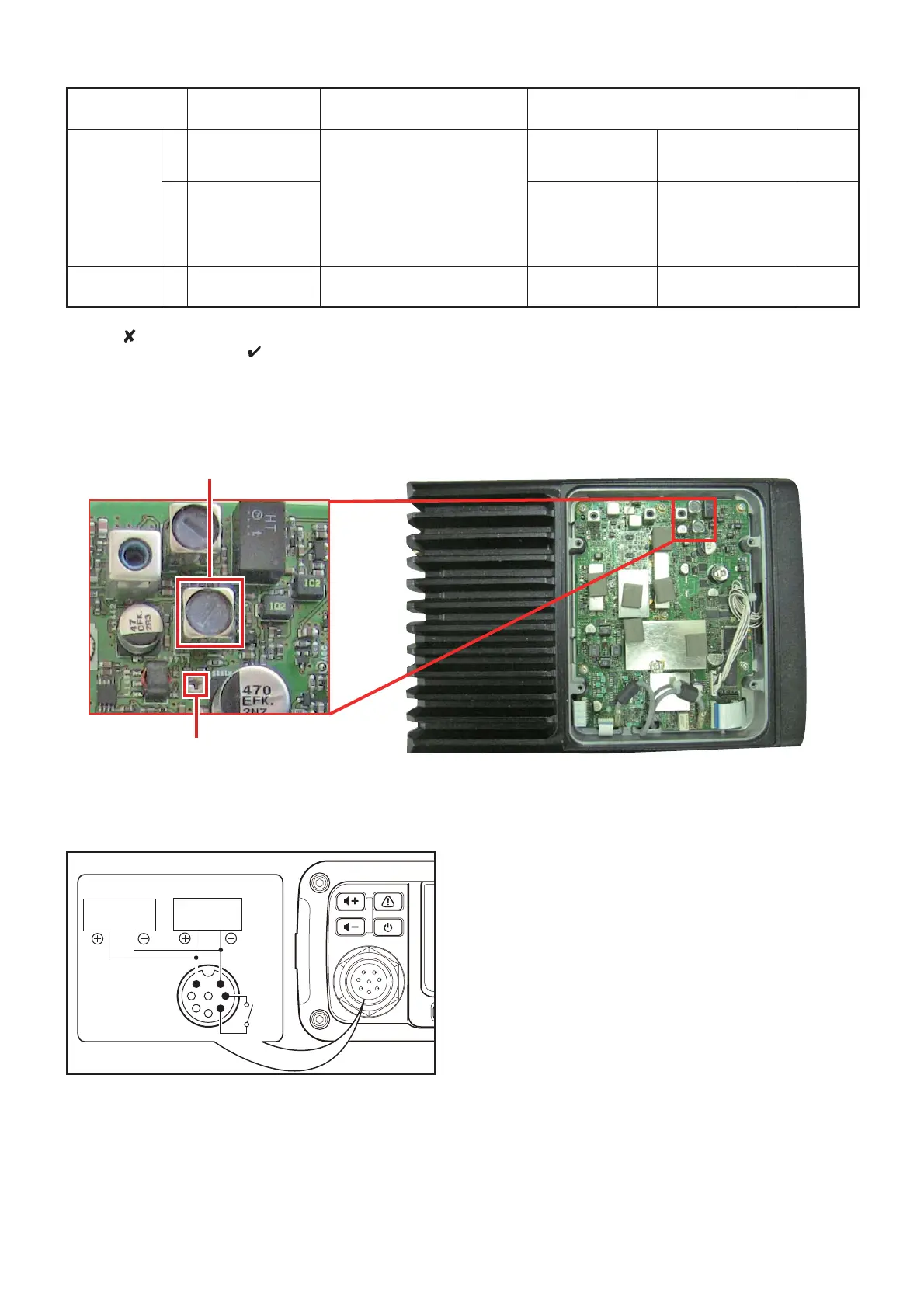

5-3 TRANSMIT ADJUSTMENTS (Continued)
5-9
• ADJUSTMENT POINT ON THE MAIN-A UNIT
• CONNECTION FOR THE TX IF ADJUSTMENT
[MIC]
Audio
generator
Frequency: 1 kHz
Level: 1 mVrms
PTT
AC millvolt
meter
ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
TX IF 1 • Channel: 23
• Mode: USB
• Receiving
• Test equipment
1) Connect the test equipment
to the antenna connector and
[MIC].
2) Set the test equipment’s audio
generator as:
Frequency: 1 kHz
Level: 1 mV
(Confi g Menu)* "RF Power"
"HIGH"
2 • Transmitting
(MAIN-A UNIT) L1444
Maximum
TX power
TX IF GAIN 1 • Channel: 24
• Receiving
– (MAIN-A UNIT) R1535
Center
position
TX IF ADJUSTMENT POINT
(L1444)
TX IF GAIN ADJUSTMENT POINT
(R1535)
To Next Page
