Mounting the transceiver
Main unit

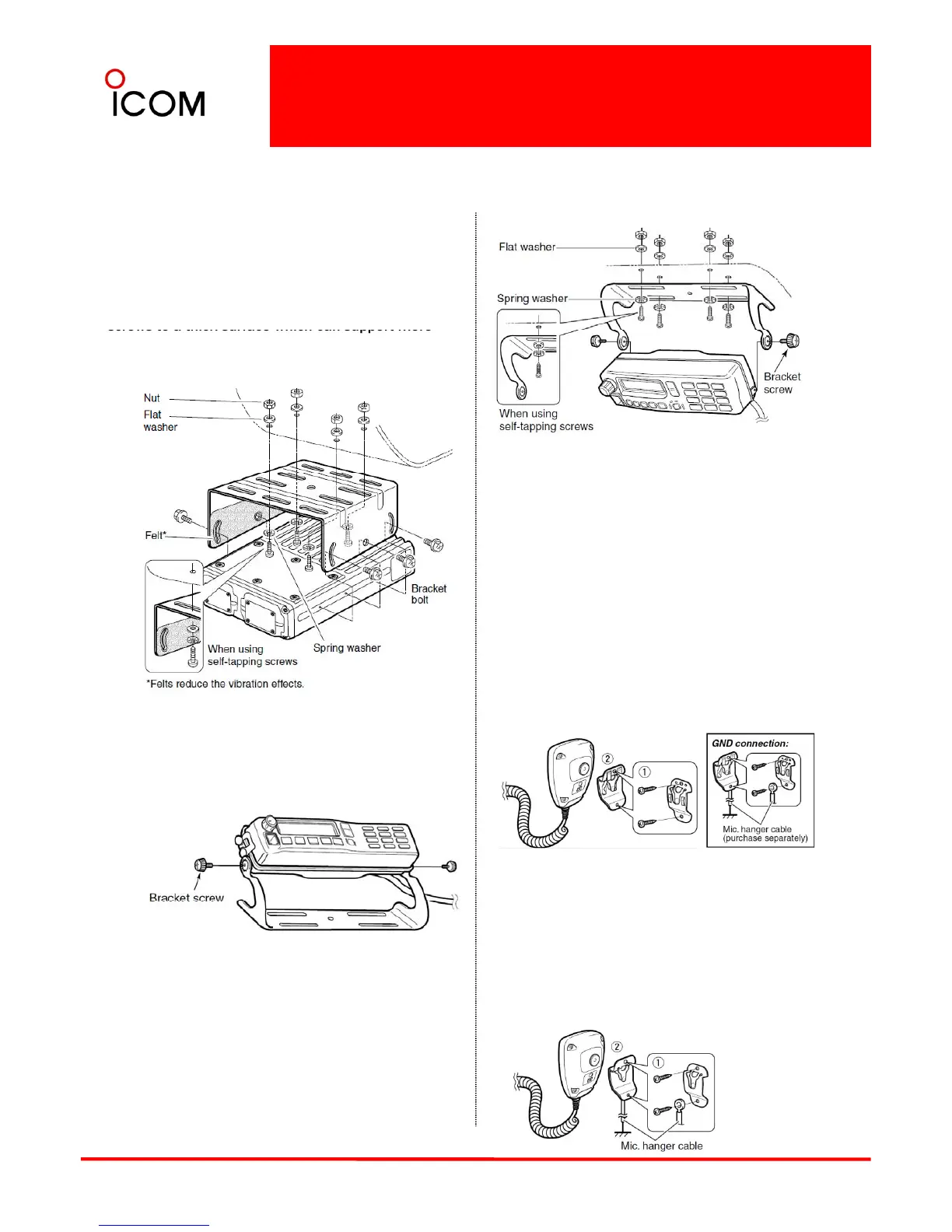

The universal mounting bracket supplied with your
transceiver allows overhead mounting.
• Mount the main unit securely with the 4 supplied
screws to a thick surface which can support more
screws to a thick surface which can support more
than 8 kg (17.63 lb).
■Antenna
A key element in the performance of any
communication system is an antenna. Contact your
dealer about antennas and the best places to mount
them.
■Hand Microphone
Controller
2 types of mounting styles are available
one is
When using with the self ground type microphone
hanger:
1 Attach the microphone hanger with screws.
2 Put on (on-hook) or take off (off-hook) the
microphone.
overhead mounting, and other one is on-board
mounting.
When using with the non-self ground type
Overhead mounting
• Mount the controller securely with the 4 supplied
screws to a thick surface which can support more
than 2 kg (4 40 lb) (Overhead mounting)
1 Attach the microphone hanger and the
microphone hanger cable (supplied with the
transceiver) with screws to the ground line.
2 Put on (on-hook) or take off (off-hook) the
microphone.
