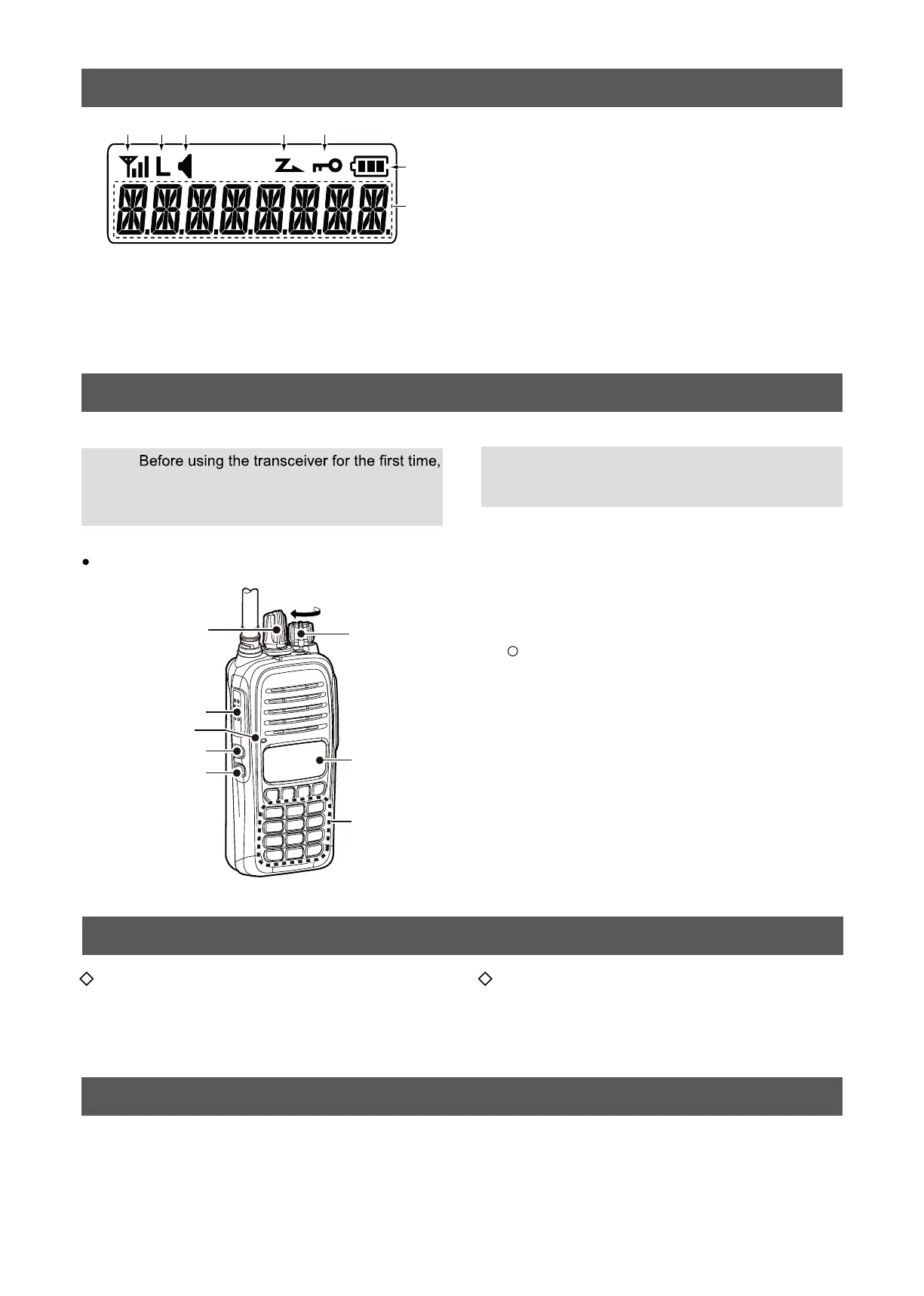

D Turning power ON
Rotate [VOL] to turn ON the power.
[UP]
[PTT]
Microphone
[DOWN]
[VOL]
[ROTARY
SELECTOR]
Function
Display
(LCD)
Key pad
D Receiving and Transmitting
Receiving:
1. Set the operating frequency.
• In the VFO mode:
Enter the operating frequency on the key pad,
or push [UP]/[DOWN] to change the frequency.
• In the Memory mode:
Enter the Memory channel number on the key pad,
or push [UP]/[DOWN] to change the channel.
You can select a Favorite channel (1~16) by rotating
[ROTARY SELECTOR], if programmed.
2. When a call is received, rotate [VOL] to adjust the
audio output level to a comfortable listening level.
Transmitting:
Wait until the frequency is clear to avoid interference.
1. While holding down [PTT], speak at a normal voice level.
2. Release [PTT] to receive.
q rw e
u
y
t
q SIGNAL STRENGTH INDICATOR
Displays the relative receive signal strength.
w LOW POWER ICON
Displayed when low output power (L1 or L2) is selected.
e AUDIBLE ICON
Displayed while in the ‘Audible’ (unmuted) mode.
FUNCTION DISPLAY
BASIC OPERATION
r SCAN ICON
• Displayed when a Scan-tagged channel is selected.
• Blinks while scanning.
t KEY LOCK ICON
Displayed when the Key Lock function is ON.
y BATTERY INDICATOR
•
Displays the remaining battery charge.
• Blinks when the battery requires a charge.
u ALPHANUMERIC READOUT
Displays messages such as the operating frequency,
channel name, Set mode item and so on.
CAUTION:
Transmitting without an antenna may damage the
transceiver.
TIP: To maximize the readability of your transmitted
signal, pause for a second after pushing [PTT] and
hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, and then speak at your normal voice level.
NOTE:
the battery pack must be fully charged for optimum
life and operation. See BATTERY CHARGING de-
scribed in INSTRUCTIONS q .
PROGRAMMING MEMORY CHANNEL
(1) Push [P3] to select the memory mode.
• “MR” appears
(2) Push [CH Up] or [CH Down] to select the memory
channel to be programmed.
(3) Push [P3] again to select the VFO mode.
(4) Set the desired frequency in the VFO mode.
• Push [CH Up] or [CH Down], or push the keys on
keypad to set a frequency.
(5) Push and hold [P3] to program.
• “VF02 MR” appears briefly to confirm that the
frequency is saved.
SETTING A FREQUENCY
Using [CH Up] or [CH Down]
(1) Push [P3] to select the VFO mode.
(2) Push [CH Up] or [CH Down] to set a frequency.
• The frequency changes according to the selected
tuning step.
Using the keypad
(1) Push [P3] to select the VFO mode.
(2) To enter the desired frequency, enter 6 digits, starting
from the 100 MHz digit.
i
To Next Page
