SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
7-1 CABINET PARTS
[MAIN UNIT]
[CHASSIS PARTS]
REF. ORDER. NO. DESCRIPTION QTY.
DS681 5030002790 LCD A0286 1
EP681 8930064210 LCD contact SRCN-2795-SP-N-W 1
MP681 8930063850 2795 LCD holder 1
REF. ORDER. NO. DESCRIPTION QTY.
J41 6910016650 2600 ANT connector 1
SP1 2510001092 Speaker 036D0801B 1
W3 8900010960 Cable OPC-1129 1
MP1 8210021100 2795 Front panel (A) [USA] 1
8210021170 2795 Front panel (C) [Others] 1
MP8 8210020870 2795 SP panel 1
MP10 8930063640 2795 SP rubber 1
MP18 8930063600 2795 MIC cap 1
MP20 8210021090 2795 rear panel 1
MP21 8610011151 2497 BATT lock-1 1
MP22 8930065070 2795 lock plate 1
MP23 8930063630 2795 terminal holder 1
MP24 8930063840 2795 A-terminal 1
MP25 8930063830 2795 B-terminal 1
MP26 8930063820 2795 C-terminal 1
MP31 8830001140 VR nut (J) 1
MP32 8930052280 O ring (AC) 1
MP33 8610012110 Knob N-321 (A) 1
MP35 8830001480 VR nut (O) 1
MP41 8010019740 2795 chassis 1
MP46 8930064200 2795 main seal 1
MP47 8810009510 Screw B0 2X4 NI-ZU (BT) 9
MP51 8830001600 Screw nut (L) 1
MP52 8930065190 O ring (BB) 1
MP66 8930059800 2600 pet sheet 1
MP69 8820001330 Screw M3X3 BS NI 2
MP70 8810010150 Screw B0 2X10 SUS ZK 2
MP71 8820001320 2795 screw 4
MP73 8930063690 O ring (BA) 4
MP74 8810009560 Screw B0 2X6 ZK (BT) 3
MP75 8810009560 Screw B0 2X6 ZK (BT) 1
MP76 8810010150 Screw B0 2X10 SUS ZK 2
MP77 8510016610 2795 shield plate 1
MP80 8930064360 2795 antenna rubber 1
EP8*
MP2
MP1
EP9
EP5
*Design is depend on versions.

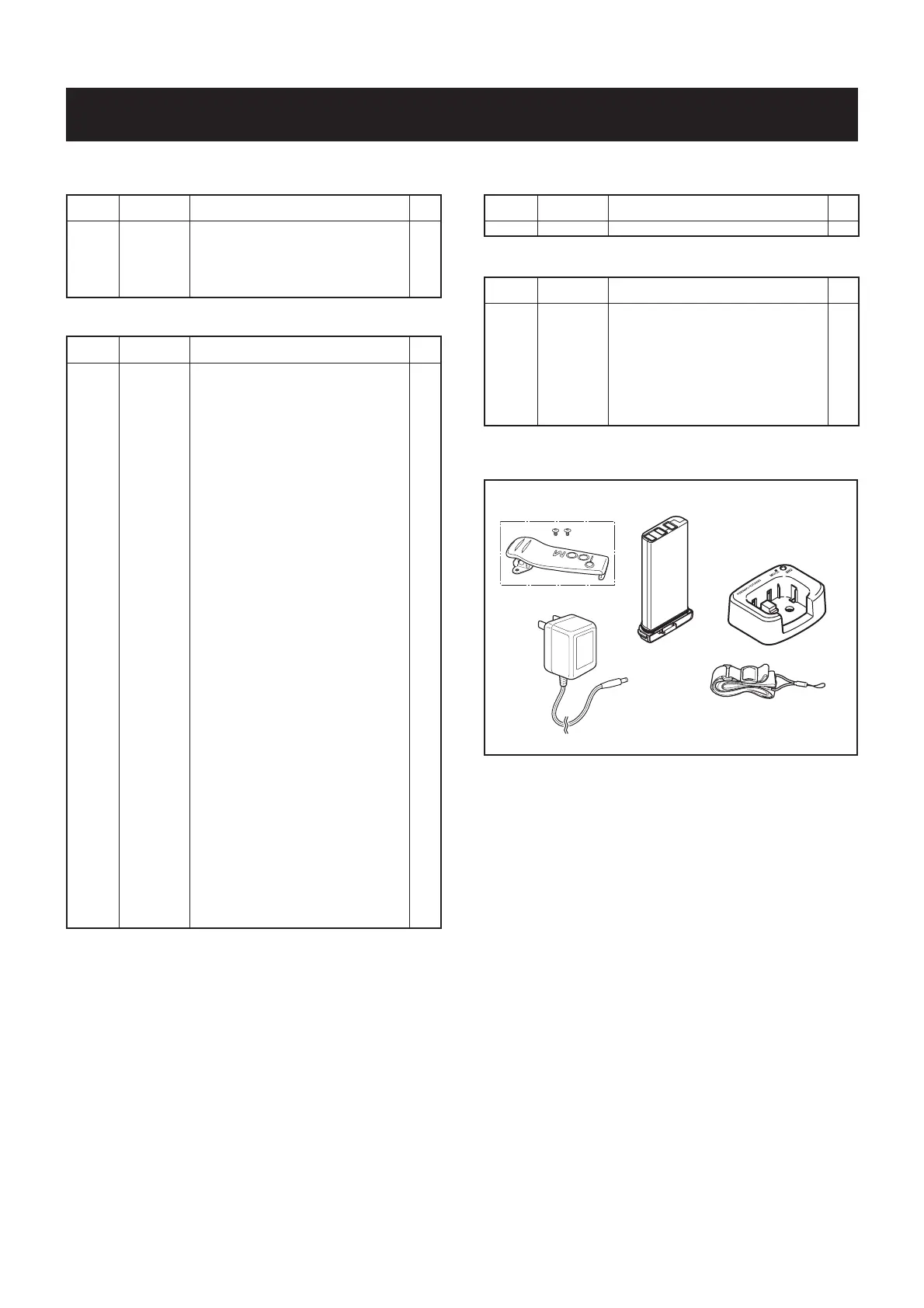

[ACCESSORIES]
REF. ORDER. NO. DESCRIPTION QTY.
EP1 3310003330 FA-S61V 1
EP5
Optional product
BP-224 1
EP8
Optional product
BC-147A [USA] 1
Optional product
BC-147E [GEN], [EUR] 1
EP9
Optional product
BC-158 Except [UK] 1
MP1 8930068180 IC-GM1600 NECK STRAP 1
MP2
Optional product
MB-103 1
[MIC BOARD]
REF. ORDER. NO. DESCRIPTION QTY.
J416 6510024650 246S-550-4P-134 connector 1
Screw abbreviations B0, BT: Self-tapping
ZK: Black
SUS: Stainless
NI-ZU: Nickel-zinc
