Icom IC-M402

2 - 2
•

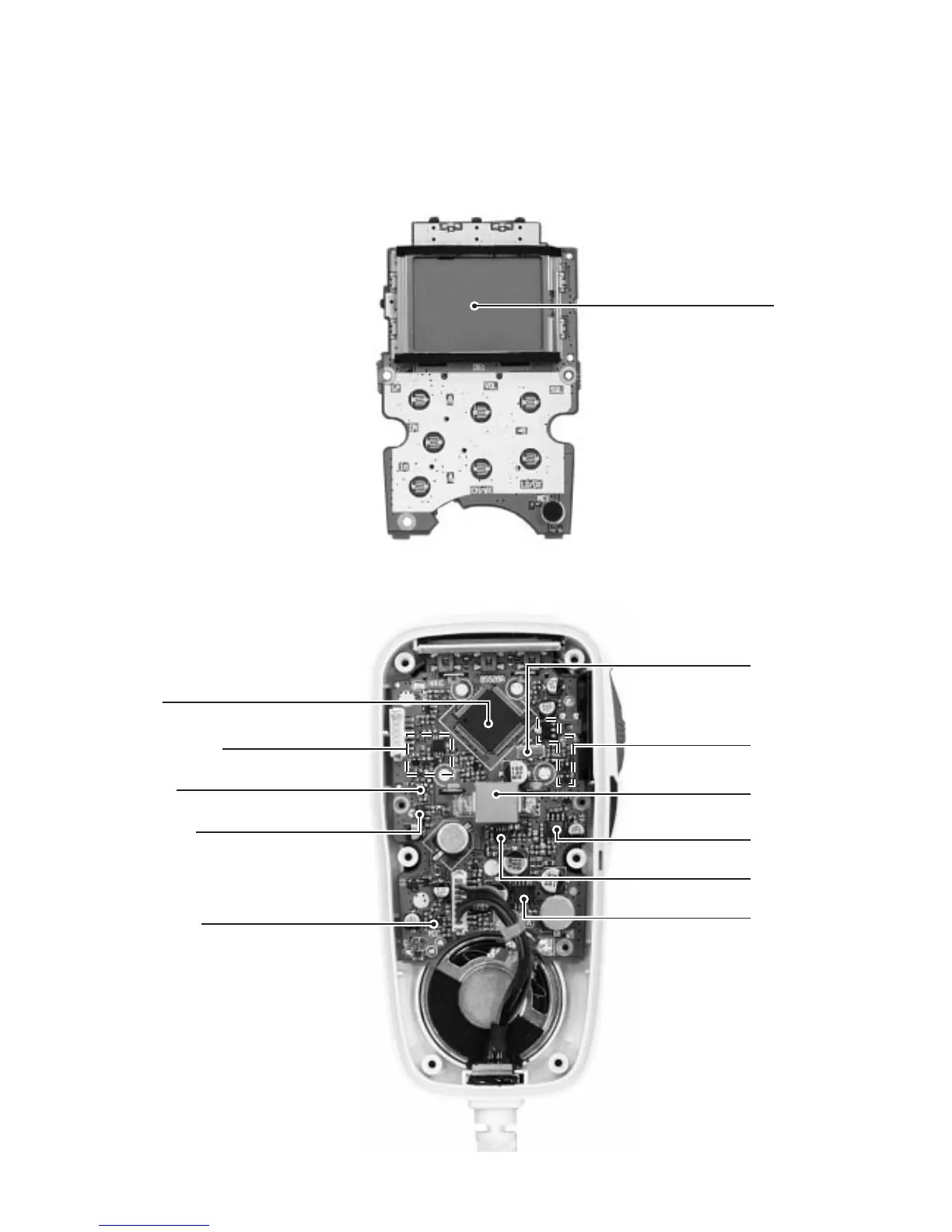

TOP VIEW
•
BOTTOM VIEW
2-2 HM-127 (OPTIONAL UNIT)
LCD
(DS1: A0119)
CPU
(IC1: µPD789405AGK-A30-9EU)
Data buffer circuit
System clock
(X1: CSTCC4.91MG)
8V regulator
(IC6: TA7808F)
Dimmer circuit
Reset IC
(IC7: S-80928ANMP)
MIC amplifier
(IC4: NJM2125F)
5V regulator
(IC5: TA78L05F)
Volume IC
(IC3: M62429FP)
AF/MIC switch
(IC9: TC4W53FU)
AF amplifier
(IC2: TA7368F)
