Icom IC-M402 - Section 3: Disassembly Instructions; Case and Main Unit Removal Procedures

SECTION 3 DISASSEMBLY INSTRUCTIONS
3 - 1
•

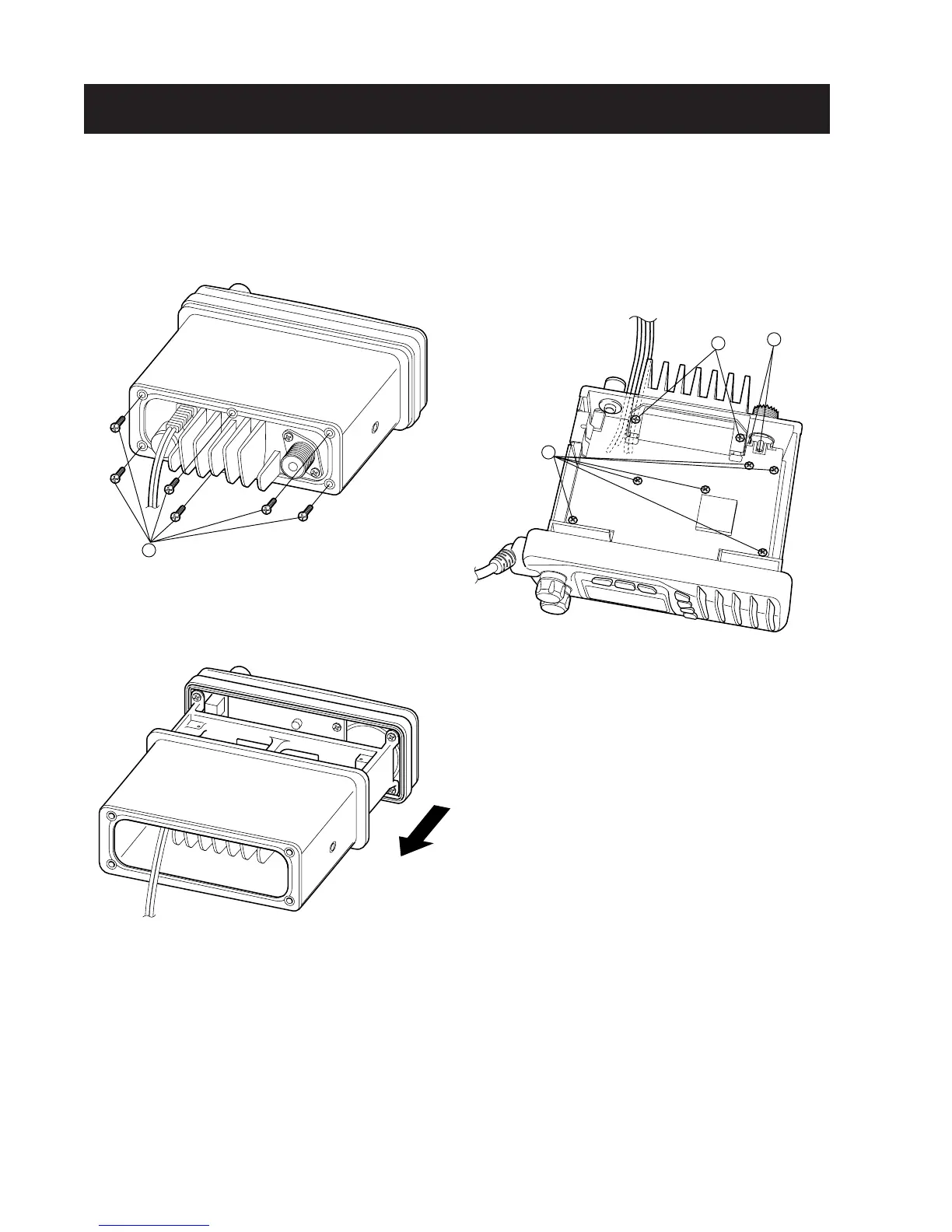

REMOVING THE CASE
1 Unscrew 6 screws, A.
Note: When replacing the screw, 10–12 kg of torque MUST
be applied to ensure water resistance.
•
REMOVING THE MAIN UNIT
1 Unsolder DC cable (4 points) and antenna connector,
B (2 points), as shown below.
2 Unscrew 2 screws, C, and 6 screws, D, to remove the
MAIN unit.
A
C
B
D
2 Slide the case free of the chassis in the direction of the
arrow.
