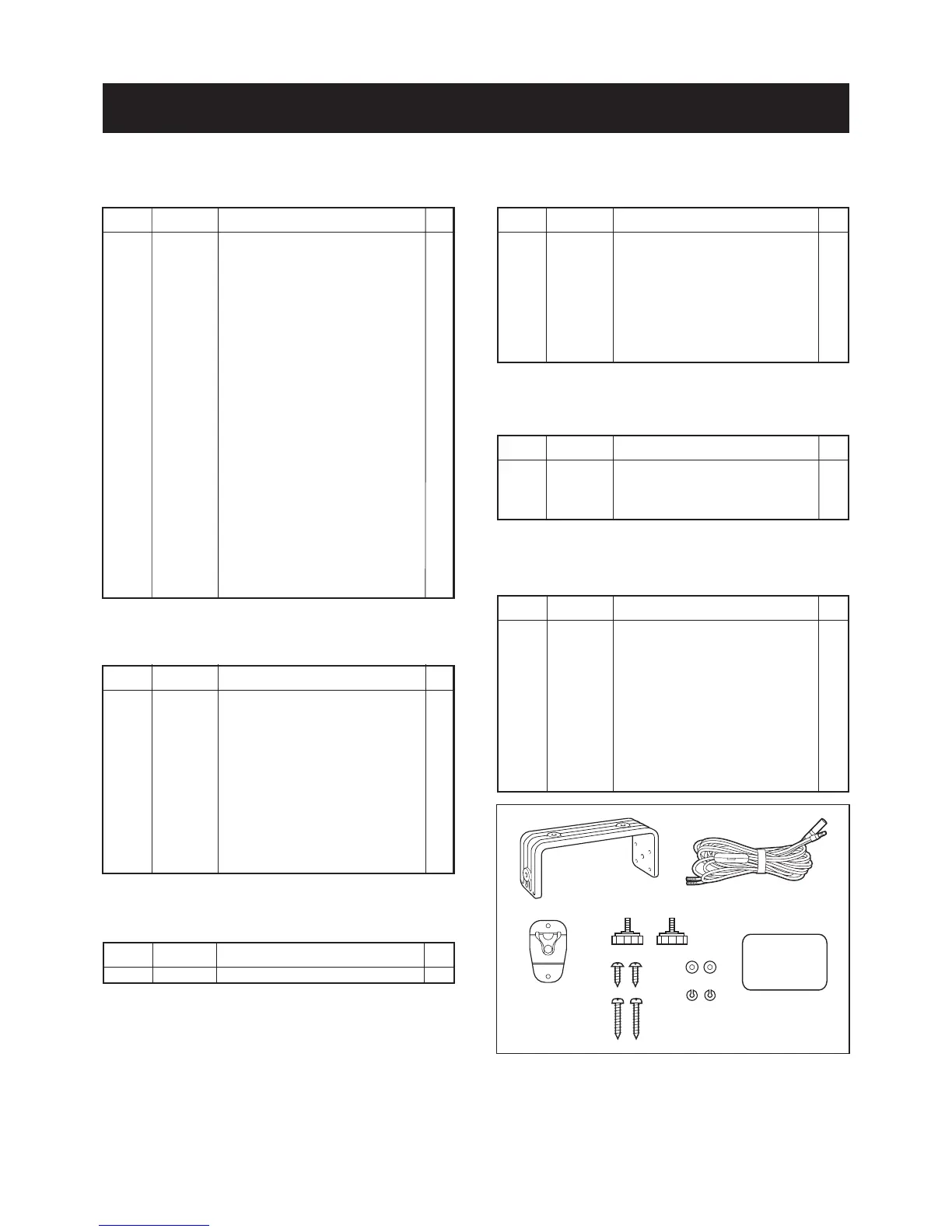

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[VR BOARD]
REF. NO. ORDER NO. DESCRIPTION QTY.
DS1 5030002850 LCD IS08328E 1
EP2 8930066470 LCD contact SRCN-2852-SP-N-W 1
MP1 8930066230 2852 LCD holder 1
MP2 8210020990 2807 reflector 1
MP3 8930066400 2852 LCD filter 1
MP4 8930066390 2852 LCD sheet 1
MP5 8930064860 2807 sponge 1
[CHASSIS PARTS]
[MAIN UNIT]
REF. NO. ORDER NO. DESCRIPTION QTY.
W4 8900014020 OPC-1439 <TJM> 1
W5 8900014020 OPC-1439 <TJM> 1
MP2 8510014950 2601 VCO cover 1
Screw abbreviations A0, B0, BT: Self-tapping
PH: Pan head
NI: Nickel
SUS: Stainless
NI-ZU: Nickel-Zinc
[ACCESSORIES]
[FRONT UNIT]
MP2
MP1
MP3
WARNING
W1
MP8
MP4
MP5
MP6
MP7
7-1 IC-M422
REF. NO. ORDER NO. DESCRIPTION QTY.
MC1 0800007890 Mocrophone HM-150B ACC <FG> [BLK] 1
0800007900 Mocrophone HM-150SW ACC <FG> [SW] 1
SP1 2510001240 Speaker 045P0803 1
MP1 8210021840 2807 front panel (B) [BLK] 1
8210021850 2807 front panel (C) [SW] 1
MP21 8930052280 O-ring (AC) 2
MP22 8930060490 2685 F-bush plate 1
MP23 8930055840 2490 grounding spring 1
MP25 8810008660 Screw PH B0 3X8 NI-ZU (BT) 4
MP31 8610011370 Knob N-312 [BLK] 2
8610012140 Knob N-312(C) [SW] 2
REF. NO. ORDER NO. DESCRIPTION QTY.
J1 6510004880 Connector MR-DSE-01 1
W1 8900014000 Cable OPC-1405 <TJM> 1
W2 8900014090 Cable OPC-1489 <AI> 1
MP1 8510016590 Case 2807 CASE [BLK] 1
8510016620 Case 2807 CASE(A) [SW] 1
MP2 8830001730 Screw ultra sert UD-45058 NI 2
MP4 8930055070 2438 sheet 1
MP5 8930064040 2807 R-packing seal 1
MP11 8010020100 2852 chassis 1
MP12 8930034300 1542 ANT seal <KN> 1
MP13 8810002950 Screw M3x6 SUS 2
MP14 8930064350 2807 R-bush plate 1
MP16 8930064390 2807 module plate 1
MP17 8510016700 2807 module cover 1
MP19 8810008660 Screw PH B0 3x8 NI-ZU (BT) 2
MP20 8950000180 Cable tie-80 1
MP21 8930066630 2852 IC clip 1
MP22 8930067170 2852 B-IC clip 1
MP23 8810008660 Screw PH BB0 3x8 NI-ZU (BT) 6
MP40 8810004540 Screw M3x8 SUS 4
MP41 8930064030 2807 F-packing seal 1
MP42 8810004700 Screw PH A0 3x16 SUS 4
MP47 8930049040 Isolating sheet (FQ) 1
MP48 8930055040 2438 cap <KN> 1
[LOGIC BOARD]
REF. NO. ORDER NO. DESCRIPTION QTY.
W1 8900014010 OPC-1442 1
REF. NO. ORDER NO. DESCRIPTION QTY.
W1 8900009040 OPC-891 1
MP1 8950005110 2289 mic hanger 1
MP2 8010019790 2807 mobile bracket [BLK] 1
8010019810 2807 mobile bracket (A) [SW] 1
MP3 8610010561 2040 screw knob bolt-1 <KN> [BLK] 2
8610011260 2040 knob bolt(B)-1 <KN> [SW] 2
MP4 8810004700 Screw PH A0 3x16 SUS 2
MP5 8810001490 Screw PH A0 5x20 SUS 2
MP6 8850000180 Flat washer M5 SUS 2
MP7 8850000500 S-washer M5 SUS 2
MP8 8310050900 2438 caution sticker 1
