CONNECTIONS AND MAINTENANCE
New2001
Mounting the transceiver ■
Using the supplied mounting bracket D
The universal mounting bracket supplied with your transceiv-
er allows overhead or dashboard mounting.
Mount the bracket securely to a surface which is more than q
10 mm thick and can support more than 5 kg using the 2
supplied screws (5 × 20 mm).
w Attach the transceiver to the bracket so that the face of the
transceiver is at 90° to your line of sight when operating it.
KEEP the transceiver and microphone at least 1 meter
away from the vessel’s magnetic navigation compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.

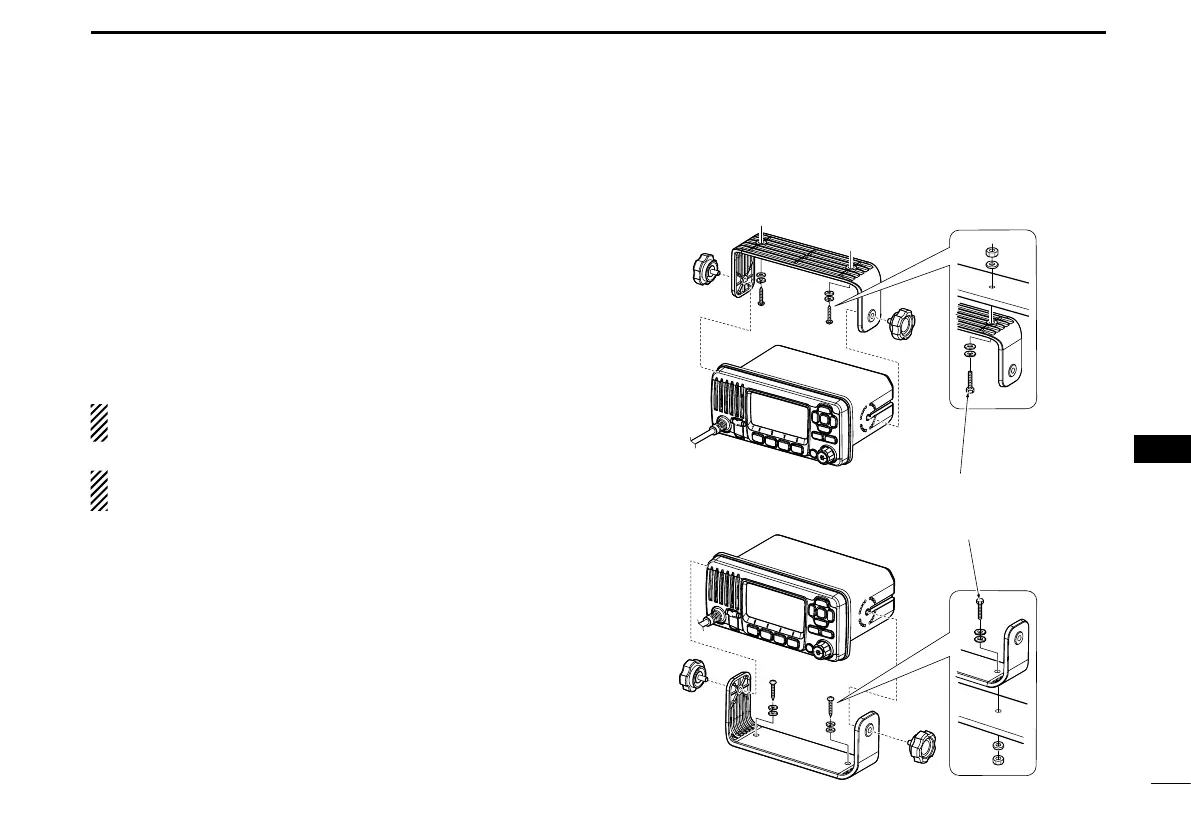

• OVERHEAD MOUNTING
• MOUNTING ON THE BOARD
These bolts are shown a
mounting example only.
Not supplied with accesso-
ries.
