Icom IC-PW1 Service Manual

W1 8900007580 Cable OPC-730 1
W2 8900002260 Cable OPC-104 B 1
W3 8900002270 Cable OPC-125 B 1
W4 8900007290 Cable OPC-718 1
EP1 6510020330 Terminal 5.5-5 pin 1
EP2 6910010480 DL-7C OR-31-15-19H [USA], [EUR] 10
MP1 8310039530 1900 front plate 1
MP3 8930043080 Rubber (hole bush) 2
MP4 8810004430 Screw PH M3 × 6 ZK [EUR-1] only 2
MP6 8950001980 JIG cable tie-140 [EUR-1] only 2
MP7 8310045230 1900 Cable caution rabel(BJ) [EUR-1] only 1
6 - 8
[MAIN UNIT]
J1 6510003080 Connector RT01T-1.0B 1
J3 6510003450 Connector B09B-EH-S 1
J4 6510003480 Connector B12B-EH-S 1
J6 6510003410 Connector B05B-EH-S 1
J8 6510003490 Connector B13B-EH-S 1
J9 6510003410 Connector B05B-EH-S 1
J10 6510003450 Connector B09B-EH-S 1
J14 6510017650 Connector 52045-1045 1
J17 6510003390 Connector B03B-EH-S 1
J18 6510003410 Connector B05B-EH-S 1
J19 6510003420 Connector B06B-EH-S 1
J20 6510003430 Connector B07B-EH-S 1
J21 6510003440 Connector B08B-EH-S 1
J22 6510003390 Connector B03B-EH-S 1
S3 2260002220 Switch S-1010A 1
S4 2260002220 Switch S-1010A 1
MP1 8510000230 220 Shield case 1
MP2 8510000241 220 Shield case cover-1 1
MP3 8510005581 644 Shield plate-1 1
MP4 8510011820 1900 shield plate 1
RL2 6330001320 Relay AHY103 1
RL3 6330001320 Relay AHY103 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[L-NET BOARD]
EP1 6910011340 Terminal OT-010 M3 1
RL1 6330000570 Relay AR-39251 1
RL2 6330000570 Relay AR-39251 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[H-NET BOARD]
EP2 6910011340 Terminal OT-010 M3 1
RL1 6330000570 Relay AR-39251 1
RL2 6330000570 Relay AR-39251 1
RL3 6330000570 Relay AR-39251 1
RL4 6330000570 Relay AR-39251 1
RL5 6330000570 Relay AR-39251 1
RL6 6330000570 Relay AR-39251 1
RL7 6330000570 Relay AR-39251 1
RL8 6330000570 Relay AR-39251 1
RL9 6330000570 Relay AR-39251 1
RL10 6330000570 Relay AR-39251 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[C-NET BOARD]
RL1 6330001440 Relay VS-12TBU-VD3 1
RL2 6330001440 Relay VS-12TBU-VD3 1
RL3 6330000570 Relay AR-39251 1
RL4 6330001490 Relay VB-12MBU-UC (UL3) 1
RL5 6330001490 Relay VB-12MBU-UC (UL3) 1
RL6 6330001490 Relay VB-12MBU-UC (UL3) 1
RL7 6330000570 Relay AR-39251 1
RL8 6330001490 Relay VB-12MBU-UC (UL3) 1
RL9 6330001490 Relay VB-12MBU-UC (UL3) 1
RL10 6330001490 Relay VB-12MBU-UC (UL3) 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.

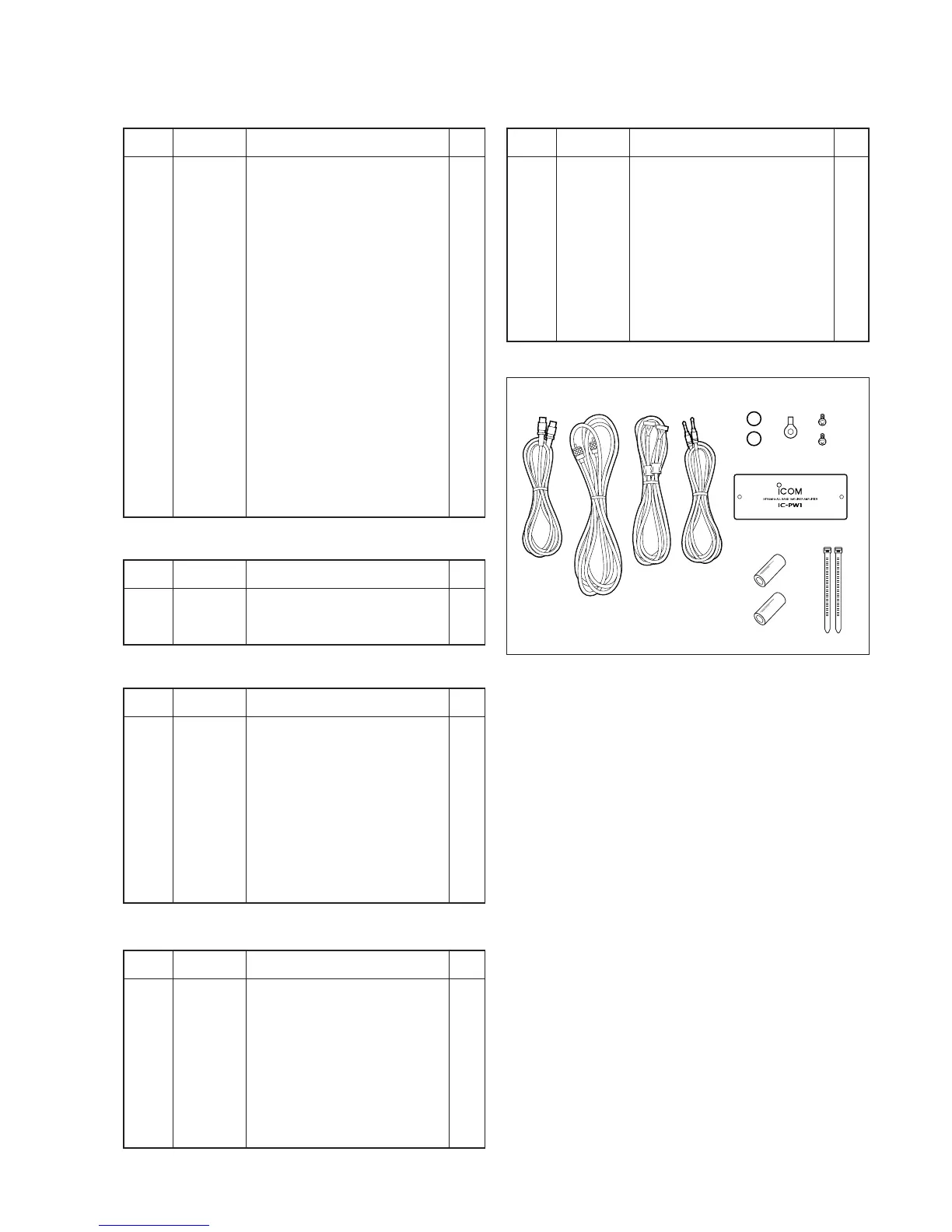

EP1 MP4MP3W2 W3 W1 W4
MP1
EP2 MP6
QTY.
[ACCESSORIES]
REF NO.
ORDER
NO.
DESCRIPTION
