8 - 2

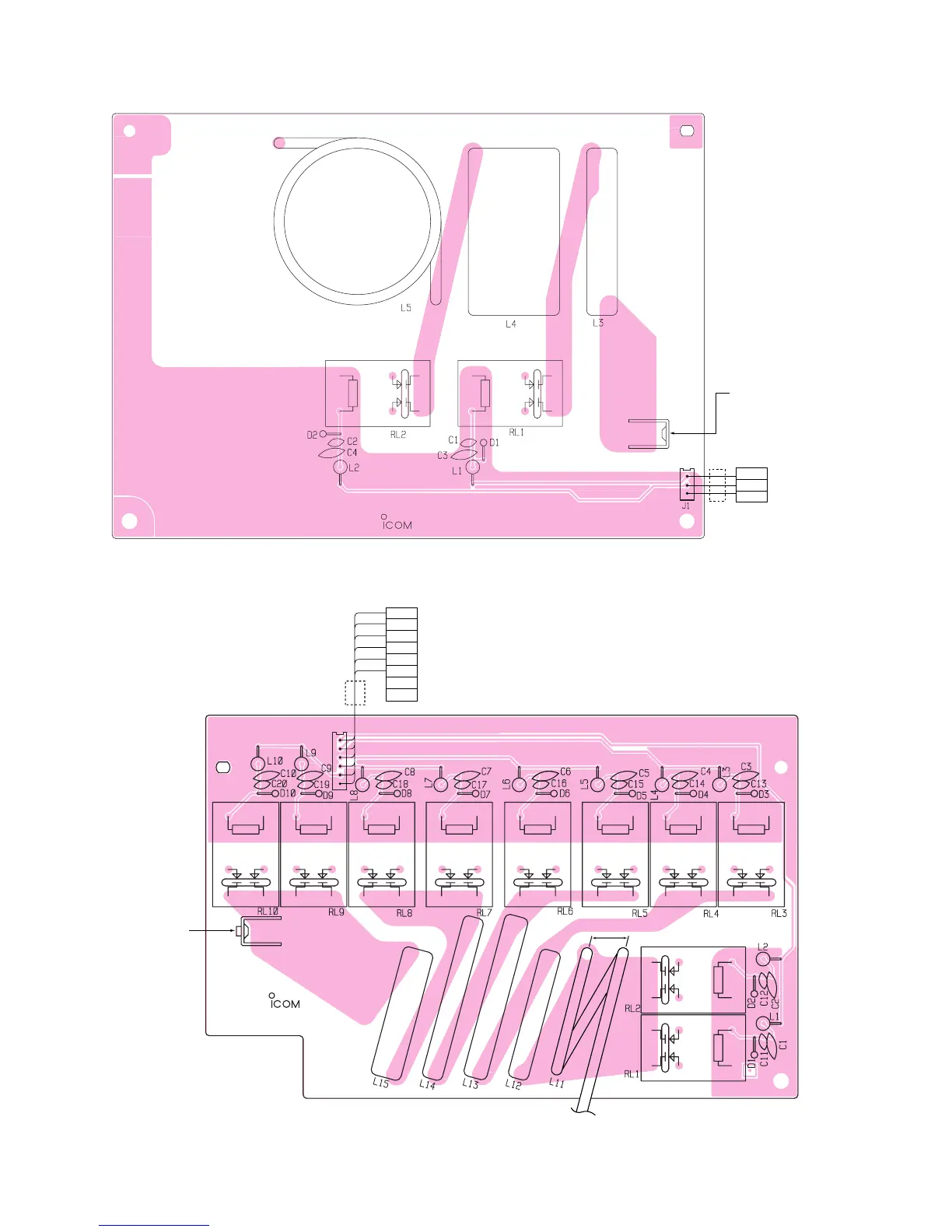

8-3 L-NET BOARD
EP1
TO
H-NET BOARD
EP2
TO
MAIN
UNIT
J22
1
2
3
P1
EP3
7M
35M
GND
7M
35M
GND
LHW
8-4 H-NET BOARD
20mm
EP2
EP1
J1
P1
1
1
2
3
4
5
6
7
8
TO MAIN UNIT
J21
TO C-NET BOARD
LHW
50M
28M
21M
14M
10M
GND
NC
NC
TO
L-NET
BOARD
EP1
