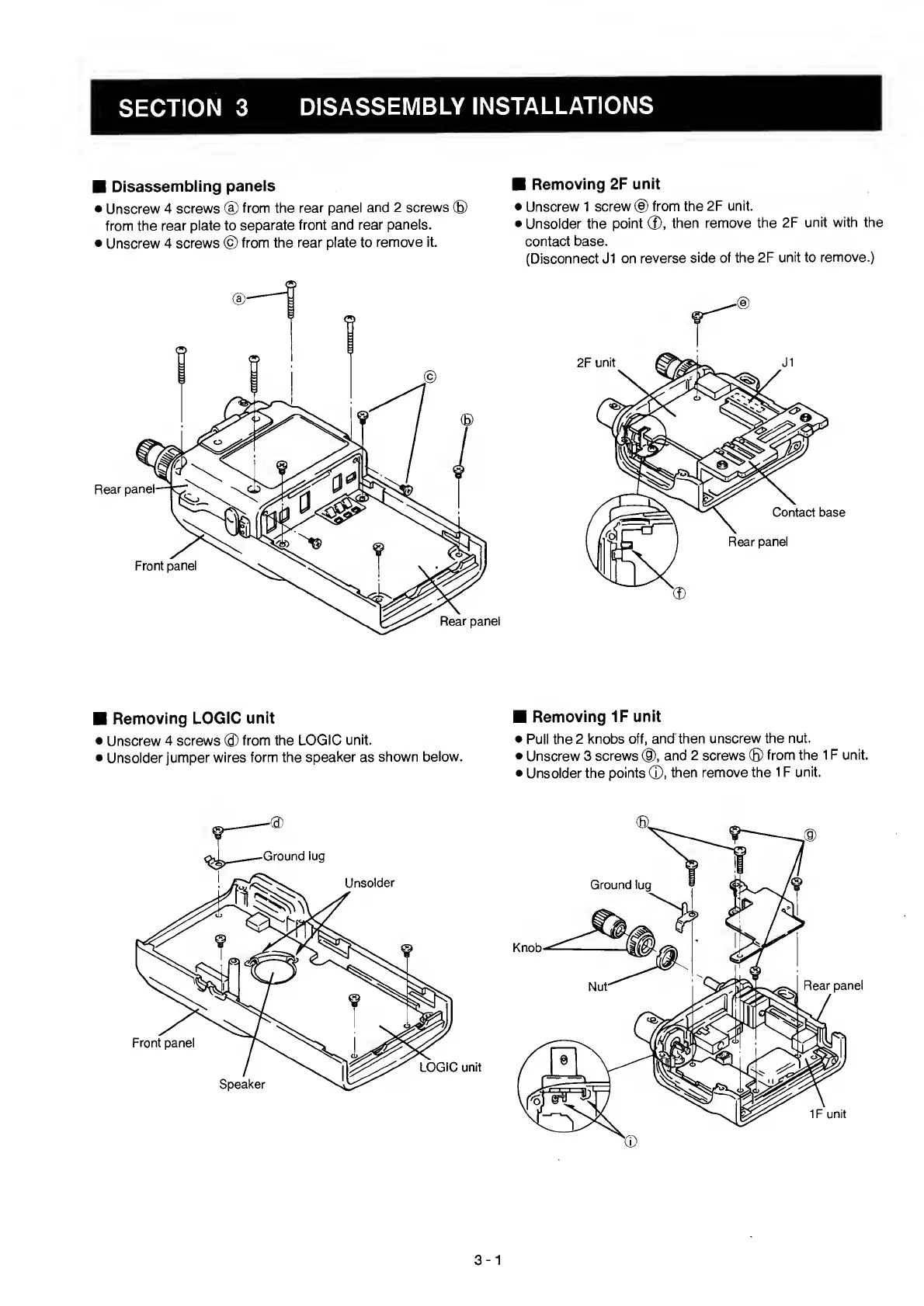

Disassembling
panels
Unscrew 4
screws
(a)
from the
rear panel
and 2 screws
(
from the
rear plate to
separate
front and
rear panels.
Unscrew 4
screws
©
from the
rear plate to
remove it.
Rear
panel
Front
panel
I
Removing 2F
unit
I
Unscrew 1
screw
©
from the
2F unit.
I
Unsolder the
point
0
,
then remove
the 2F
unit with the
contact base.
(Disconnect J1
on
reverse
side of the 2F
unit to
remove.)
Contact
base
Rear panel
I
Removing
LOGIC unit
Unscrew
4 screws
(
3
)
from the
LOGIC
unit.
*
Unsolder
jumper wires
form the
speaker
as
shown
below.
Removing 1F
unit
Pull
the 2 knobs
off, and then
unscrew the nut.
Unscrew 3
screws
(§),
and 2 screws
®
from the 1 F unit.
Unsolder the
points
®,
then remove the
1
F
unit.
Ground lug
Front panel
LOGIC unit
Ground lug
Rear
panel
1
