Icom IC-W2E - Battery Pack Removal and Battery Case

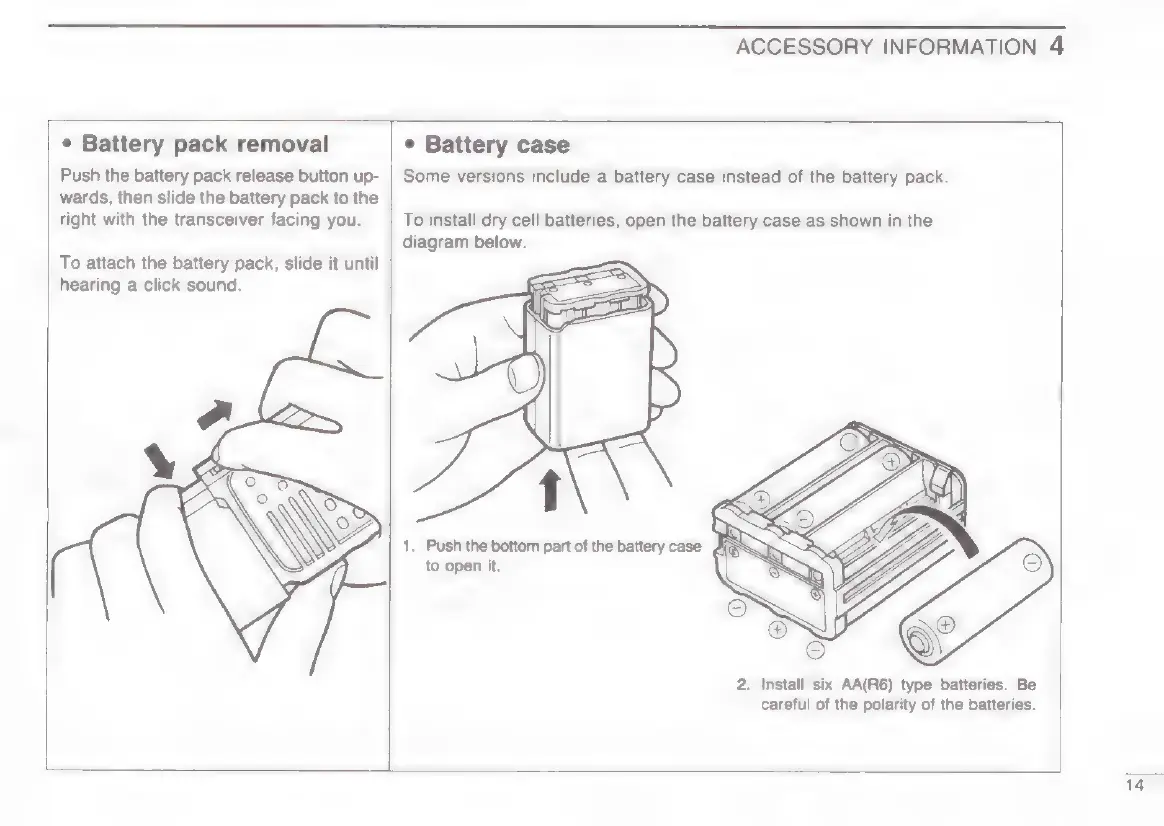

¢ Battery pack removal
Push the battery pack release button up-
wards, then slide the battery pack to the
right with the transceiver facing you.
To attach the battery pack, slide it until
hearing a click sound.
ACCESSORY INFORMATION 4
e Battery case
Some versions include a battery case instead of the battery pack.
To install dry cell batteries, open the battery case as shown in the
diagram below.
1. Push the bottom part of the battery case
to open it.
2. Install six AA(R6) type batteries. Be
careful of the polarity of the batteries.
