B UT-63 installation
The UT-63 is already installed in the IC-W2A U.S.A version.
For other versions, an optional UT-63 must be purchased
separately.
1) Turn power OFF, then remove the battery pack from the
transceiver.
2) Unscrew 5 screws from the rear of the transceiver.
3)
Unscrew
2
screws
from
the
side
of
the
transceiver.
4) Remove the rear panel.
5) Pull out the terminal board.

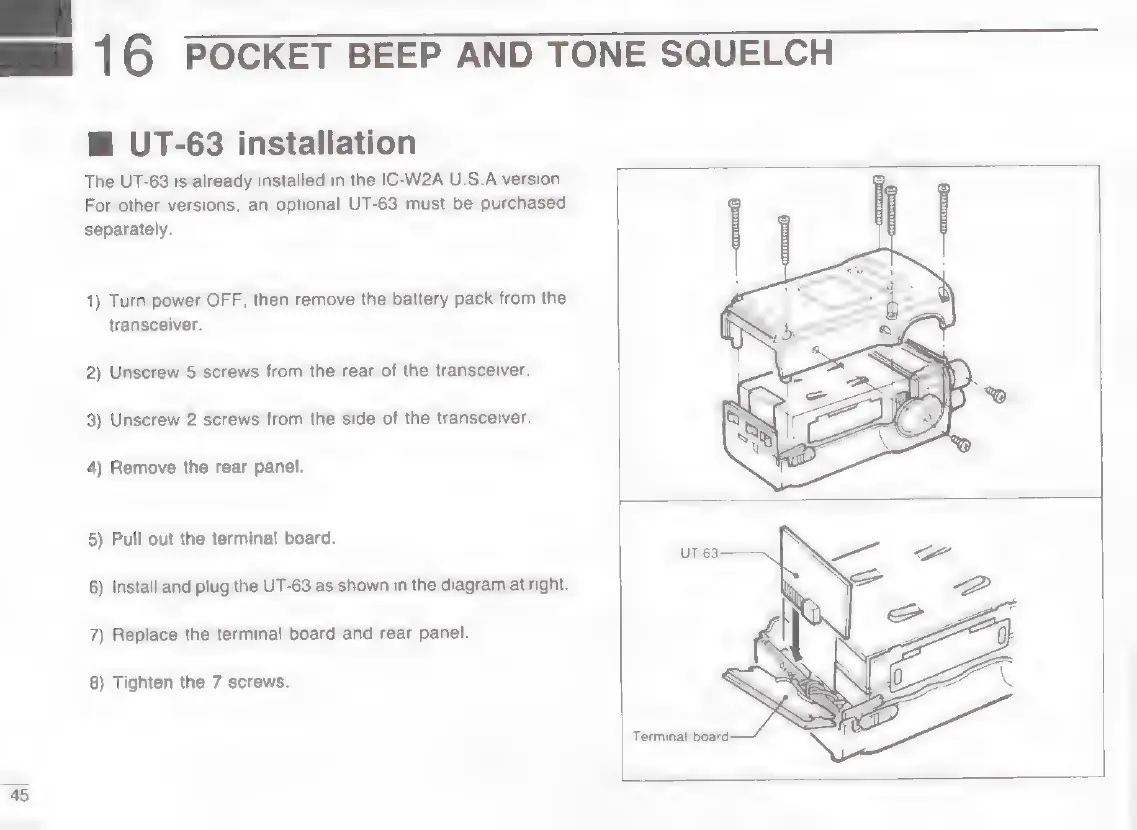

6) Install and plug the UT-63 as shown in the diagram at right.
7) Replace the terminal board and rear panel.
8) Tighten the 7 screws.
