Additional Information

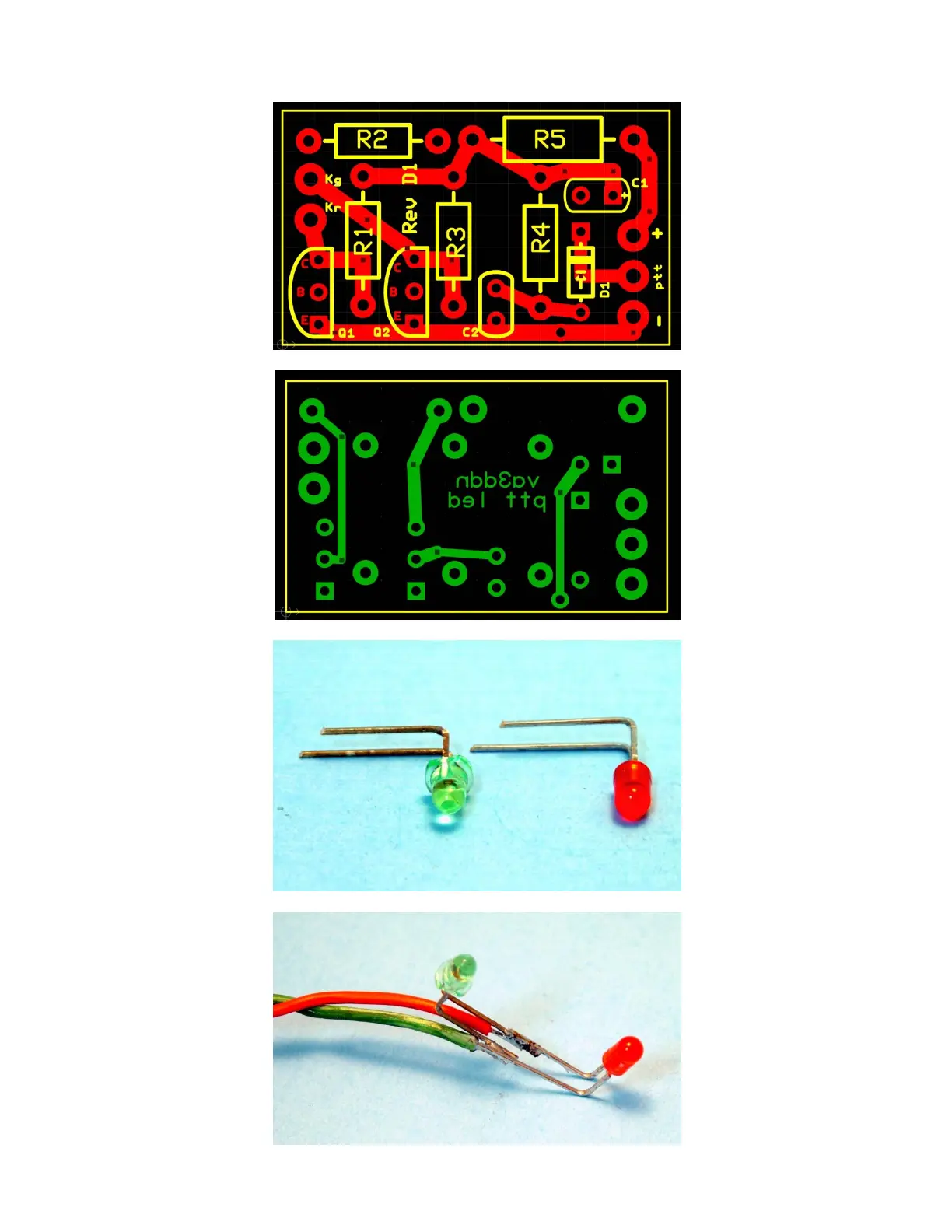

Note: Pin-out outline of
Q1,Q2, as shown on pcb
matches 2N4401 &
2N3904.
BC547B & 2N2222 may
require mounting 180 deg.
Please verify pin-out of the
transistors you have per
manufacturer data-sheet.
