Top Panel Layout

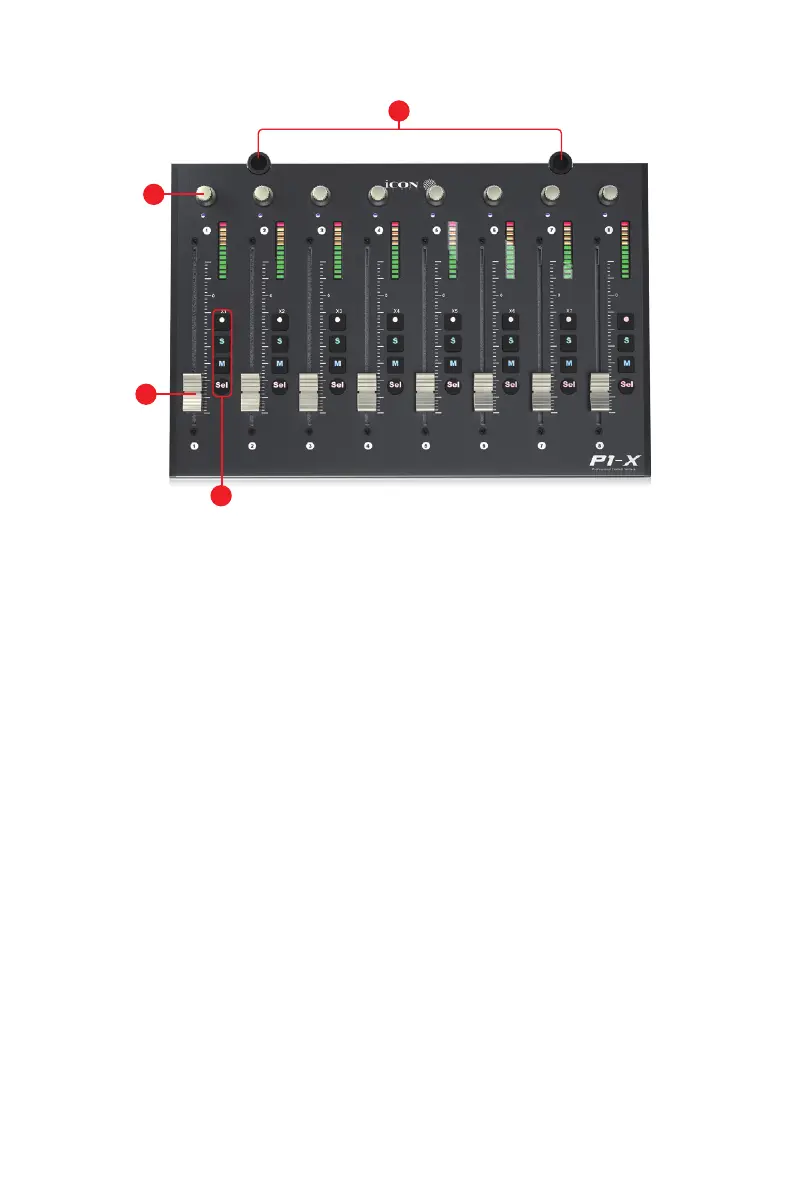

1. Faders
 The eight ergonomically designed, motorized faders are generally used for
controlling the track volume of the DAW. Depending on your DAW, you may use
the “Flip” button to swap the rotary encoders and the fader functions. This may
be useful if making very intricate moves for PAN or plug-in parameter values
commonly executed using the rotary encoders. The 12 bit resolution faders are
capable of very detailed movement.
 Any automation recorded in a project will be reected by the fader positions.
All faders are touch sensitive and allow the user to override automation the
moment a fader is touched.
2. Recording channel control buttons section

REC button -
Activate and deactivate the recording state of the associated
channel. The switch will light red when the channel is armed.


SOLO button -
Activate/de-activate the solo state of the associated channel.
The switch will light green when the channel solo state is on and other channels
will be muted.


MUTE button -
Activate and deactivate the mute state of the associated
channel. The switch will light blue when the channel is muted.
SEL button -
Select the channel
NOTE: The P1-M is a universal DAW controller (i.e. not designed for one specic DAW).
Functions will operate slightly di󰀨erently between DAWs. Please refer to your DAW manual for
each function.
