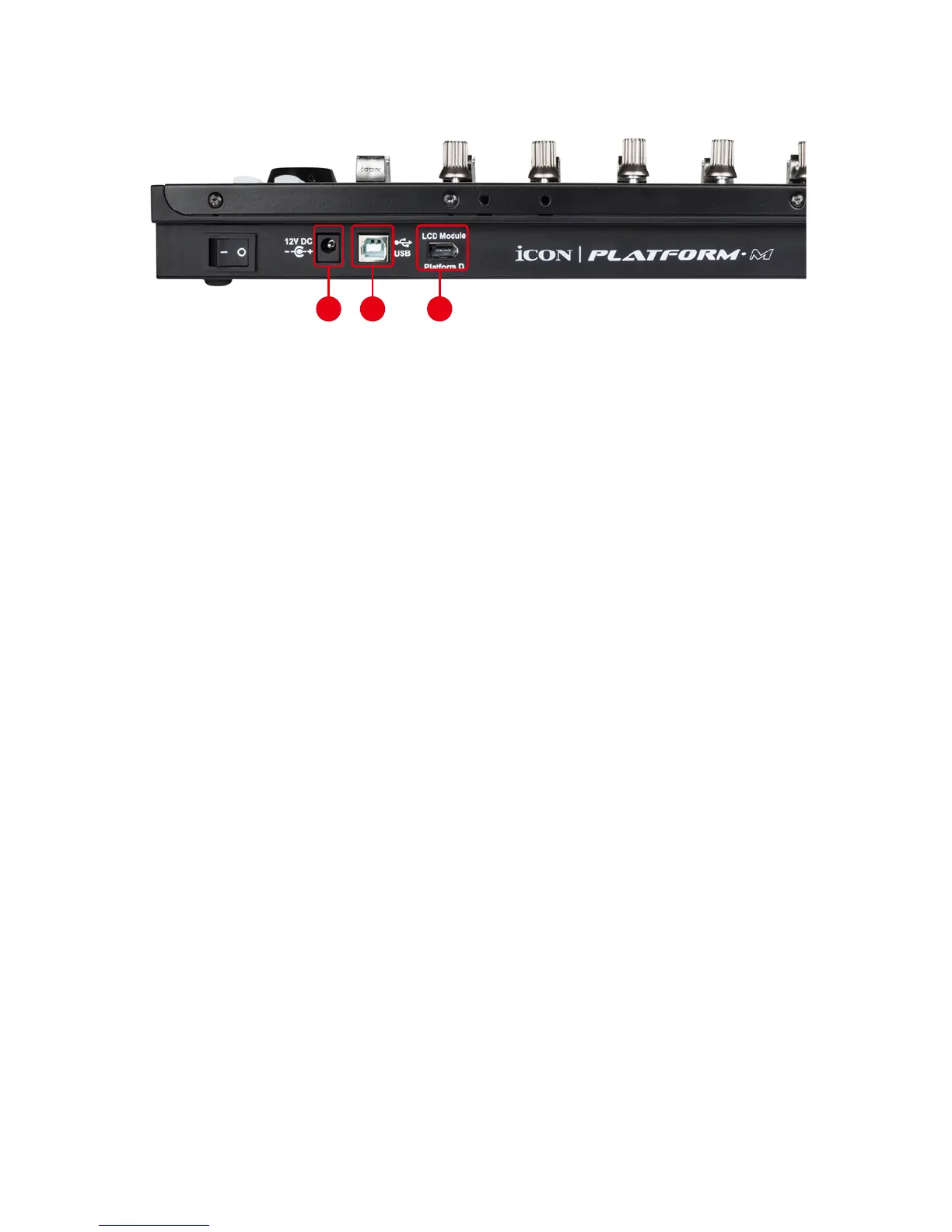

Side Panel Layout

1. USB port
 Functions as a MIDI port to your notebook (or computer) and compatible
 software.
2. LCD Module (Platform D)
 Connect your Platform D here with the provided cable.
3. 12V/2.5A power adaptor
 Connect the provided power adaptor here.
 (Note: Platform M is not able to work without the provided power adaptor
 connected. The USB bus power is not able to provide sufcient power supply for
 Platform M.)
