ICON Qcon ProX - Rear Panel Layout; Connectors and Ports; Power and Mode Selection

12

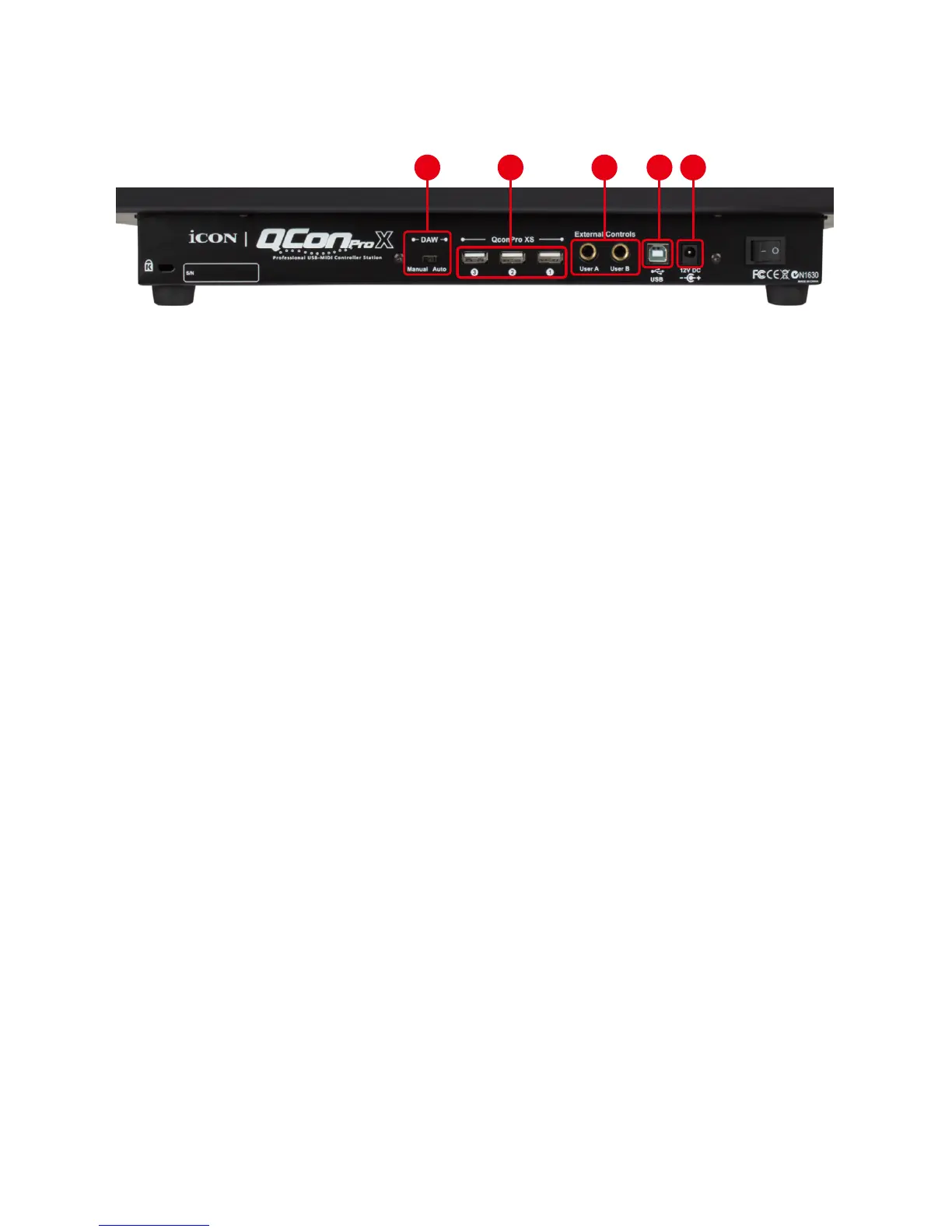

Rear Panel Layout
14 12 13 159
12. User A / User B RCA connectors
 These RCA connectors are able to connect to foot pedals to activate your
selected functions. To set their parameters, select USER A and USER B
parameters at Mackie control mode.
13. USB port
 Connect your Qcon Pro X to your Mac/PC via this USB port.
14. 3 x Extension ports
 Connect your extension unit such as QconProXS to these ports.
9. Auto/Manual switch
 Switch to select trigger DAW mode automatically or manually. For detail, please
refer to P.13.
15.12V/2.5A power adaptor
 Connect the provided power adaptor here.
 (Note: Qcon ProX is not able to work without the provided power adaptor
connected. The USB bus power is not able to provide sufcient power supply for
Qcon ProX.)
