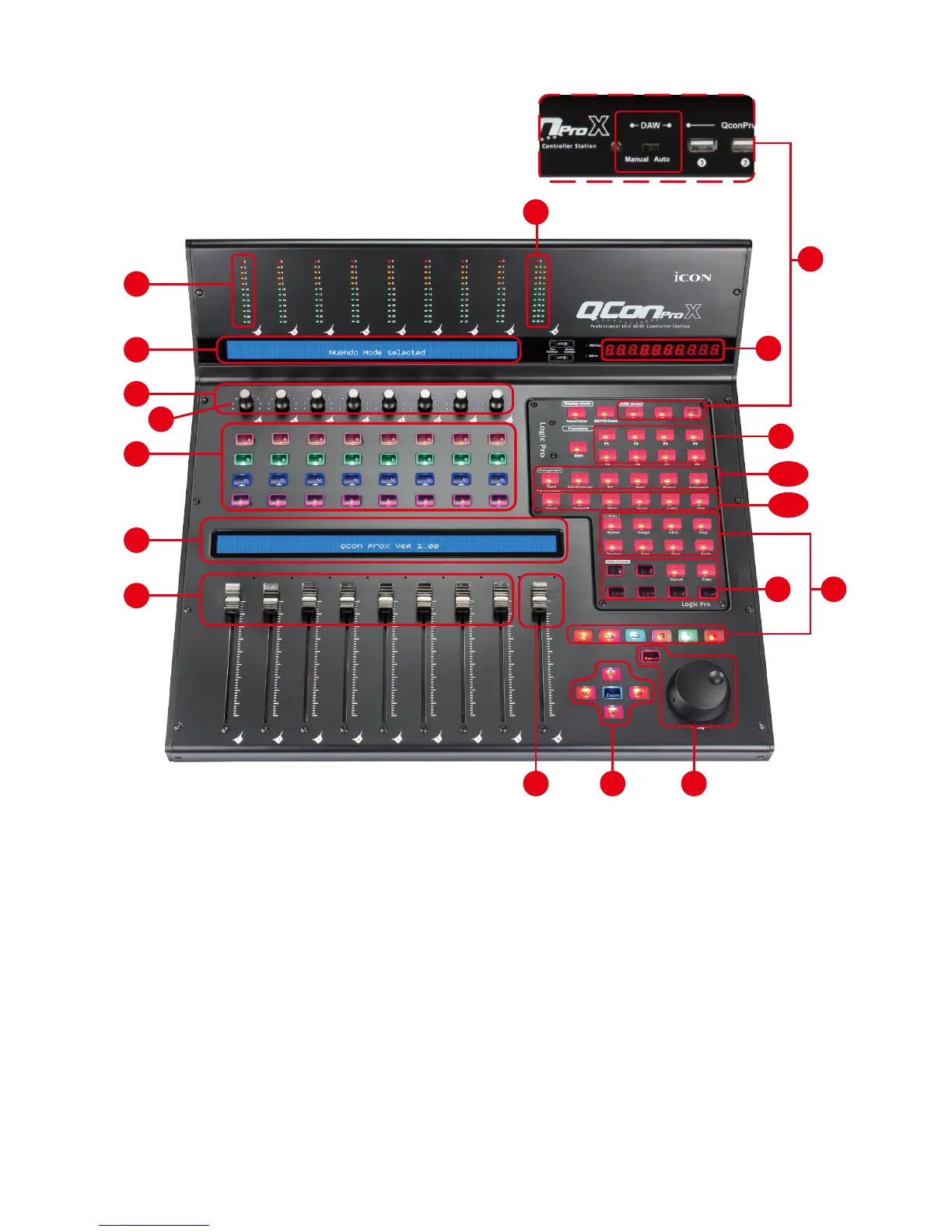

Top Panel Layout
1. Upper LCD Display
The two-line backlit LCD display shows the parameter values as you adjust them
and also provides feedback about channel selections, operating modes, and
more.
2. Lower LCD Display
The two-line backlit LCD display shows the channel name.
3a. Channel faders
The eight 100mm motorized faders are generally used for controlling the track
volume of your DAW. Depending on your DAW, you may use the “Flip” button to
Note: Function operates slightly difference between DAWs. Please refer to your
DAW manual for each function and overlap the provided labeling template according
to your current using DAW. The following description is based on the functions that
operate in Apple Logic Pro.
