ICON Utrack Pro - Front Panel Layout

COMP DIRECT
OUT
MIX
HP
MONITOR

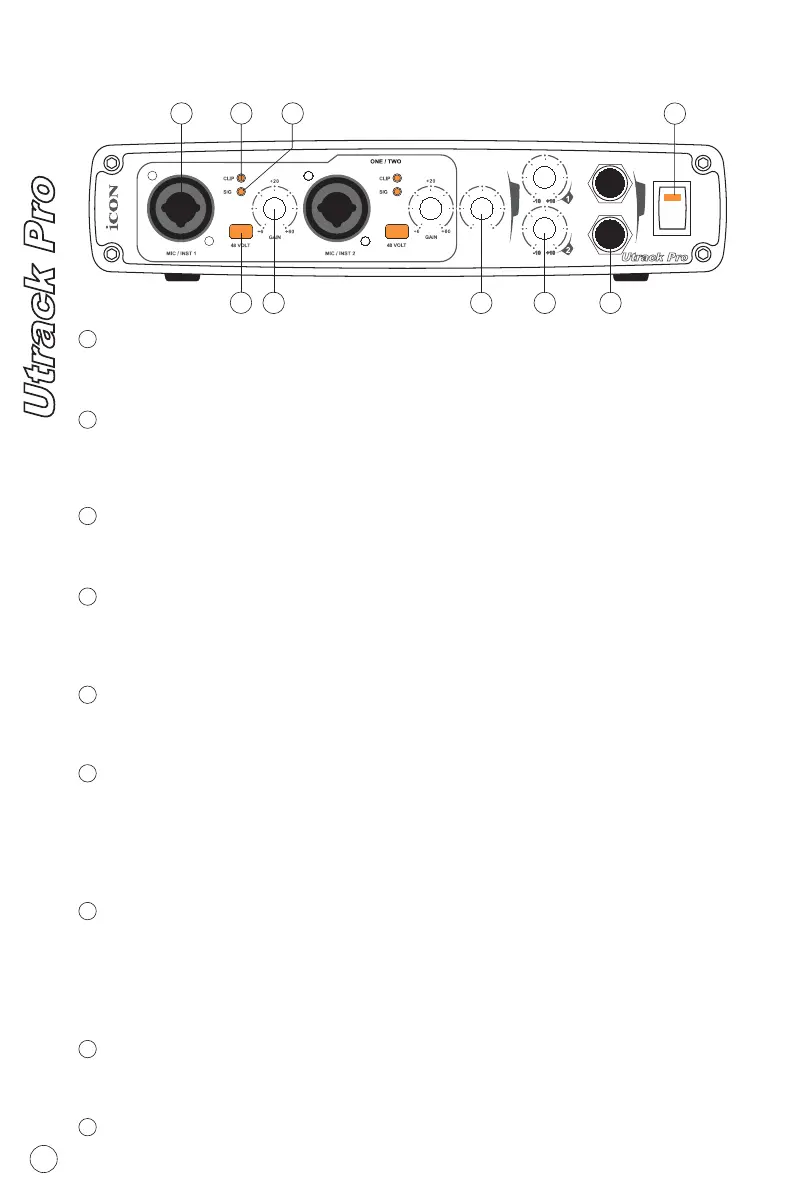

Front Panel Layout
MIC/INST INPUTS
CLIP LED
SIGNAL LED
48V PHANTOM POWER SWITCH
INPUT GAIN LEVEL CONTROL
HARDWARE / PC MONITORING CONTROL
HEADPHONE OUTPUTS
HEADPHONE LEVEL CONTROLS
POWER SWITCH
Unbalanced Instrument and MIC level inputs. These hybrid connectors
will accept a standard three-pin XLR plug or a 1/4" TS connector.
When lit, this LED indicates clipping input level at the associated
MIC/INST input. The LED will illuminate when the signal is 3dB below
the clipping point.
When lit, this LED indicates the presence of an audio signal at the
associated MIC/INST input.
When this switch is in the IN position, +48V phantom power is
supplied to the XLR input. This phantom power circuit is suitable for
most condenser microphones.
This potentiometer controls the input level of its associated analog
MIC/Instrument/Line input.
Each of these output jacks accepts a standard 1/4" stereo TRS
headphone connector. The program signal is identical on both outputs,
with individual level regulated by the HEADPHONE LEVEL
CONTROLS. The default source selection for the headphone output is
identical to line outputs 1/2.
Each of these potentiometers controls the output level of its associated
headphone output.
This switch controls the overall power to the unit.
Hardware direct monitoring ( Clockwise - "Direct Out" ) eliminates the
latency or delay inherent in even the best internal circuitry while
listening to your input and existing tracks. You can also listen to your
input complete with effects (Counter-Clockwise - "COMP") while
recording by using extremely the low-latency ASIO monitoring
