ICON VARIANT - Variant Face Shield Features; Face Shield Change and Side Plate Removal

ICON MOTO SPORTS VARIANT MANUAL
7
ICON MOTO SPORTS VARIANT HELMET
8
SHIELD CHANGE & SIDE PLATE REMOVAL
Remove the sideplate covers using the small detent at the
front of the sideplate cover. The sideplates come out, and then
forward. Do not use a screwdriver or any other sharp object
that may scratch or damage your helmet.
Use the supplied shield key to remove the gearplate bolt. Dur-
ing reinstallation of the face shield, tighten the screw until the
washer is no longer able to turn freely. Do not over tighten the screw.
Carefully pull on the visor to release it from the gearplate mechanism.
Open the Variant face shield.
Align the tabs of the gearplate with the tabs on the face shield. Pull
the face shield away from the helmet freeing it from the gearplate
and remove the face shield from the helmet. During reinstallation,
the face shield should slide over the gearplate post.
To reinstall the face shield, reverse steps 1 - 5. When
reinstalling the face shield, attatch one side of the shield
at a time. Doing so will allow for both ease of installation
and help avoid damage to the gear plates. Once reinstalled
check for proper movement of the face shield before riding
in helmet.
*The face shield should not be excessively cold when the side plates are being re-fitted, otherwise damage may occur.
The Variant’s optically correct face shield features a fog-
free coating so your view of the street is always clear. A
sophisticated coating technique ensures a super-thin layer
of anti-fog treatment is precisely applied for optimal optical
qualities. Icon shields are also offered in a variety of tinted
styles, and meet or exceed Vehicle Safety Commission
Regulations (VESC-8) and/or ECE safety regulations.
VARIANT FACE SHIELD

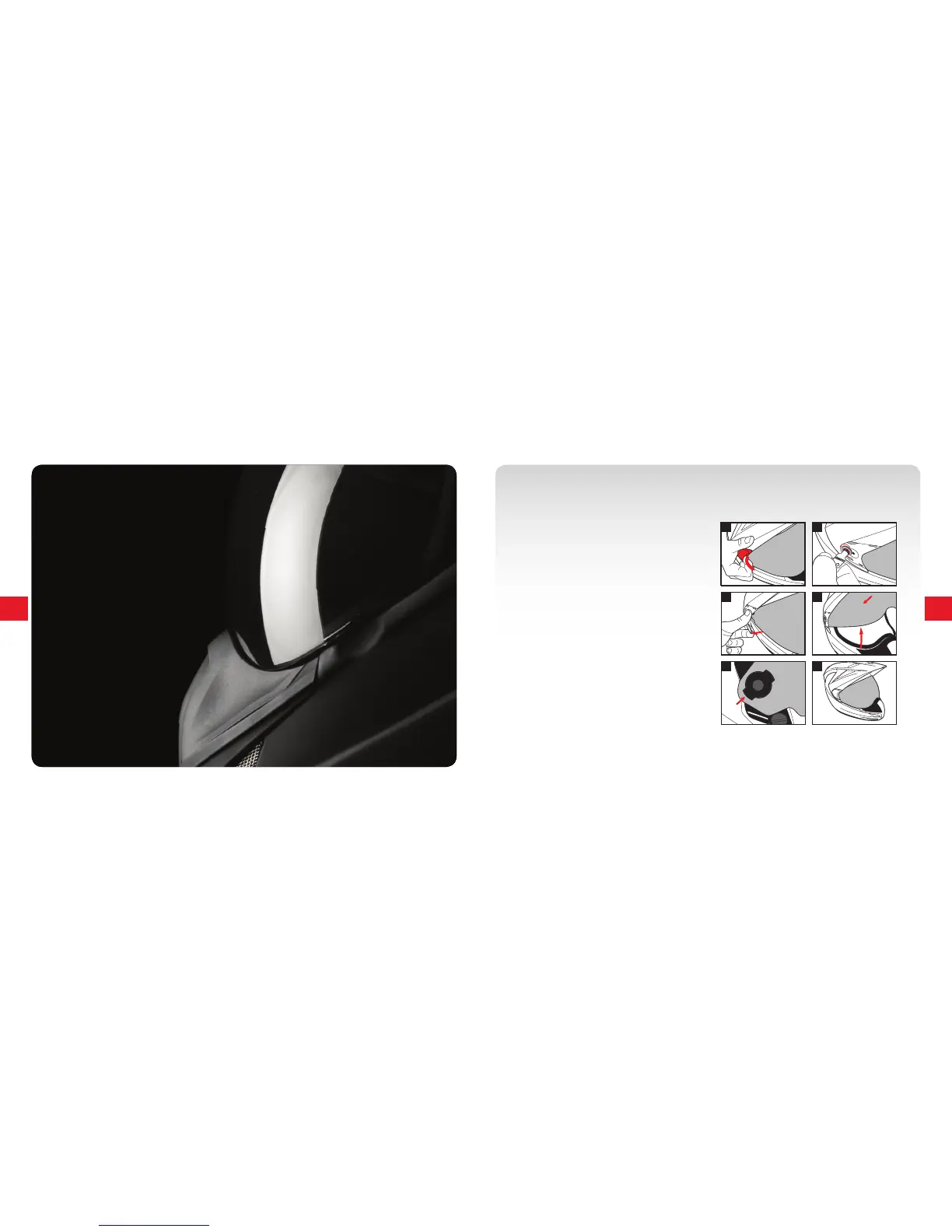

To remove and replace your Variant shield
follow these simple steps
1. Remove the sideplate covers using the
small detent at the front of the sideplate
cover. The sideplates come out, and then
forward
*Do not use a screwdriver or any other sharp
object that may scratch or damage your
helmet.
2. Use the supplied shield key to remove the
gearplate bolt.
During reinstallation of the shield - tighten
the screw untill the washer is no longer able
to turn freely. Do not over tighten the screw!
3. Carefully pull on the visor to release it
from the gearplate mechanism.
To reinstall the shield, reverse steps 1 - 6.
When reinstalling shield, attatch one side of
the shield at a time. Doing so will allow for
both ease of installation and help avoid
damage to the gear plates. Once reinstalled
check for proper movement of the shield
before riding in helmet.
4. Open the Variant shield 5. Align the tabs of the gearplate with the
tabs on the shield. Pull the shield away from
the helmet freeing it from the gearplate.
During reinstallation of the shield - the
shield should slide over the gearplae post.
6. Remove shield from helmet.
1 2
4
6
POP
3
5
1.
2.
3.
4.
5.
6.
