Iconic VF1 - INSTRUCTIONS FOR USE; Conventional Plastic Forming Process

5
VF1
5 - INSTRUCTIONS FOR USE
Iconic VF1 provides two (2) processes of vacuum forming: Conventional and Rotary.
For the operational process follow the instructions below guiding from the numbers in Figures 1 and 2.

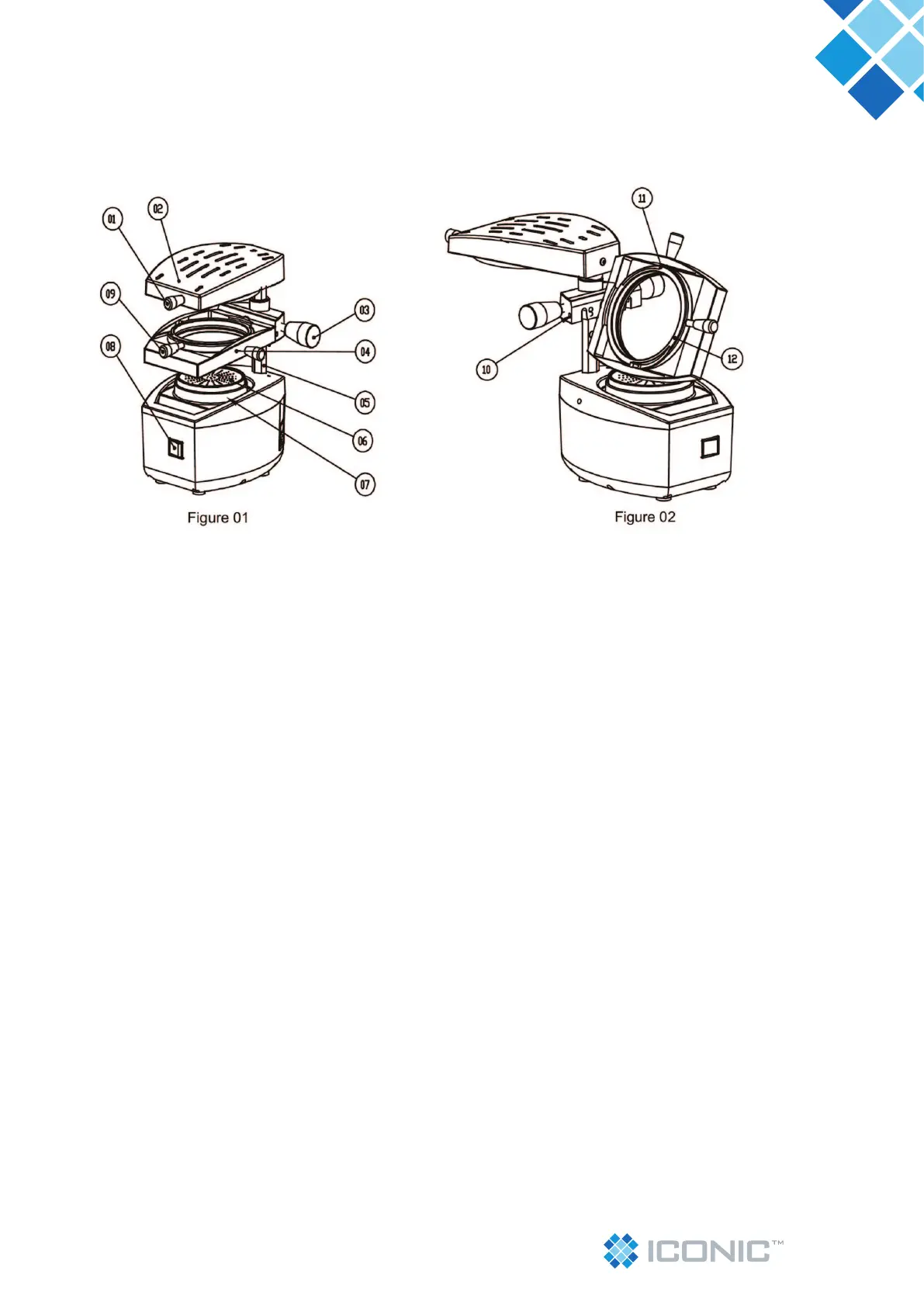

Figure 01 Figure 02
FIGURE 01
01- Heating unit handle
02- Heating unit
03- Vacuum activation handles
04- Blank fastening unit (Larger ring + Pivot)
05- Upright
06- Model holder with at functions and cup
07- Vacuum chamber
08- General switch and for heating
09- Shorter ring handle
5.1 - Conventional plastic forming process:
5.1.1 - To start the vacuum forming process, the machine must be with the power cord connected to the power supply
network and the general key (08) off.
5.1.2 - The vacuum activation handle (right side) (03), besides the activation function, has also the function of xing and
releasing the blank fastening unit (4). To release it, make a half turn in a counter-clockwise direction. To fasten, tighten
to the end of the thread in a clockwise direction.
With the unit released, always with both hands, one on each handle (03), raise the blank fastening unit (04) to near the
heating unit (02), turn the right handle (03) in a clockwise direction xing the unit (04) in the correct position (photo 02).
FIGURE 02
10 - Rotary lock screw
11 - Lock side pins
12 - Longer ring
