ICP APFM - Rigging Instructions

60
0
8
o
o
o
@

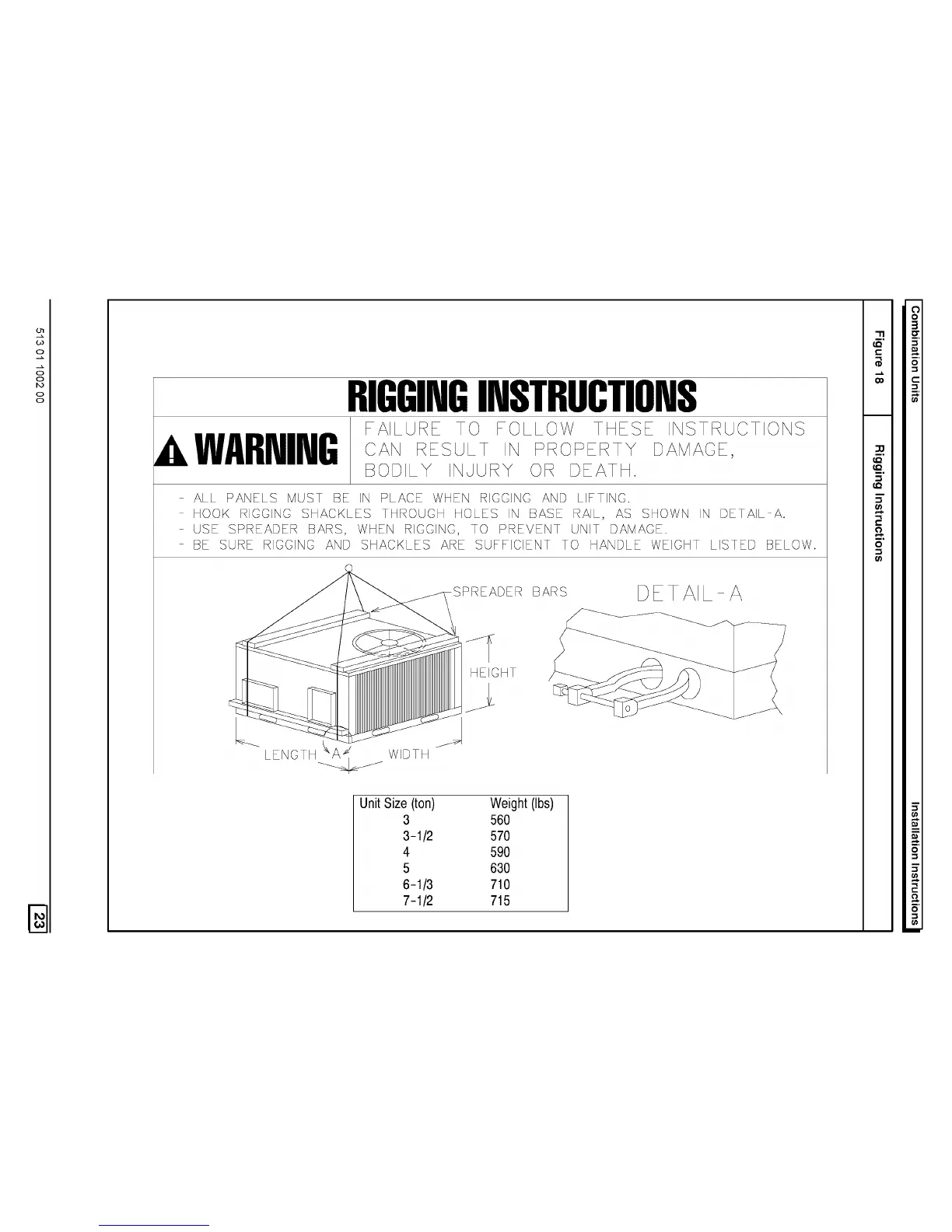

RIGGINGINSTRUCTIONS
A WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS
CAN RESULT IN PROPERTY DAMAOE,
E_ODILY INJURY OR DEATH_
ALL PANELS MUST BE IN PLACE WHEN RIGGING AND LIFTING.
HOOK RIGGING SHACKLES THROUGH HOLES IN BASE RAIL, AS SHOWN IN DETAIL A.
USE SPREADER BARS, WHEN RIGGING, TO PREVENT UNIT DAMAGE.
BE SURE RIGGING AND SHACKLES ARE SUFFICIENT TO HANDLE WEIGHT LISTED BELOW.
SPREADER BARS
DETAIL A
HEIGHT
WIDTH
Unit Size (ton)
3
3-1/2
4
5
6-1/3
7-1/2
Weight (Ibs)
560
570
590
630
710
715
"1'1
m,
c
t,..
o
m,
o
m
(3
o
3
C
m,
¢e
o
2
t_
m
