GUIDEBAR AND DIAMOND CHAIN
INSTALLATION & TENSIONING
Unpacking & Assembly

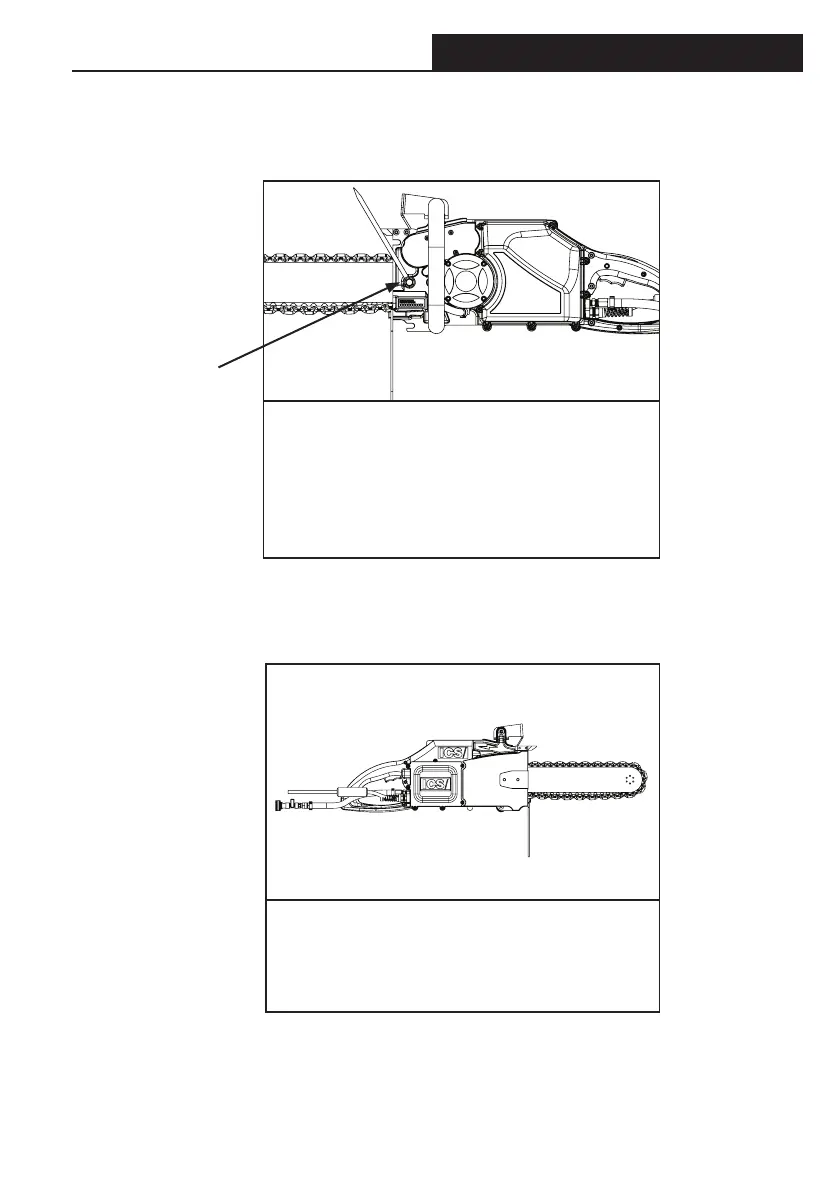

STEP 8
Lift up on the nose of the bar and firmly
tighten the bar clamp bolts. To prevent chain
tensioner breakage, be sure the bar clamp
STEP 9
Install side cover, firmly tighten side cover
nuts using the 13 mm end of scrench.
Bar clamp bolt
To Next Page
