Unpacking & Assembly
STEP 6

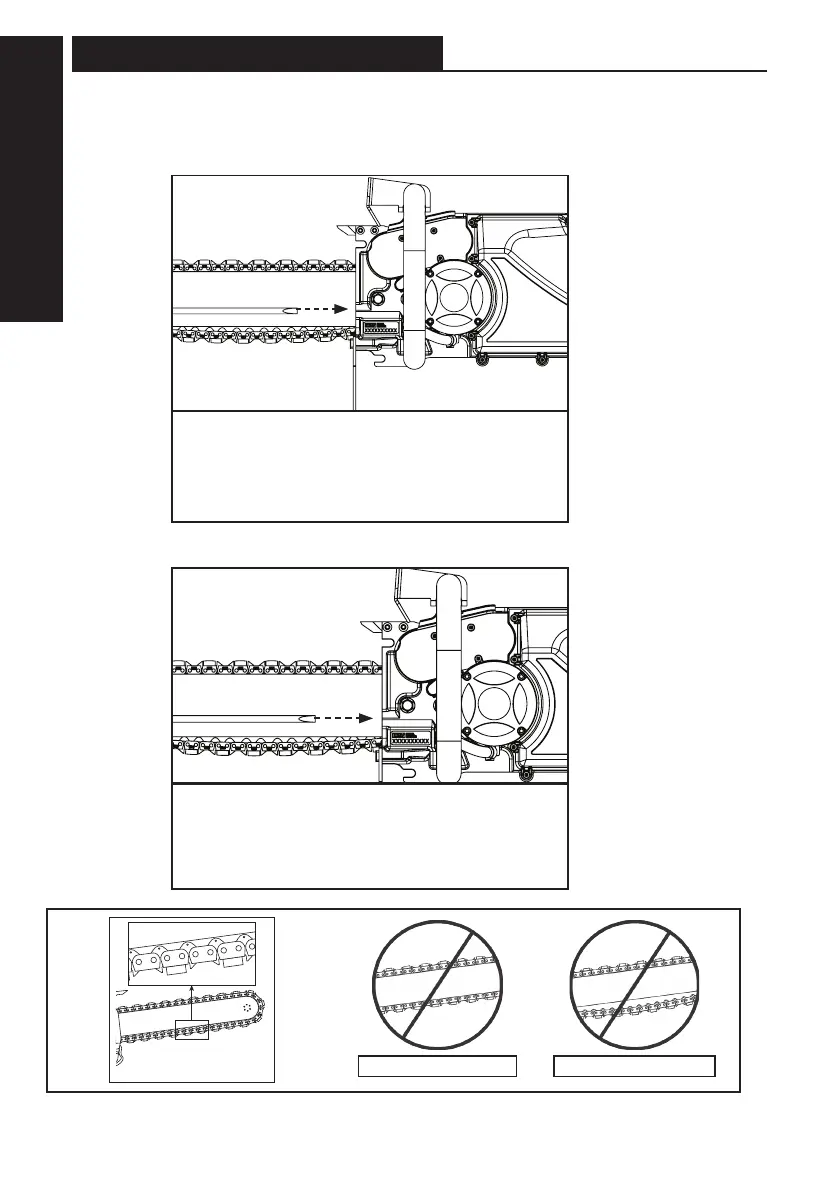

Make sure all of the drive links are inside
the top and bottom bar grooves, then
pre-tension the chain.
STEP 7
Lift up on the nose of the bar and tension
the chain. Do not over tension the diamond
chain. Loss of power will result.
CHAIN TOO TIGHT CHAIN TOO LOOSE
CORRECT CHAIN TENSION
GUIDEBAR AND DIAMOND CHAIN
INSTALLATION & TENSIONING
