Unpacking & Assembly
GUIDEBAR AND DIAMOND CHAIN INSTALLATION & TENSIONING
STEP 4

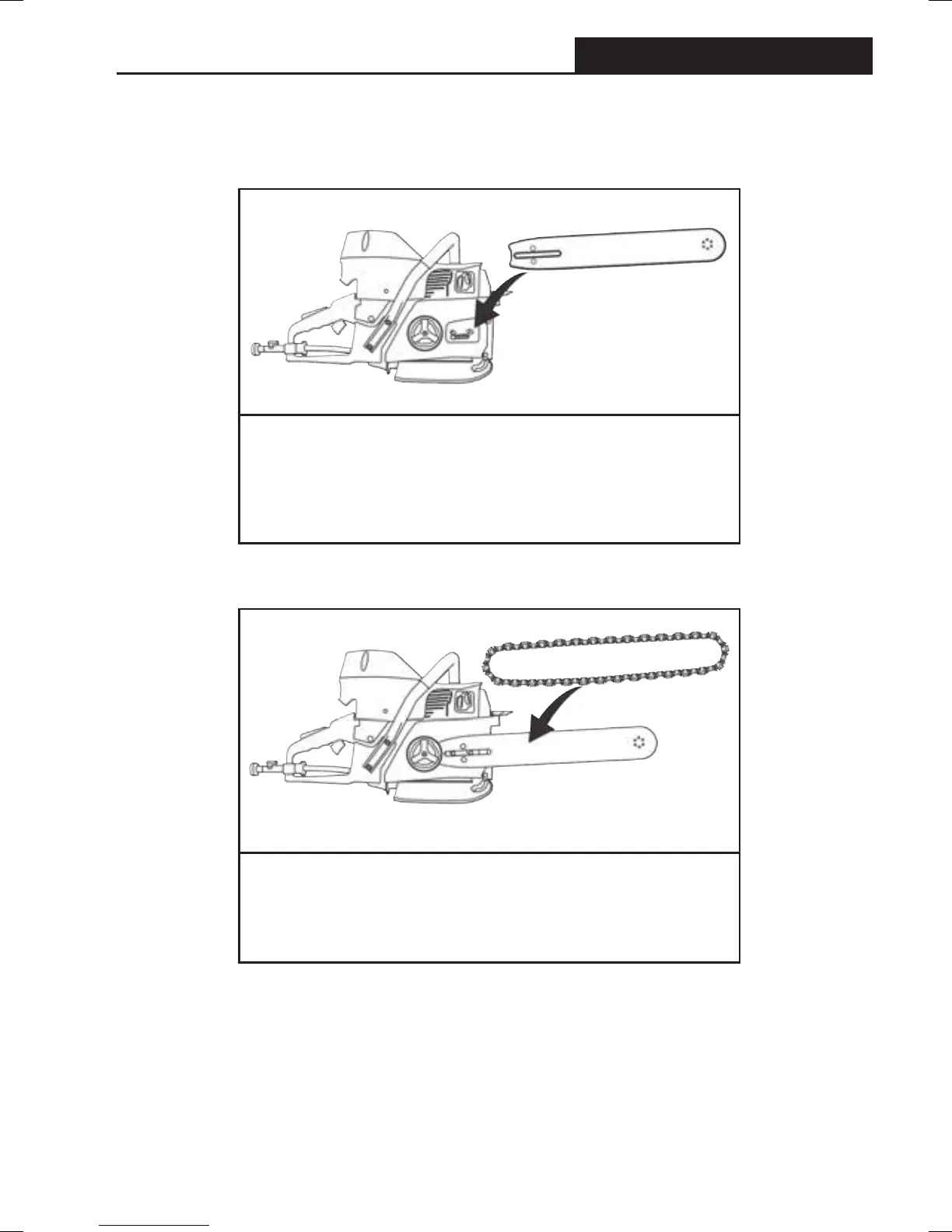

Mount the diamond chain on the guidebar starting
at the drive sprocket and continue over the
guidebar nose.
STEP 3
Place guidebar onto studs and tensioning
adjustment pin.
