GUIDEBAR AND DIAMOND CHAIN INSTALLATION & TENSIONING
Unpacking & Assembly
STEP 5

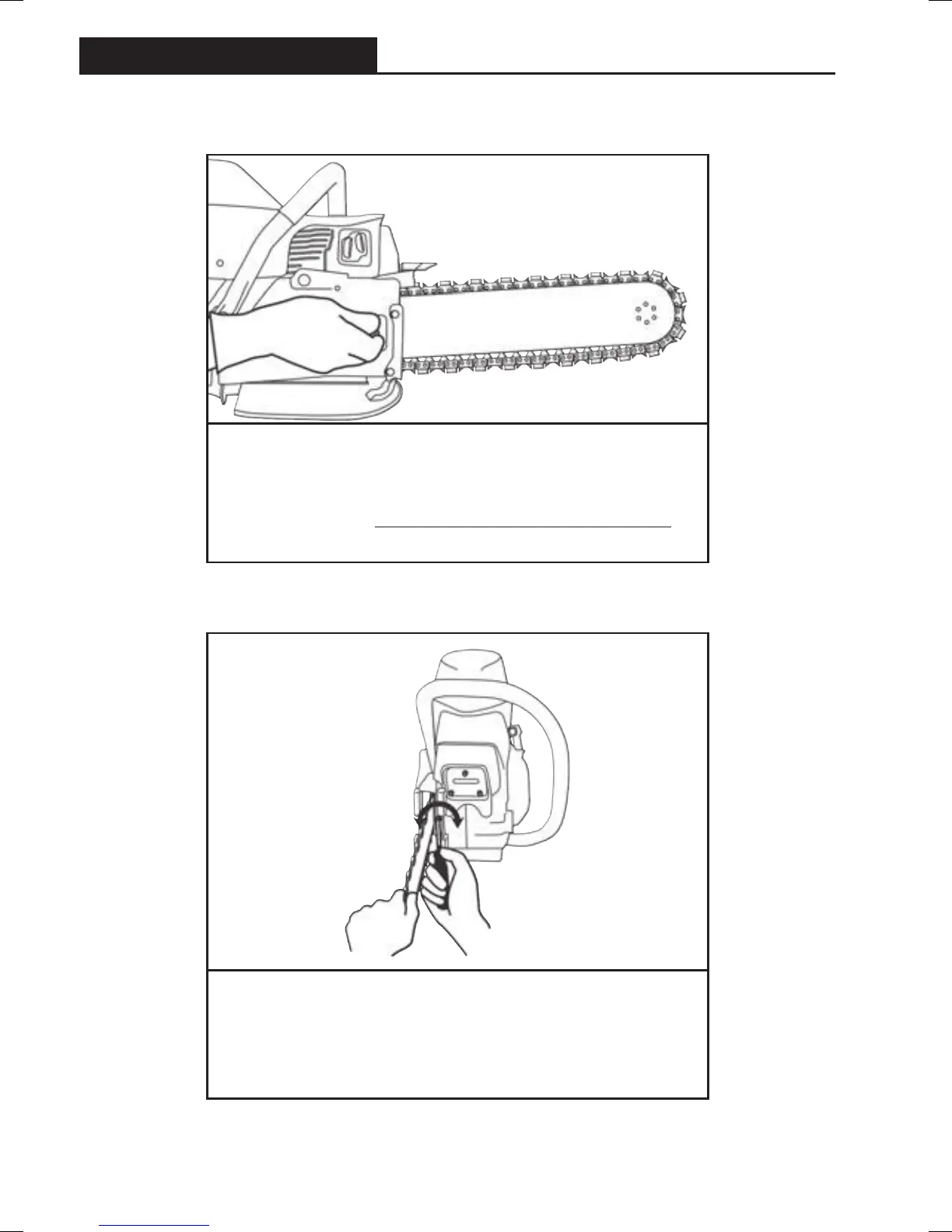

Install the side cover and nuts. Do not fully tighten
side cover nuts until chain is properly tensioned.
STEP 6
Make sure all the drive links are inside the guidebar
groove then lift the bar nose and tension the chain
by turning the tensioning screw clockwise.
