V SERIES USER’S MANUAL

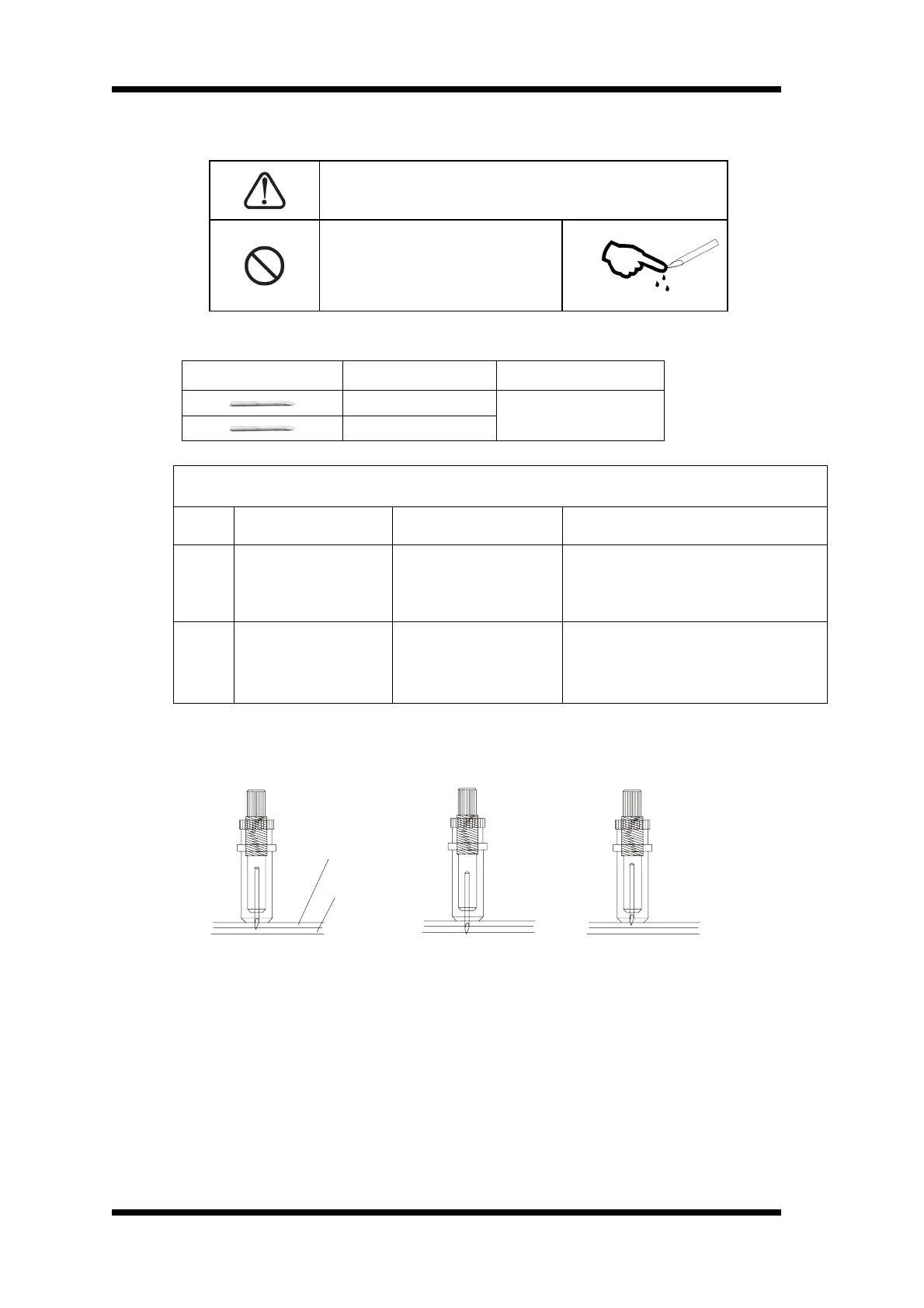

5.3 Tools Installation
CAUTION
Do not touch the knife top with
your finger to preserve injury or
passivetion of knife head.
5.3.1Tool Introduction and Application
Icon Angle Application
45°
60°
V12/24/30/48
Compare with
45ºand 60ºblade
Degree Using scope Advantage Disadvantage
60º
big word over 20mm
More attrite than 45 degree
and Can cut thick and hard
material
the quality of cutting small world and high
precision picture is not better than 45
degree blade
45º
Small word below 20mm
or high precision picture
high precision picture is
better than60 degree blade
sharply knifepoint, the attrition is not better
than 60 degree and have large wasting when
cutting thick and hard material
5.3.2 Adjust the protruding length of the knife top as required for specific cutting media
面材
底纸
Correct Tool long protruding Tool short protruding
Length of knife point length of knife point
5.3.3 (1) Loosen the screw of tool carrier
(2)Assembly the tool with knife into the tool carrier
(3)When the tool is in appropriate position screw it and fix the screw.
Superficial material
Base paper
