iDataLink Maestro K150 How To Use

ADS-RR(SR)-TOY02-DS-IG-EN maestro.idatalink.com
ToyoTa TundRa WiTh JBL 2014-2019
Automotive Data Solutions Inc. © 2021
4
NC
AUX INAUX IN
1
BACKUP CAMBACKUP CAM
MAIN
HARNESS
RCA CABLES
RCA CABLES
FACTORY RADIO HARNESS
REVERSE CAMERA HARNESS
TO2 T-HARNESS
STEP 2
STEP 3
STEP 5
WIRES FROM
VEHICLE
CONNECT YELLOW RCA AUX IN
IF VEHICLE IS EQUIPPED WITH
AUXILIARY VIDEO
CONNECT IF EQUIPPED
STEP 6

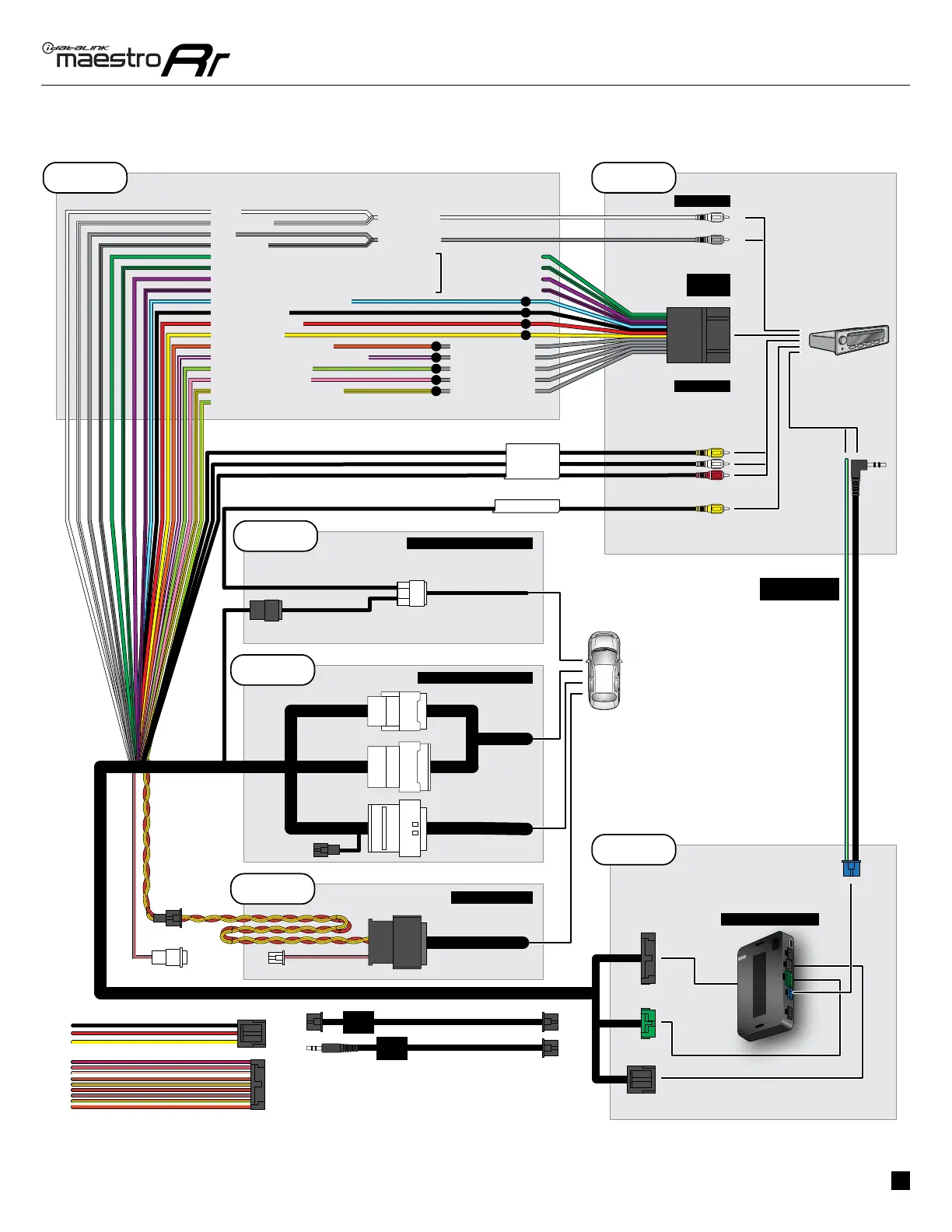

WIRING DIAGRAM with an Amplifier
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
YELLOW/BLACK - FOOT BRAKE
YELLOW/GREEN (NOT CONNECTED)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
STEP 1
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
LF RCA INPUT
RF RCA INPUT
SEE AFTERMARKET
RADIO GUIDE
FOR RADIO WIRE
COLORS
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
CONNECTIONS
NOT
REQUIRED
WITH AMP
CONNECT TO
AFTERMARKET RADIO
STEERING WHEEL
CONTROL CABLE
NOT REQUIRED
AUDIO
CABLE
DATA
CABLE
MAESTRO RR MODULE
OBDII CONNECTOR
STEP 4
N.C.N.C.
