Ideal Boilers I-mini 30 - Fan and Venturi Assembly Removal and Cleaning

34
SERVICING
i-mini - Installation and Servicing

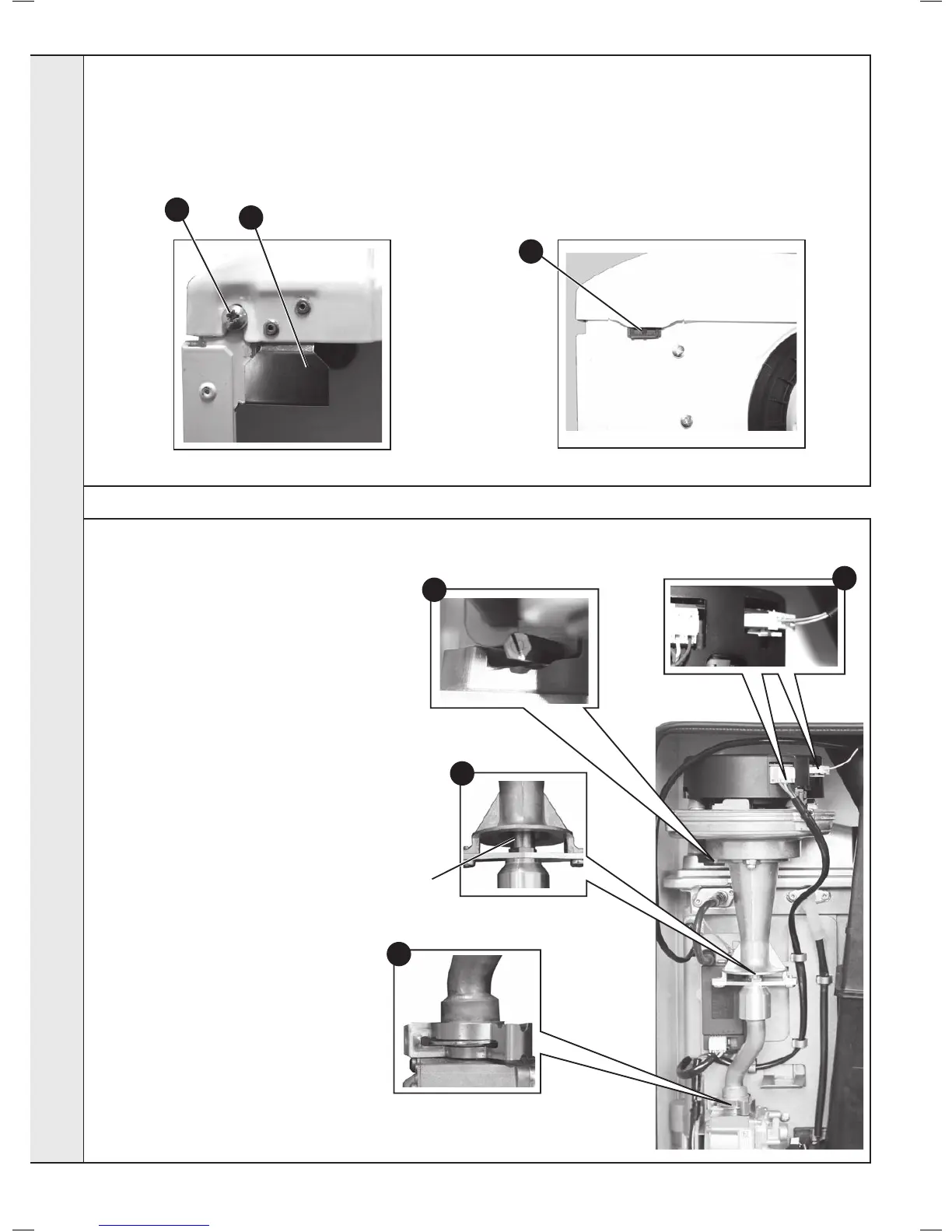

34 BOILER FRONT PANEL REMOVAL / REPLACEMENT
35 FAN AND VENTURI ASSEMBLY REMOVAL AND CLEANING
REMOVAL
1. Loosen the two screws retaining the front panel.
2. Pull the two spring clips down to disengage and pull panel
forward and upward and remove.
view from top of boiler
view from bottom of boiler
1
2
3
1. Disconnect the electrical leads from the
fan.
2. Remove the clip from the gas control
valve outlet and ease the pipe upwards
rotate and then ease down to remove.
3. Remove the extended nut on the fan
mounting bracket.
4. Lift off fan and venturi assembly.
5. Undo the two M4 screws and release the
nozzle assembly.
6. Inspect the injector for blockage or
damage.
7. Inspect fan outlet sealing gasket and
replace if necessary.
1
2
3
5
Injector
REPLACEMENT
3. Hook the panel onto the top retaining clips.
4. Push the panel until the 2 bottom spring clips engage ensuring
the 4 control knobs line up with the holes in the front panel.
5. Re-tighten the two retaining screws.
SERVICING
