INSTALLATION
mini HE --- Installation & Servicing
15
9 UNPACKING
The boiler is supplied fully assembled in one pack A, together
with a standard flue assembly for lengths up to 960 mm
(37” 3/4), rear or side flue outlet, in pack B.
Unpack and check the contents.

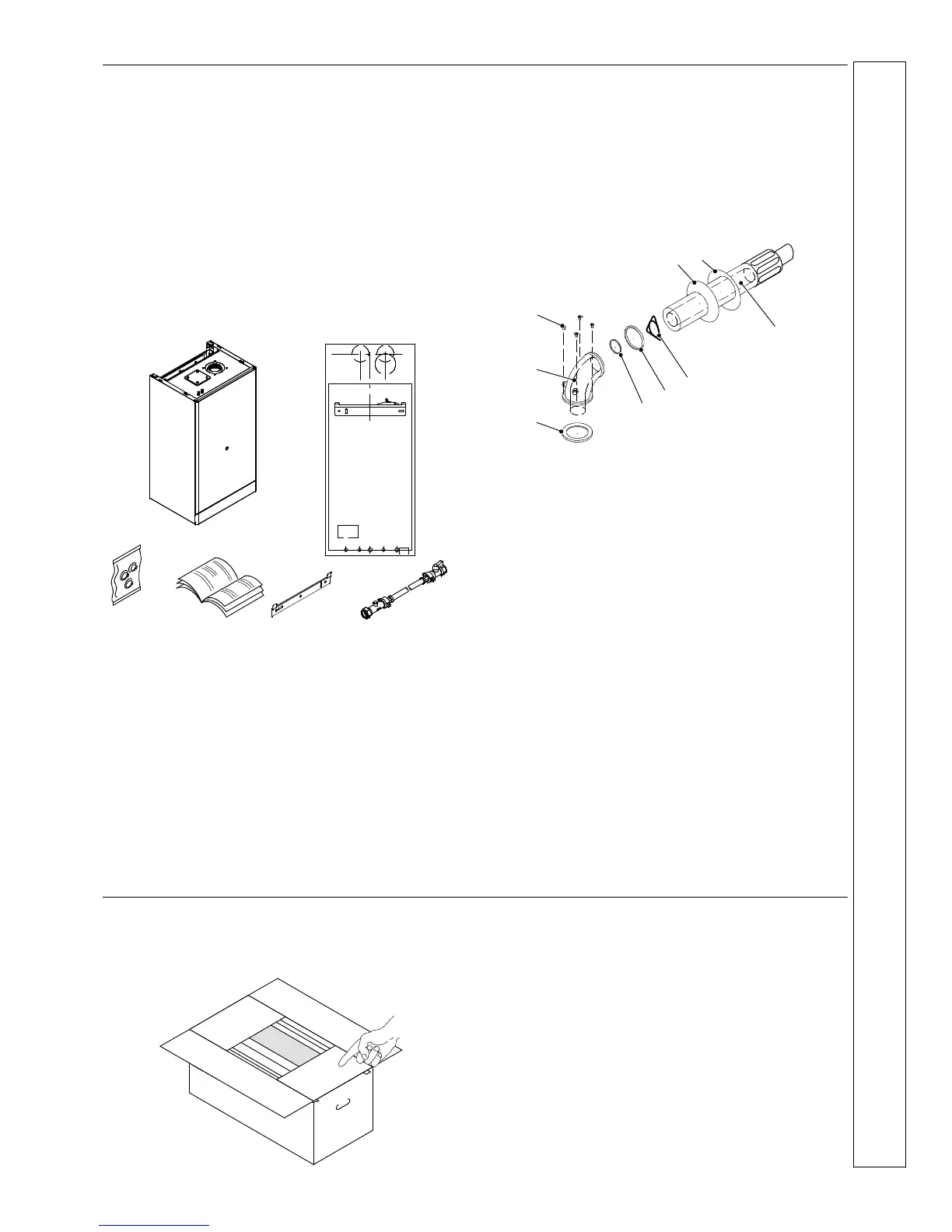

Pack A contents
A The boiler.
B Hardware pack
C Wall mounting plate
D Wall mounting template
E User’s, Installation & Servicing instructions.
F Filling loop assembly
A
B
C
D
E
F
Hardware pack contents
F 22 mm CH connection pipe --- 2 off.
F 22 mm Gas supply connection pipe --- 1 off.
F 15 mm DHW cold inlet connection pipe --- 1 off.
F 15 mm DHW hot outlet connection pipe --- 1 off.
F 1/2” connection nut --- 2 off.
F 1/2” sealing washer --- 3 off.
F 3/4” sealing washer --- 6 off.
F 3/4” Gas supply isolating valve --- 1 off.
F 3/4” CH circuit isolating valve --- 2 off.
F 1/2” DHW cold inlet isolating valve --- 1 off.
Pack B contents
G Air intake pipe ø 100 mm (4”), flue pipe ø 60 mm (2” 3/8)
with terminal grille assembly
H Centring spring
I Turret---air pipe gasket
J Flue pipe gasket
K Boiler---turret gasket
L Flue turret
M Self tapping screws 4,8x13 --- 4 off
N Wall finishing gasket --- internal (plastic)
O Wall finishing gasket --- external (rubber)
G
H
I
J
K
L
M
N
O
Optional extras, if ordered, are available in separate boxes.
F Electronic programmer kits --- 24 hrs & 7 day
F Extension duct kit pack D (ø 60/100)
F Flue support kits ø 80, 100, 125
F Vertical outlet flue kit with elbow (ø 60/100)
F 90° Elbow kit (ø 60/100)
F 45° Elbow kit (ø 60/100)
F Roof flue kit (ø 80/125)
F Universal weather collar (for roof flue kit)
F Flat roof weather collar (for roof flue kit)
F Extension duct kit (ø 80/125)
F 90° Elbow kit (ø 80/125)
F 45° Elbow kit (ø 80/125)
F Condense drain vertical (ø 80/125)
F Twin pipe kit (ø 80) with air and flue terminals
F Extension duct kit (ø 80)
F 90° Elbow kit (ø 80) male---female
F 45° Elbow kit (ø 80) male---female
F Vertical condense drain (ø 80)
F Horizontal condense drain (ø 80)
F Condense trap
F Stand---off bracket
F Natural gas to LPG conversion kit
F LPG to natural gas conversion kit
F Condensate pump kit
10 PACKAGING
To unpack the boiler refer to the instructions on carton end
flap.
INSTALLATION
