FLUE OUTLET
25
Installation and Servicing
SECTION 2 - INSTALLATION
Note.
A at or pitched roof ashing plate (not supplied) is required before proceeding
with the installation of this kit.

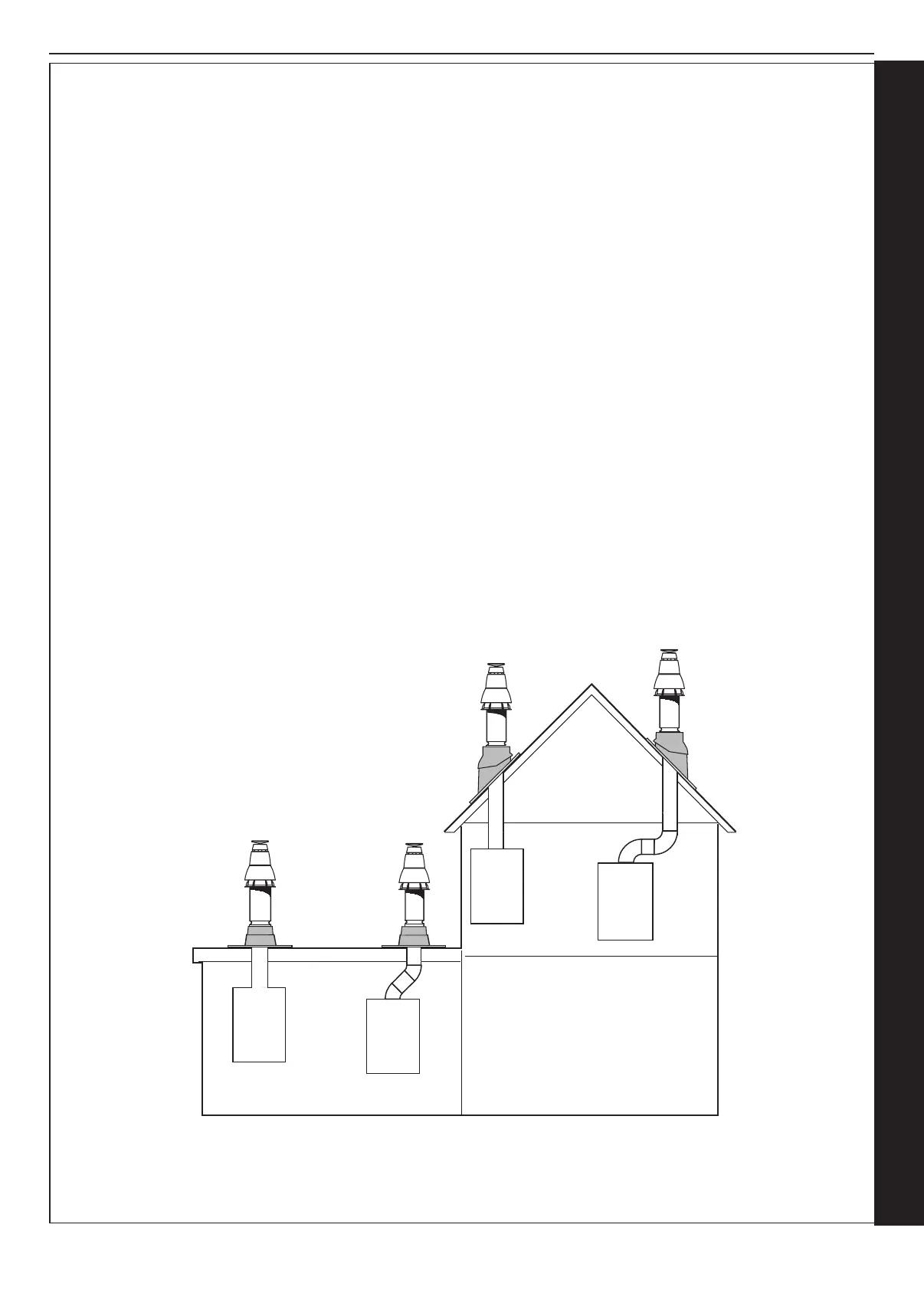

This kit is suitable for both at and pitched roof terminations, using a concentric
ue to run vertically from the top of the boiler and terminating above roof level.
Connection to the top of the boiler is made using the supplied vertical connector.
WEATHER PROOFING
Where the ue passes through the roof line an adequate seal must be made.
This is achieved by using either:
- Flat roof weather collar
or
- Universal weather collar.
ACCESSORIES
Flue Duct Extension Kits are available for ue lengths extending beyond 1m.
These packs contain 1m extension ducts and may be cut to the desired length.
If the offset vertical option is used an elbow Kit is required. For a full accessories
list refer to page 10, Optional Extras.
