2
600
600
200
200m
ACV
DCA
DCV
1.5
BAT
9
200
200K
20K
2K
20
M
200
m
2
20
200
OHM

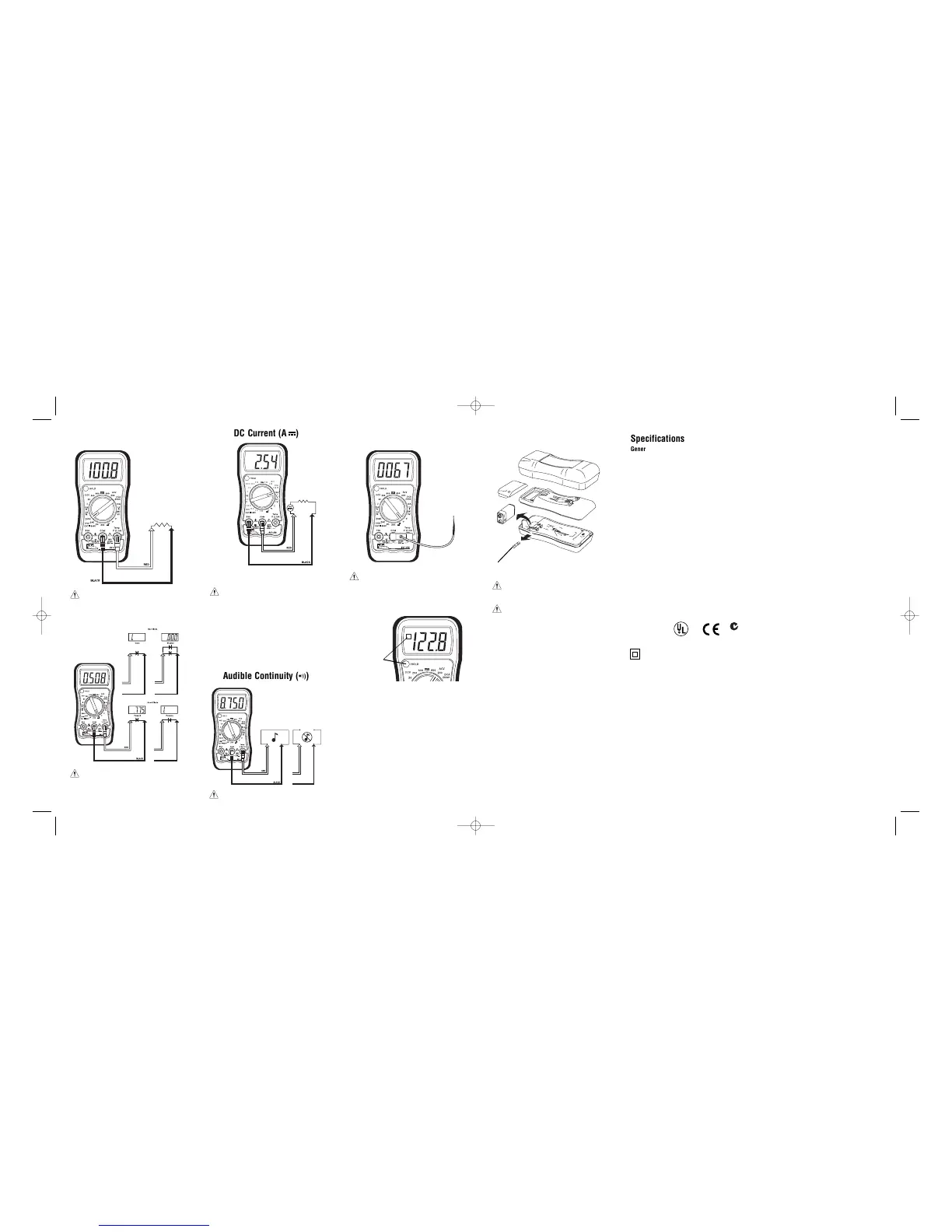

DC Current (A )
Audible Continuity (
•
)
)
)
)
Specifications
General Features
Display: 1999 Count LCD
Over range: “1” or “-1” is displayed
Polarity: Automatic (no indication for
positive polarity); Minus(-)
sign for negative polarity
Altitude: 6561.7 ft. (2000m)
Accuracy: Stated accuracy at 73° ±41°F
(23° ±5°C), < 75% R.H.
Batteries: Requires 9VDC (NEDA 1604)
Fuse: 250mA/250V (#F-310)
Operating 32°F to 104° (0° to 40°C)
environment: at < 75% R.H.
Storage -4° to 140°F (-20° to 60°C)
environment: at < 80% R.H.
Weight: 7.1 oz (200g)
Size: 5.9"H x3.0"W x1.5"D
(150mmHx76mmWx38mmD)
Accessories Test Leads (TL-310), 9V Battery,
Included: Operating Instructions
Safety Complies with UL61010-1,
Certification: UL61010-031, IEC EN61010-1,
EN61010-031, Cat II-600V
Equipment protected by double
insulation.
Instrument complies with overvoltage category II.
Cat II equipment protected from transients in
outlets and long branch equipment. Pollution
degree 2 in accordance with IEC-664. Indoor use.
Maintenance
Clean the case with a damp cloth and mild deter-
gent. Do not use abrasives or solvents.
Service and Replacement
Parts
No user-serviceable parts.
For replacement parts or to inquire about service
information contact IDEAL INDUSTRIES, INC. at
1-877-201-9005 or visit our website @
www.testersandmeters.com.
Warranty Statement
This meter is warranted to the original purchaser
against defects in material or workmanship for a
two-year period after purchase. During this warran-
ty period, IDEAL INDUSTRIES, INC. will, at its
option, replace or repair the defective unit, subject
to verification of the defect or malfunction.
This warranty does not apply to defects resulting
from abuse, neglect, accident, unauthorized repair,
alteration, or unreasonable use of the instrument.
Any implied warranties arising out of the sale of an
IDEAL product, including but not limited to implied
warranties of merchantability and fitness for a par-
ticular purpose, are limited to the above. The man-
ufacturer shall not be liable for loss of use of the
instrument or other incidental or consequential
damages, expenses, or economic loss, or for any
claim or claims for such damage, expenses, or
economic loss.
State laws vary, so the above limitations or exclu-
sions may not apply to you. This warranty gives
you specific legal rights, and you may also have
other rights which vary from state to state.
Warranty does not cover batteries.
Battery & Fuse Replacement
WARNING: To avoid electric shock, dis-
connect test leads before removing battery cover.
WARNING: For continued protection
against fire, replace only with fuse of the specified
voltage, current and rupture speed ratings.
Turn power off, break circuit, insert meter in
series, then turn power back on.
WARNINGS:
• Check fuse before testing.
• Use the proper switch position and lead
inputs.
• Never attempt to measure current on
circuits or equipment with more than
250 volts potential.
• Limit high current measurements to
15 seconds maximum followed by a
15 minute cooldown period.
Diode Testing
Data Hold
Temperature
WARNING: De-energize circuit before
taking resistance measurement.
WARNING: De-energize circuit before
checking diode.
WARNING: De-energize circuit first.
WARNING: To avoid electric shock, do
not place test leads or thermocouple on a
voltage source.
Resistance (Ω)
Press to hold
present value in
display; depress
to release display.
F-310: 250mA/250V
5mm x 20mm
ND 6295-1 61-310 Instructions 5/7/07 11:04 AM Page 7
