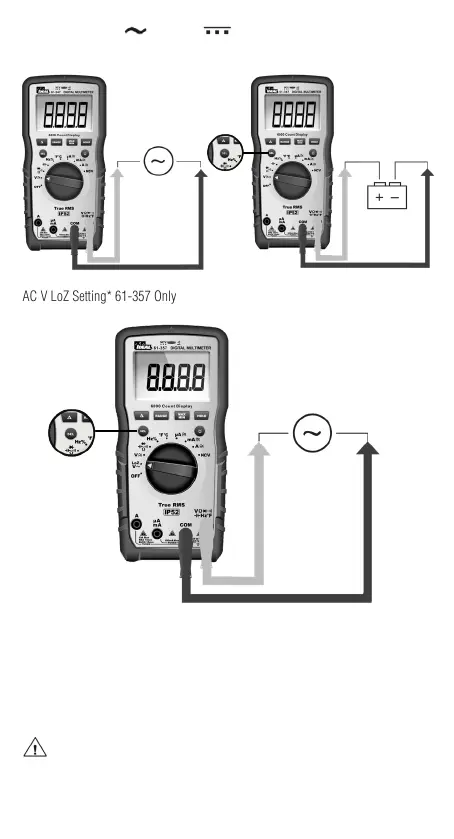

Measuring AC ( ) or DC ( ) Voltage
15
Lead Warning
*Note: When measuring AC voltage, Ghost or stray voltages (caused by
induced voltages coupling from one parallel conductor to the next as found when
measuring one conductor in multiple conductor circuits) may cause an incorrect
value. Selecting the Low impedance position (LoZ) on the dial, (see inset above)
while measuring voltage with the 61-357 will defeat the influence of Ghost or Stray
voltage.
AC V LoZ Setting* 61-357 Only
Caution - Use caution when using the LoZ function on equipment that may
be damaged by being connected to a low impedance source.
To assist with voltage readings, a bar graph will appear in the display.
