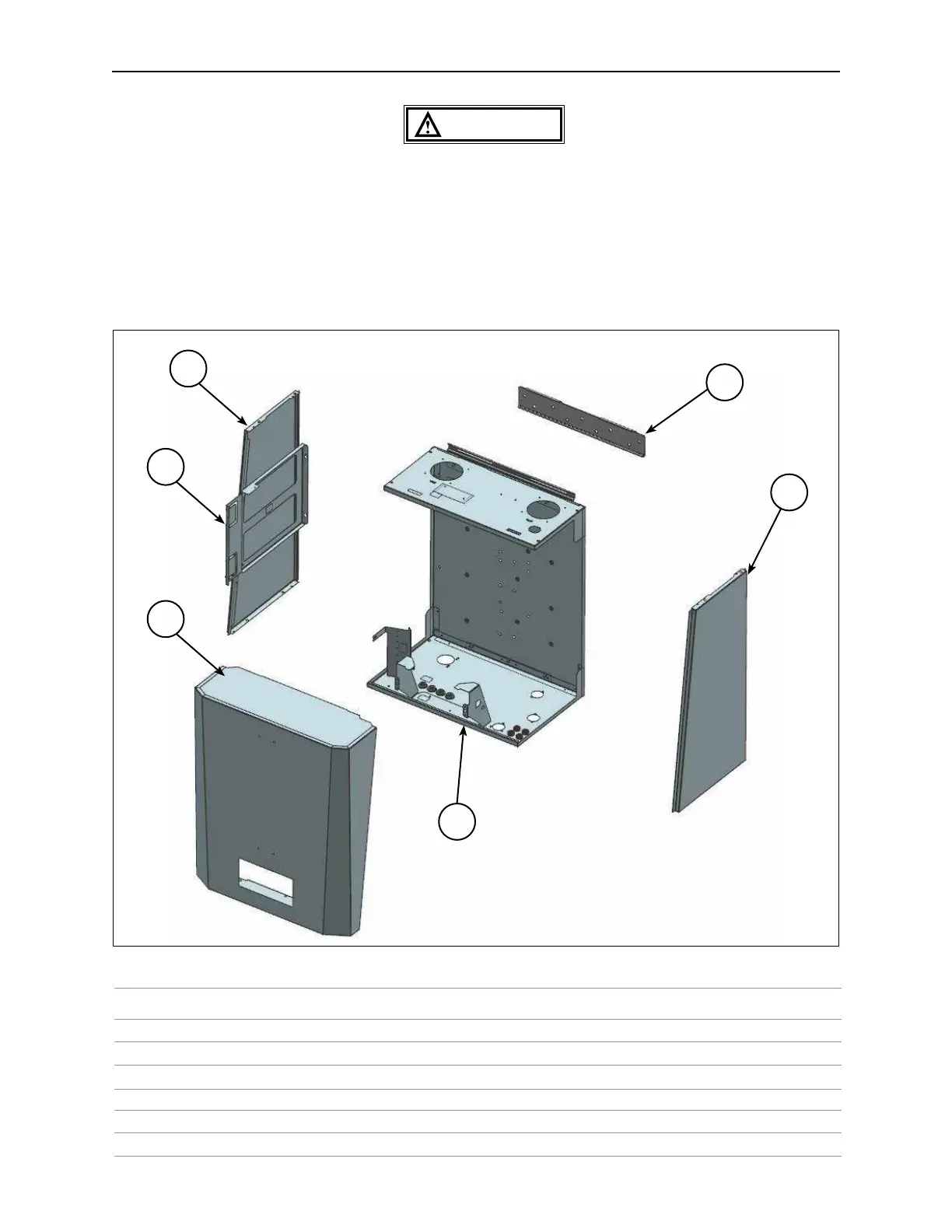

 EXALT Solo Jacket Components
1
3
2
5
4
6
•Replacement parts must be purchased through a local Ideal distributor.
When ordering a part, please provide the model number and description
and/or part number of replacement part.
•Use only genuine Ideal replacement parts to ensure warranty coverage
and to avoid improper operation or damage to appliance.
•Contact Ideal at 800-411-9999 or www.idealusa.com for a list of distribu-
tors near you.
WARNING
Item Part #Description
1 EXJKT01 Front Jacket Panel
2EXARKIT92 Control Box Mounting Box
3 EXJKT02 Left Side Jacket Panel
4EXARKIT90 Wall Mounting Bracket with Hardware
5 EXJKT03 Right Side Jacket Panel
6EXARKIT89 User Interface Mounting Bracket
 EXALT Solo Jacket Components
1
3
2
5
4
6
•Replacement parts must be purchased through a local Ideal distributor.
When ordering a part, please provide the model number and description
and/or part number of replacement part.
•Use only genuine Ideal replacement parts to ensure warranty coverage
and to avoid improper operation or damage to appliance.
•Contact Ideal at 800-411-9999 or www.idealusa.com for a list of distribu-
tors near you.
WARNING
Item Part #Description
1 EXJKT01 Front Jacket Panel
2EXARKIT92 Control Box Mounting Box
3 EXJKT02 Left Side Jacket Panel
4EXARKIT90 Wall Mounting Bracket with Hardware
5 EXJKT03 Right Side Jacket Panel
6EXARKIT89 User Interface Mounting Bracket
 EXALT Solo Jacket Components
1
3
2
5
4
6
•Replacement parts must be purchased through a local Ideal distributor.
When ordering a part, please provide the model number and description
and/or part number of replacement part.
•Use only genuine Ideal replacement parts to ensure warranty coverage
and to avoid improper operation or damage to appliance.
•Contact Ideal at 800-411-9999 or www.idealusa.com for a list of distribu-
tors near you.
WARNING
Item Part #Description
1 EXJKT01 Front Jacket Panel
2EXARKIT92 Control Box Mounting Box
3 EXJKT02 Left Side Jacket Panel
4EXARKIT90 Wall Mounting Bracket with Hardware
5 EXJKT03 Right Side Jacket Panel
6EXARKIT89 User Interface Mounting Bracket
