IDEAL EXALT Combi 155 Quick Reference Boiler Piping And Wiring Guide

37

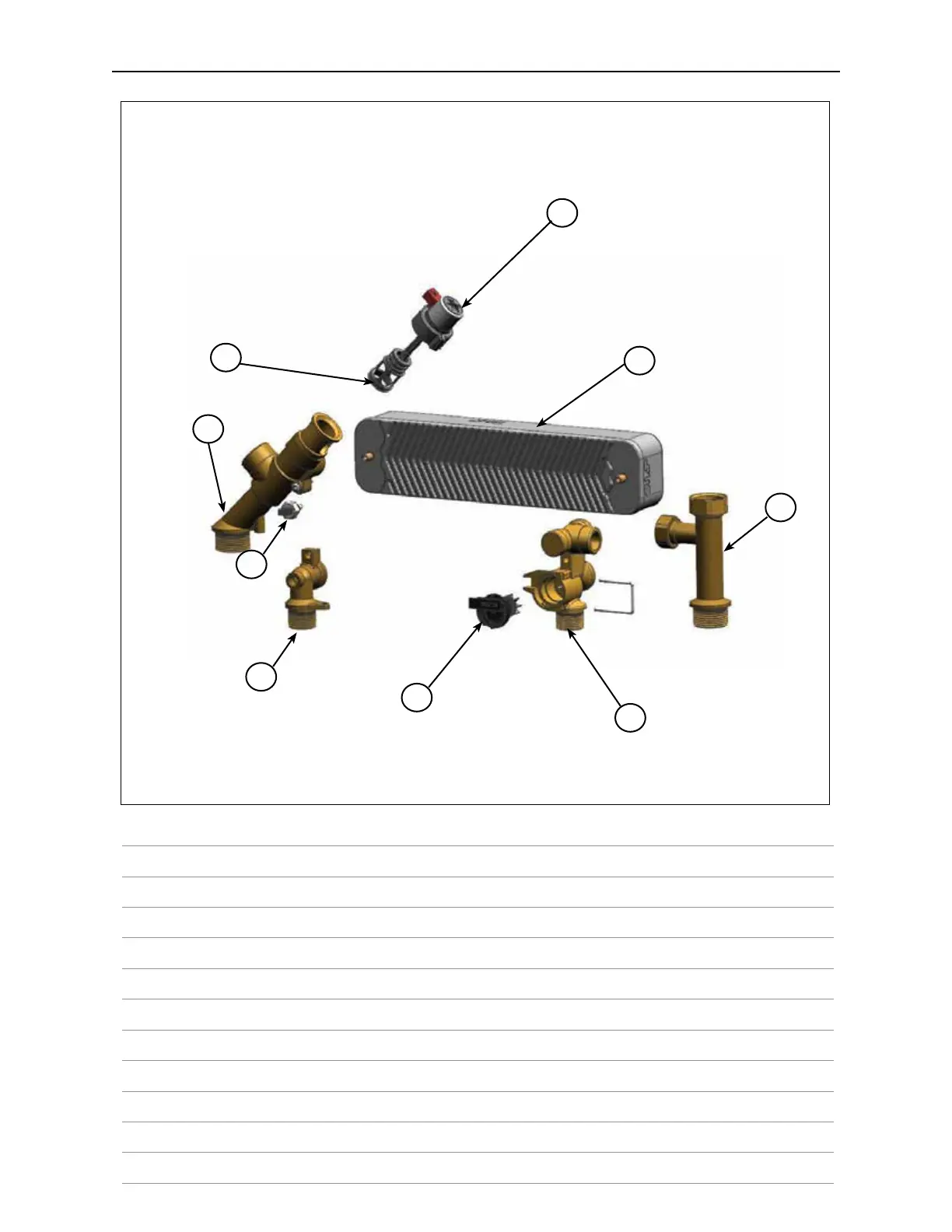

 EXALT Combi Hydro-block
1
3
6
2
5
8
7
4
9
Item Part # Description
1EXARKIT60 Hydroblock
2EXARKIT61 Valve Motor
3EXARKIT62 3 Way Valve
4EXARKIT58 Flow Sensor
5EXARKIT64 CH Supply Fitting (155)
5EXARKIT69 CH Supply Fitting (199)
6EXARKIT65
DHW Supply Fitting
7EXARKIT66
DHW Inlet Fitting
8EXARKIT67
CH Return Fitting
9EXARKIT56
Domestic Water Temperature Sensor
 EXALT Combi Hydro-block
1
3
6
2
5
8
7
4
9
Item Part # Description
1EXARKIT60 Hydroblock
2EXARKIT61 Valve Motor
3EXARKIT62 3 Way Valve
4EXARKIT58 Flow Sensor
5EXARKIT64 CH Supply Fitting (155)
5EXARKIT69 CH Supply Fitting (199)
6EXARKIT65
DHW Supply Fitting
7EXARKIT66
DHW Inlet Fitting
8EXARKIT67
CH Return Fitting
9EXARKIT56
Domestic Water Temperature Sensor
