IDEAL he18 Installation And Servicing Guide

classic HE P - Installation & Servicing
27
INSTALLATION

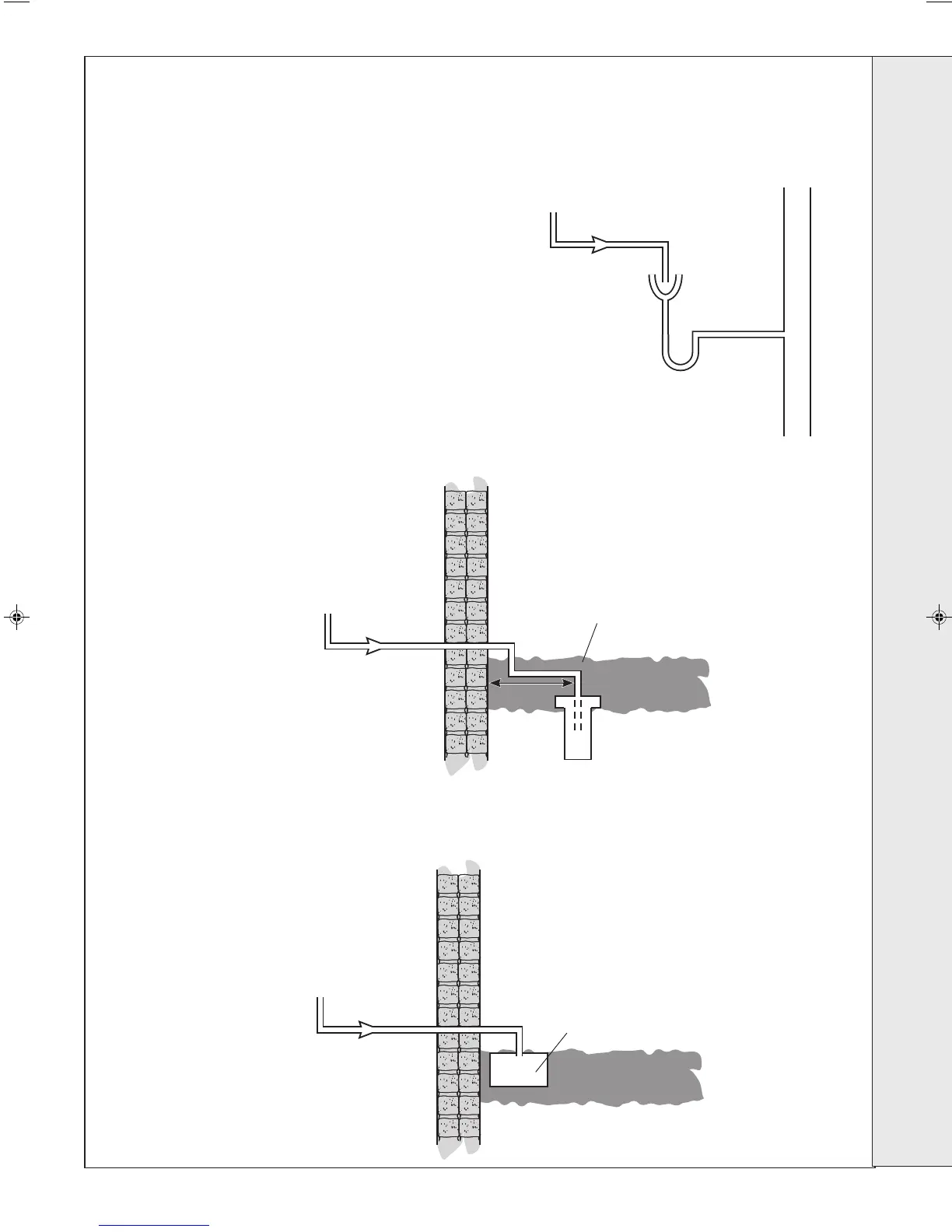

40 CONDENSATE PIPE TERMINATION CONFIGURATIONS . . . continued
cla9253
BOILER
Air Break
3. INTERNAL CONNECTION TO SOIL AND VENT STACK
Termination into a down pipe can take place providing it can be confirmed that
the down pipe is part of a combined waste and rain water system.
* Make connection to SVP using a solvent welded saddle.
BOILER
External
wall
Ground Level
Termination
to Soak away
cla7774
minimum
500mm
BOILER
External
wall
Ground Level
Open end of pipe
direct into gulley
below grating but
above water level
DRAIN
cla7775
4. TERMINATION TO SOAK AWAY
5. TERMINATION TO DRAIN / GULLEY
INSTALLATION
202107-6.pmd 20/02/2008, 13:5727

IDEAL he18 Specifications

General

Output	18 kW
ERP Rating	A
CH Output (kW)	18
Model	he18
Fuel Type	Gas
Mounting	Wall Mounted
Dimensions (HxWxD)	700x390x278 mm
