46

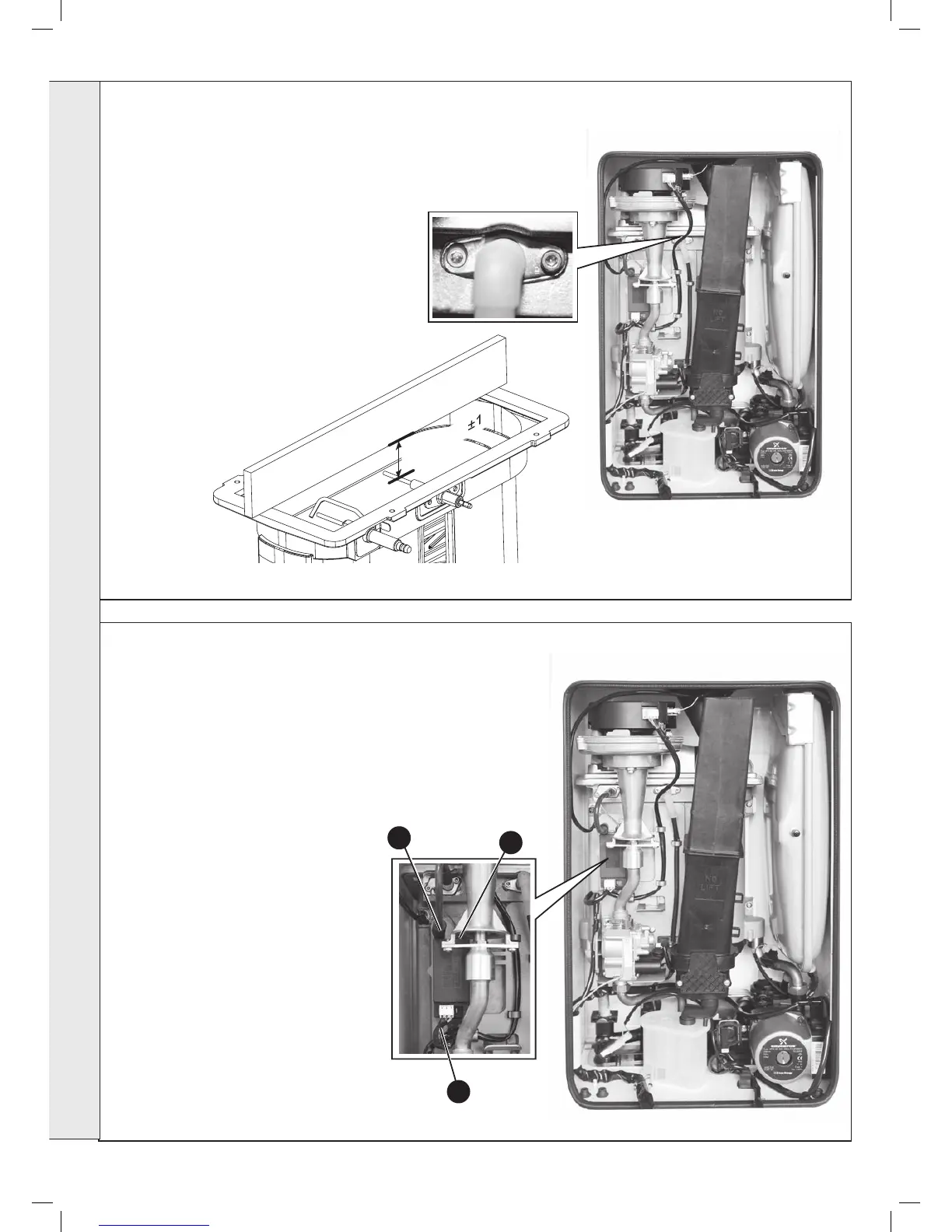

FLAME DETECTION ELECTRODE REPLACEMENT
47
SPARK GENERATOR REPLACEMENT
1. Refer to Frame 40.
2. Disconnect the leads from the spark
generator.
3. Remove the single M5 Screw
securing the spark generator to the
gas valve mounting bracket.
4. Fit the new spark generator and re-
assemble in reverse order ensuring
the two earth leads are correctly
replaced.
5. Check operation of the boiler. Refer
to Frames 29 & 30.
Flame Detection Electrode
1. Refer to Frame 40.
2. Remove the burner. Refer to Frame 43.
3. Unplug the ame detection lead from the
electrode.
4. Remove the 2 screws retaining the detection
electrode.
5. Remove the electrode.
6. Fit the new ame detection electrode, using the
new gasket supplied.
7. Reassemble in reverse order.
8. Check the operation of the boiler. Refer to
Frames 29 & 30.
Spark Generator
3
2
2
SERVICING
