5. GENERAL INFORMATION
BOILER PUMP
The boiler pump will operate briey as a self-check once every 24
hours, regardless of system demand.
MINIMUM CLEARANCES
Clearance of 165mm (6
1
/2”) above, 100mm (4”) below, 2.5mm
(9
1
/8”) at the sides and 450mm (17
3
/4”) at the front of the boiler
casing must be allowed for servicing.
Bottom Clearance
Bottom clearance after installation can be reduced to 5mm
This must be obtained with an easily removable panel, to enable
the system pressure gauge to be visible and to provide the
100mm clearance required for servicing.
ESCAPE OF GAS
Should a gas leak or fault be suspected contact the National Gas
Emergency Service without delay. Telephone 0800 111 999.
Ensure that;
-Allnakedamesareextinguished
- Do not operate electrical switches
- Open all windows and doors
CLEANING
For normal cleaning simply dust with a dry cloth. To remove stubborn
marks and stains, wipe with a damp cloth and nish off with a dry
cloth. DO NOT use abrasive cleaning materials.
MAINTENANCE
The appliance should be serviced at least once a year by a Gas
Safe Registered Engineer or in IE a Registered Gas Installer
(RGII).
6. MECHANICAL 24 HOUR TIMER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GRASSLIN
3G9994
ON
PERIOD
ON
PERIOD
Manual OFF
Manual ON
Timed
Align current
time to arrow
Outer dial

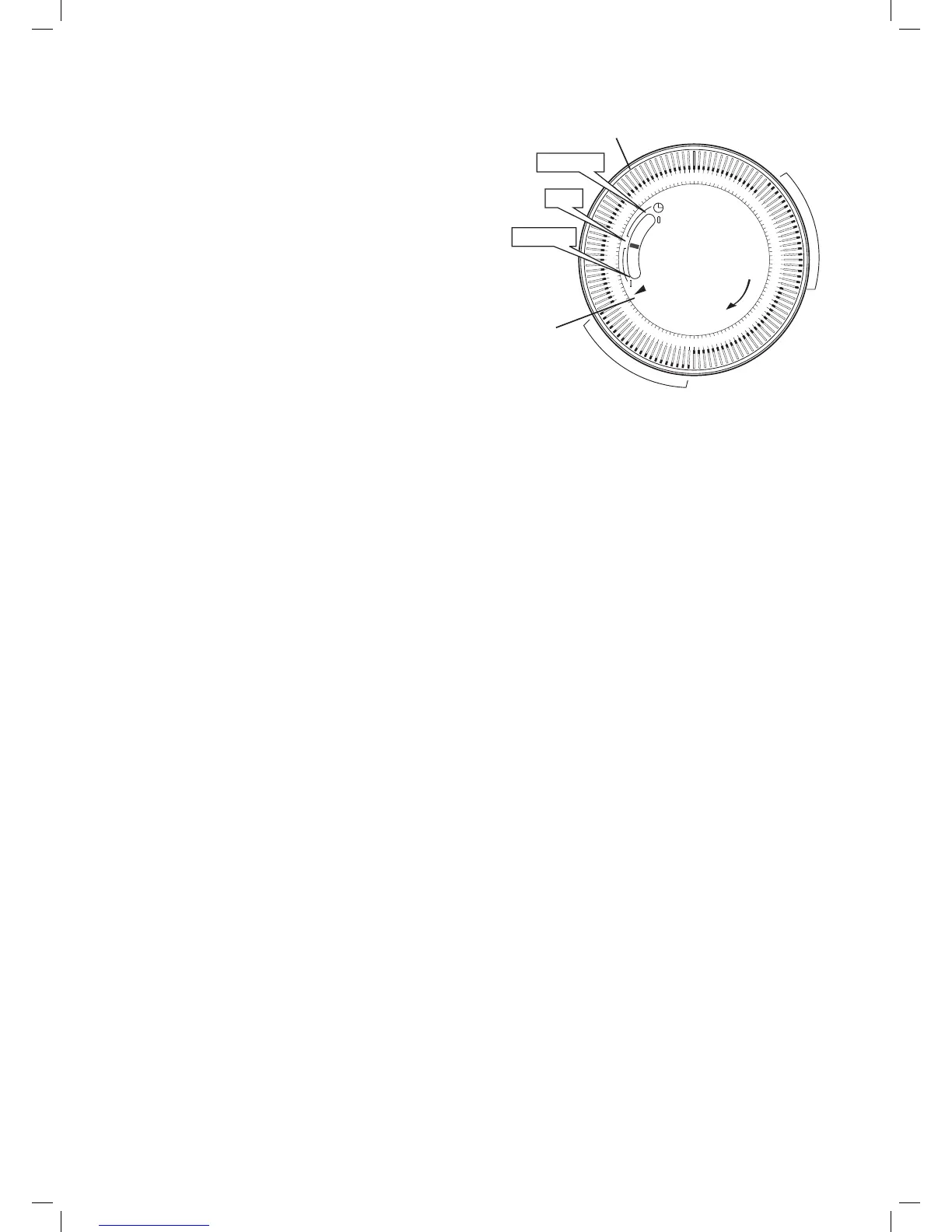

SETTING UP
The outer dial should be set to the current time. Rotate the dial
slowly in a clockwise direction, until the correct hour is aligned
with the arrow printed on the dial.
Note that the outer dial is printed with the 24hr clock e.g. 8.00am
= 8 on the dial, 8.00pm = 20 on the dial.
Do not attempt to rotate the dial in an anti-clockwise
direction.
PROGRAMMING SWITCHING TIMES
Set tappets to outer edge for ON periods and set tappets to inner
edge for OFF periods.
The example shown has been set with 2 on periods.
ON at 9.00am. OFF at 1.00pm. (13 hours)
ON at 6.00pm. (18 hours) OFF at 10.00pm (22 hours)
Manual Switch Operation
To set the timer for timed operation move the switch to the
“TIMED” position.
To set the timer to be continuously on, move the switch to the
“MANUAL ON” position.
To set the timer to be continuously off, move the switch to the
“MANUAL OFF” position.
Note. If boiler does not light when in “timed on” or “manual on”
position, increase temperature on room stat.
