IDEAL Touch Connect Installation Guide

11
O
On
Auto
MON 06:59
ZONE 1
20.5
O
On
Auto
MON 06:59
ZONE 1
!
!
CONTINUE
Note. if the Touch thermostat is activated for some time, the temperature displayed may rise. This will
return to normal operation once all hand held interaction has ceased.

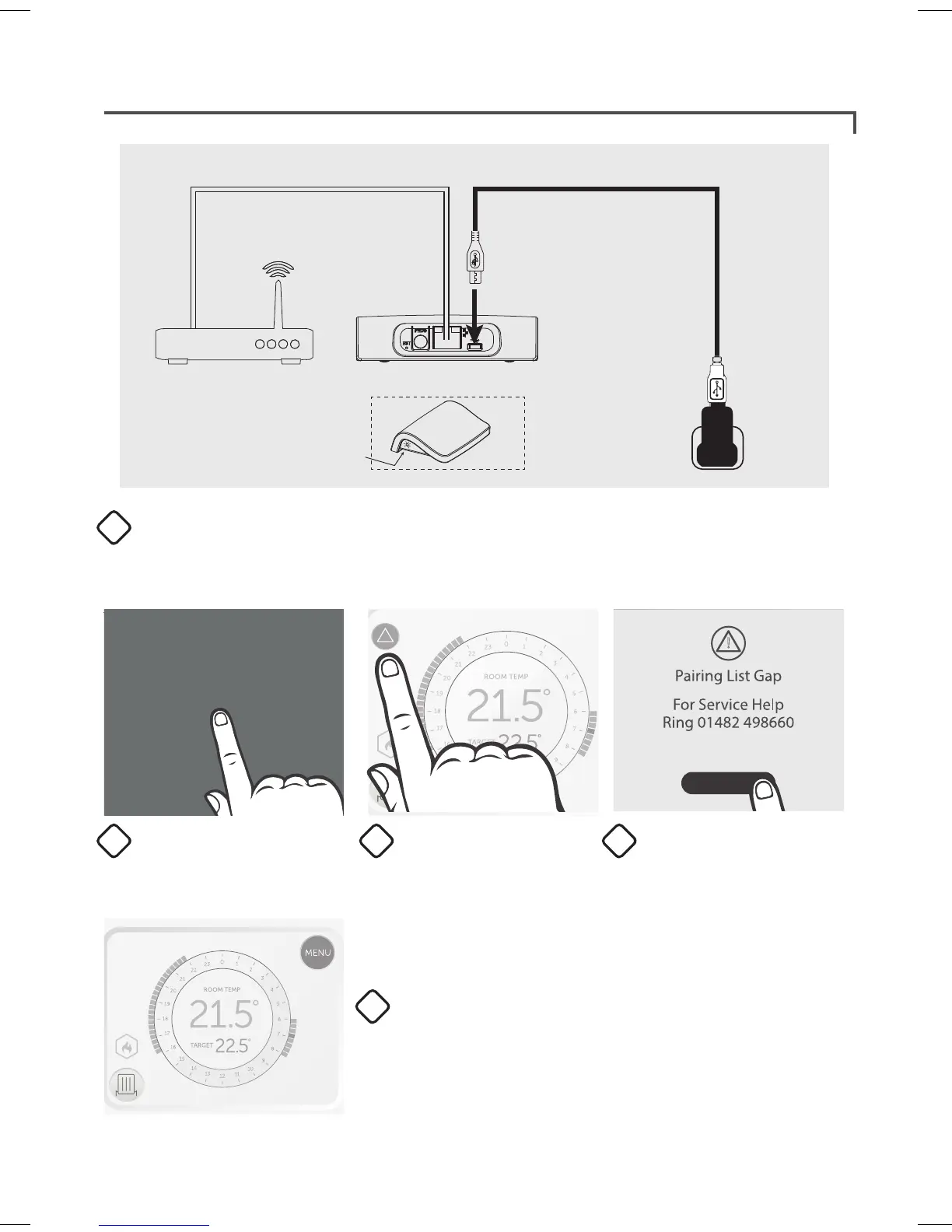

Ethernet cable white (supplied) Gateway power cable (supplied)
3 pin plug
(supplied)
Gateway (supplied)
Gateway LED
indication
Wireless router
(not supplied)
O
On
Auto
MON 10:20
ZONE 1
Tap screen to wake up
the thermostat.
Immediately power up the gateway, and after the LED initialisation sequence
(approx 1 min) the gateway LED will go green indicating that it has
successfully connected.
16 17
19
Installation
Tap the triangle
to progress.
The display will now
show the home screen.
Tap CONTINUE to
complete setup. Note.
phone number is for
future reference only.
18
15

IDEAL Touch Connect Specifications

General

Brand	IDEAL
Model	Touch Connect
Category	Thermostat
Language	English
