IDEAL Vogue Combi c40 Installation And Servicing

34
INsTALLATION
vogue combination boiler - Installation and Servicing
34
INsTALLATION
OFF
for
Press Enter
MENU
Turn dial for Heating
NO
DEMAND
INsTALLATION

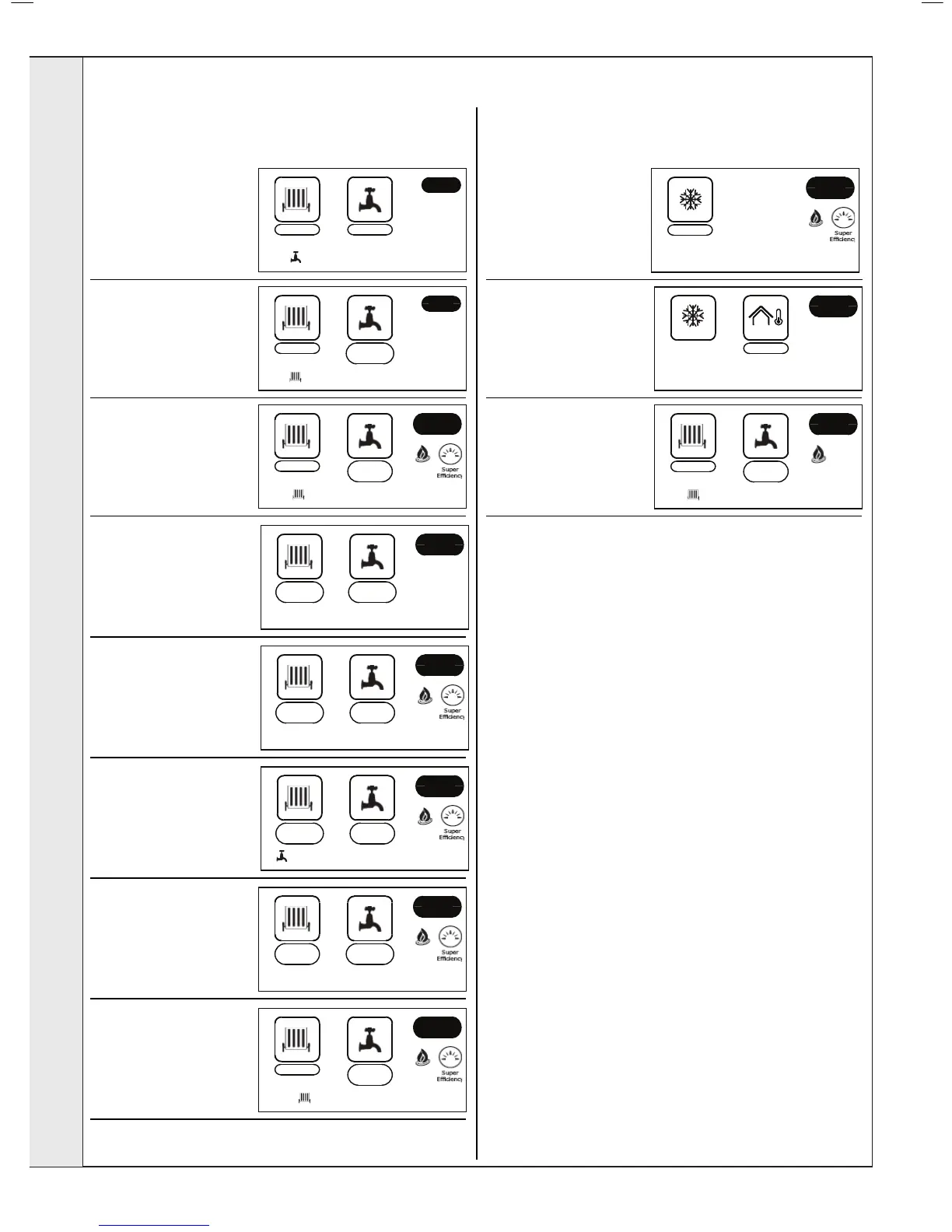

35 DIspLAy FUNCTIONs IN NORMAL OpERATION
Boiler switched Off:
DHW Knob in Off Position
Boiler Frost protection:
occurs if Flow
Temperature less than
5°C
DhW Demand Off:
CH Knob in Off Position
system Frost protection:
occurs if
Outside Sensor connected
& Outside Temp’ < 5°C &
System Frost Protection
selected in Menu
DhW Demand On:
CH Knob in Off Position
service Due:
shown after 12 months
operation, see Frame 33
to reset
DhW Demand Off,
Ch Demand Off
DhW Demand On,
Ch Demand Off
DhW Demand On,
Ch Demand On
DhW Demand Off,
Ch Demand On
pre-heat Demand On
OFF
OFF
Turn dial for Heating or Hot Water
for
Press Enter
MENU
OFF
ON
60°C
Turn dial for Heating
for
Press Enter
MENU
Timer or Room Stat Off
NO
DEMAND
NO
DEMAND
for
Press Enter
MENU
ON
60°C
NO
DEMAND
Timer or Room Stat Off
for
Press Enter
MENU
DEMAND
ON
ON
60°C
Priority
for
Press Enter
MENU
ON
60°C
NO
DEMAND
for
Press Enter
MENU
OFF
Pre-Heat
50°C
Turn dial for Heating
for
Press Enter
MENU
Switch Off Temperature: 19°C
Boiler Frost Protection
4°C
for
Press Enter
MENU
Go to MENU to disable
System Frost Protection
4°C
for
Press Enter
MENU
OFF
ON
60°C
01482 498660
Phone
Service Due
Turn dial for Heating
for
Press Enter
MENU
