IDEC HS5L Series User Manual

Actuator
Description Part No. Package Quantity Remarks
Straight HS9Z-A51 1
Actuator retention force is Fzh=1400N.
Straight with Rubber Bushings HS9Z-A51A 1
Right-angle HS9Z-A52 1
Right-angle with Rubber Bushings HS9Z-A52A 1
Angle Adjustable (vertical) HS9Z-A53 1
Angle Adjustable (vertical/horizontal) HS9Z-A55 1
Actuator retention force is Fz=500N. When a retention force of
500N or more is required, use HS9Z-A53.
Accessories
Description Ordering No. Part No. Package Quantity Remarks
Sliding Actuator (Note 1) (Note 2) HS9Z-SH5 HS9Z-SH5 1
Spring Loaded Actuator (Note 2) (Note 3) HS9Z-BA5 HS9Z-BA5 1 Weight: 70g
Plug Actuator HS9Z-A5P HS9Z-A5P 1
Padlock Hasp HS9Z-PH5 HS9Z-PH5 1
Jumper (Note 4) HS9Z-JP5L HS9Z-JP5LPN02 2
Note 1: For specication on sliding actuators, see separate catalog.
Note 2: Actuator retention force is Fzh=1400N.
Note 3: HS9Z-BA5 can only be used for HS5L interlock switches. Also, HS9Z-BA5 can be used only on slide doors. Do not use on hinge doors.
Note 4: HS9Z-BA5 can only be used for HS5L interlock switches.

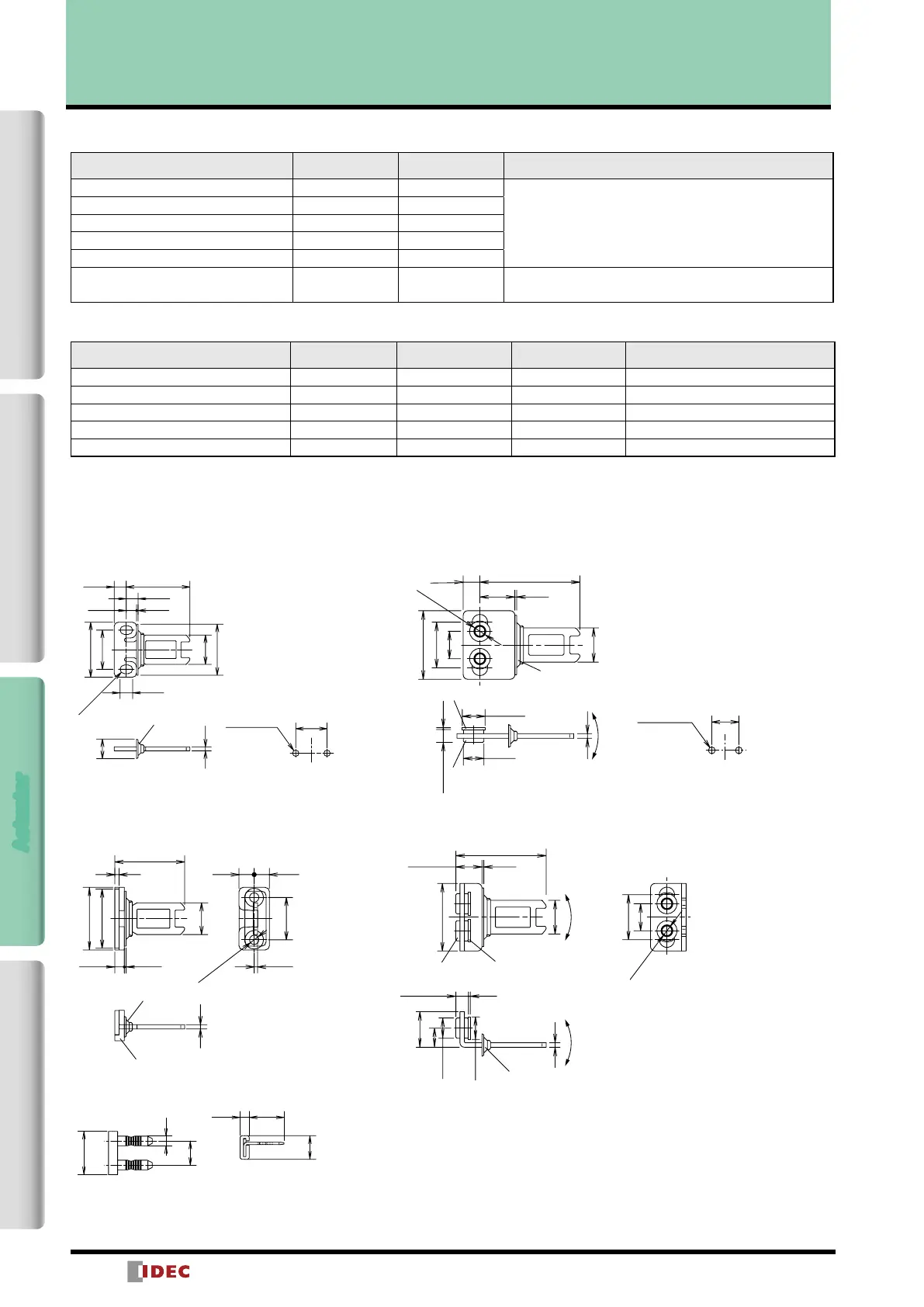

Actuator Dimensions and Mounting Hole Layouts All dimensions in mm.
Straight (HS9Z-A51)
Note: Actuator Stop
(supplied with the actuator)
26
15
32.4
28 20
2.24-R
10
0.85.2
(6)
6.2
6.4
2
2-M4 Screw
20
Actuator Mounting Hole Layout
(Straight, Right-angle)
Straight with Rubber Bushings (HS9Z-A51A)
30
7. 3 43.8
15.3
15
2-ø4.3
2
12
0.8
（20）
0.8
2-ø10
2-ø9
When
mounted (5)
Washer (supplied)
Rubber Bushing
Note: Actuator Stop
(supplied with
the actuator)
∗
The mounting center distance is set to
12 mm at the factory. When a 20mm
distance is required, adjust the
distance by moving the rubber
bushing sideways.
∗
The actuator has exibility to the
direction indicated by the arrows.
∗
Mounting centers can be widened to
20mm by moving the Rubber
Bushings.
Vertical
Swing
Actuator Mounting Hole Layout
(Straight with Rubber Bushings)
(Right-angle with Rubber Bushings)
12
2-M4 Screw
Right-angle (HS9Z-A52) Right-angle with Rubber Bushings (HS9Z-A52A)
Vertical
Swing
Horizontal
Swing
∗ When the mounting center
distance is set to 12mm at the
factory, the actuator has exibility
both vertically and horizontally.
∗ When the mounting center
distance is set to 20mm, the
actuator swings vertically.
Adjust the distance by moving the
rubber bushings.
30 15
15.8
8.5
0.8
2
0.8
(11.2)
When mounted (39.7)
When
mounted
When
mounted
(5)
2-ø9
2-ø10
2-ø4.3
12
(20)
Note: Actuator Stop
(supplied with the actuator)
Rubber Bushing
Washer (supplied)
Jumper (HS9Z-JP5L)
5.4
5
7.1
9
2
2.1
15
2
2-ø4.4
20
33
30
28
0.84.5
2 7.27.2
1.6
Note: Actuator Stop
(supplied with the actuator)
Actuator Cover
Actuators for HS5 Series Interlock Switches
2-Contact4-ContactActuatorDimensions / Instructions
16

IDEC HS5L Series Specifications

General

Protection Rating	IP67
Rated Voltage	250 VAC, 30 VDC
Operating Temperature	-25°C to 70°C
Standards	UL
Housing Material	Plastic or Metal (Die-cast aluminum)
