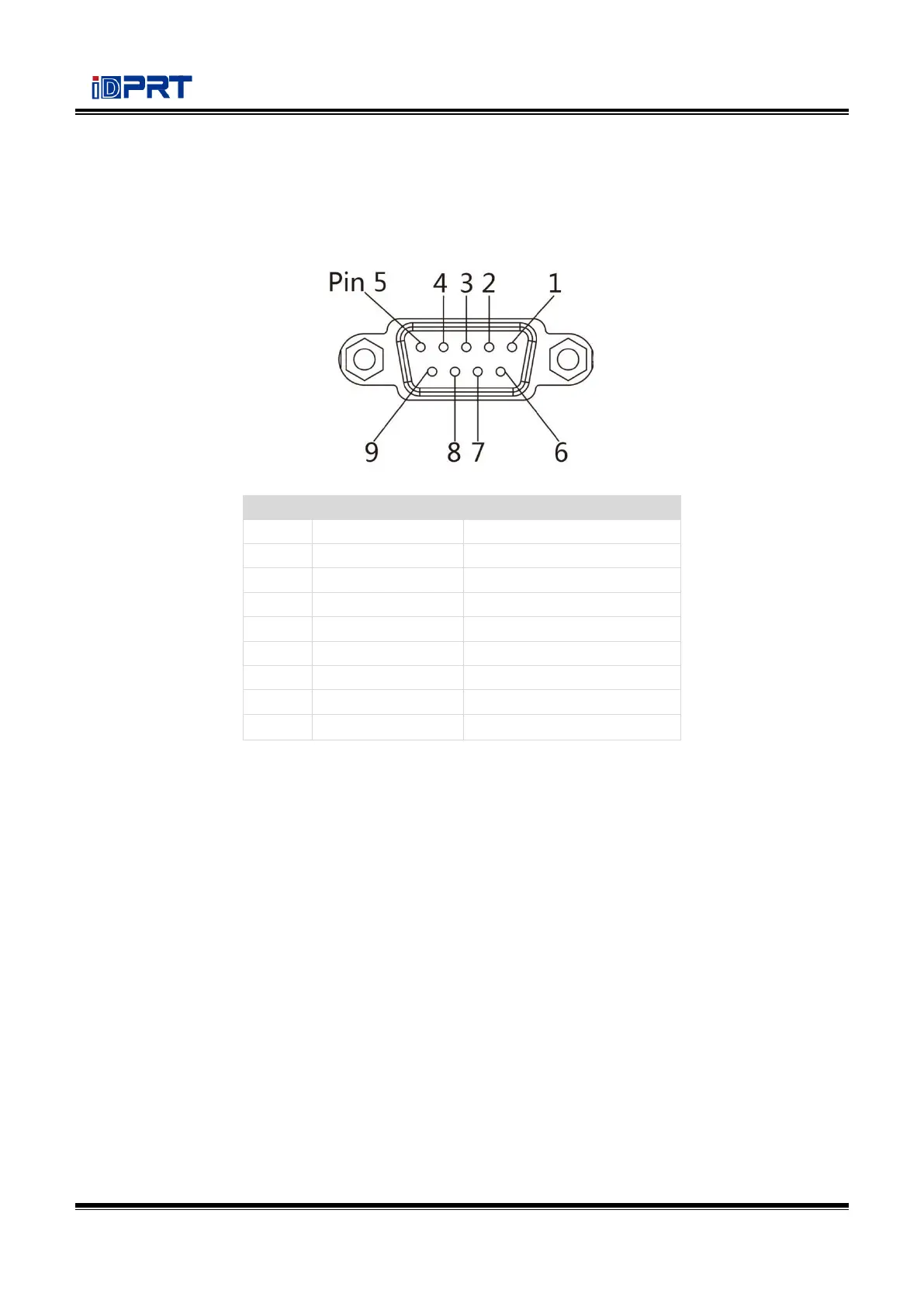

4.2 Other Optional Interfaces
◼ 



1
+5VDC
OUTPUT
2
RXD
OUTPUT
3
TXD
INPUT
4
DTR
INPUT
5
GND
GROUNDING
6
DSR
OUTPUT
7
RTS
INPUT
8
CTS
OUTPUT
9
-
NO CONTACT
