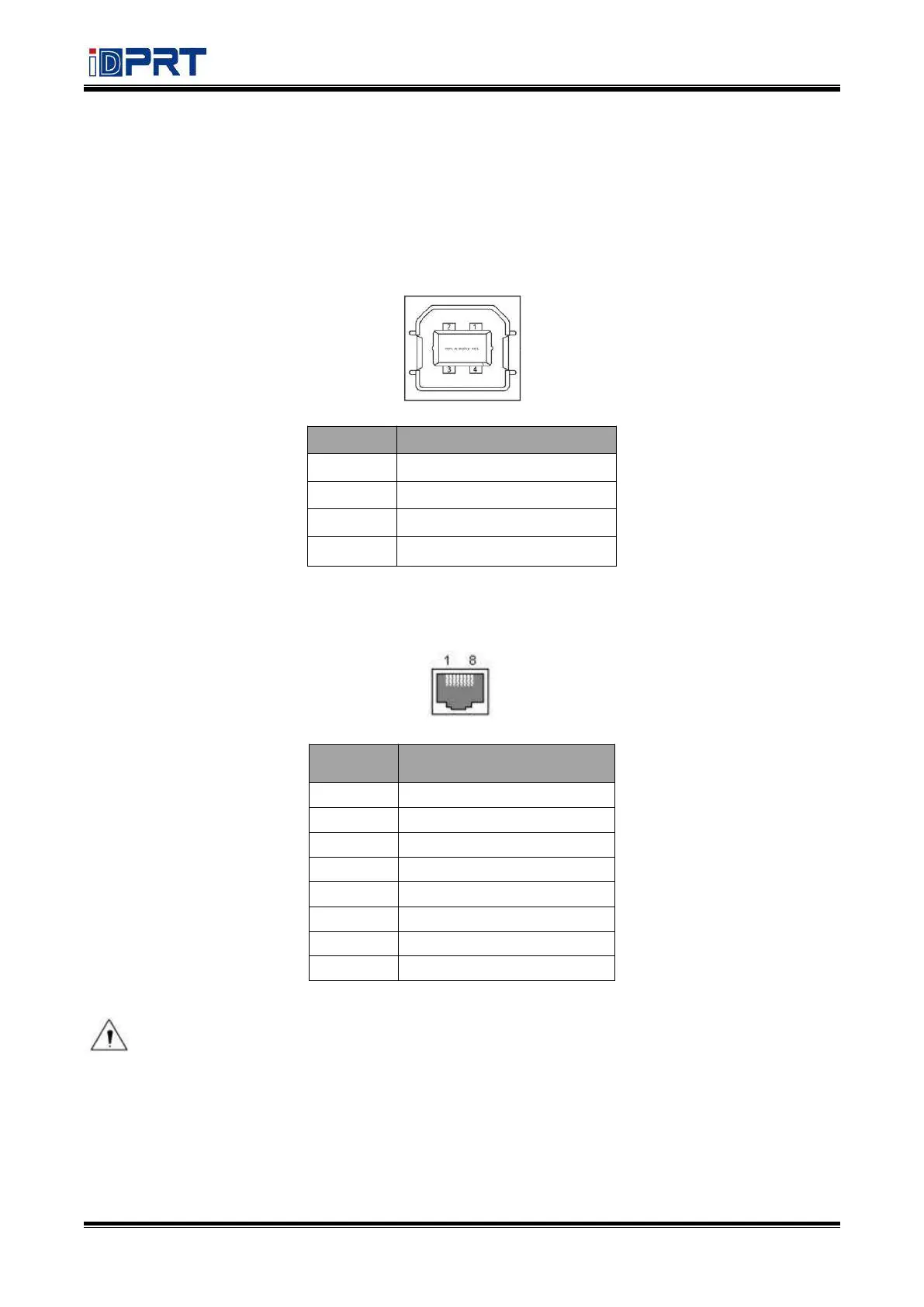

5 INTERFACES
SP900 supports cash drawer interface and many other various communicate interfaces, such as USB
interface, Ethernet interface.
5.1 USB Interface
PIN NO.
Signal Name
1
VBUS
2
D-
3
D+
4
GND
5.2 Ethernet Interface
PIN NO.
Signal Name
1
TX+
2
TX-
3
RX+
4
-
5
-
6
RX-
7
-
8
-
Note: Ethernet interface can only be connected to an has been isolated SELV such interface
of end device.
