IDS NXT: Setup IDS NXT rio
6 Electrial specifications
· Pin assignment GigE connector (RJ45)
· Pin assignment I/O connector
· Digital input wiring
· Digital output wiring
· RS-232 wiring
Exception: PoE may be considered a Network Environment 0 per IEC TR 62101, and thus the
interconnected ITE circuits may be considered SELV, if:
1. the function of the ITE being investigated to IEC 60950-1 is considered not likely to require
connection to an Ethernet network with outside plant routing, including campus
environment; and
2. the installation instructions clearly state that the ITE is to be connected only to PoE
networks without routing to the outside plant.

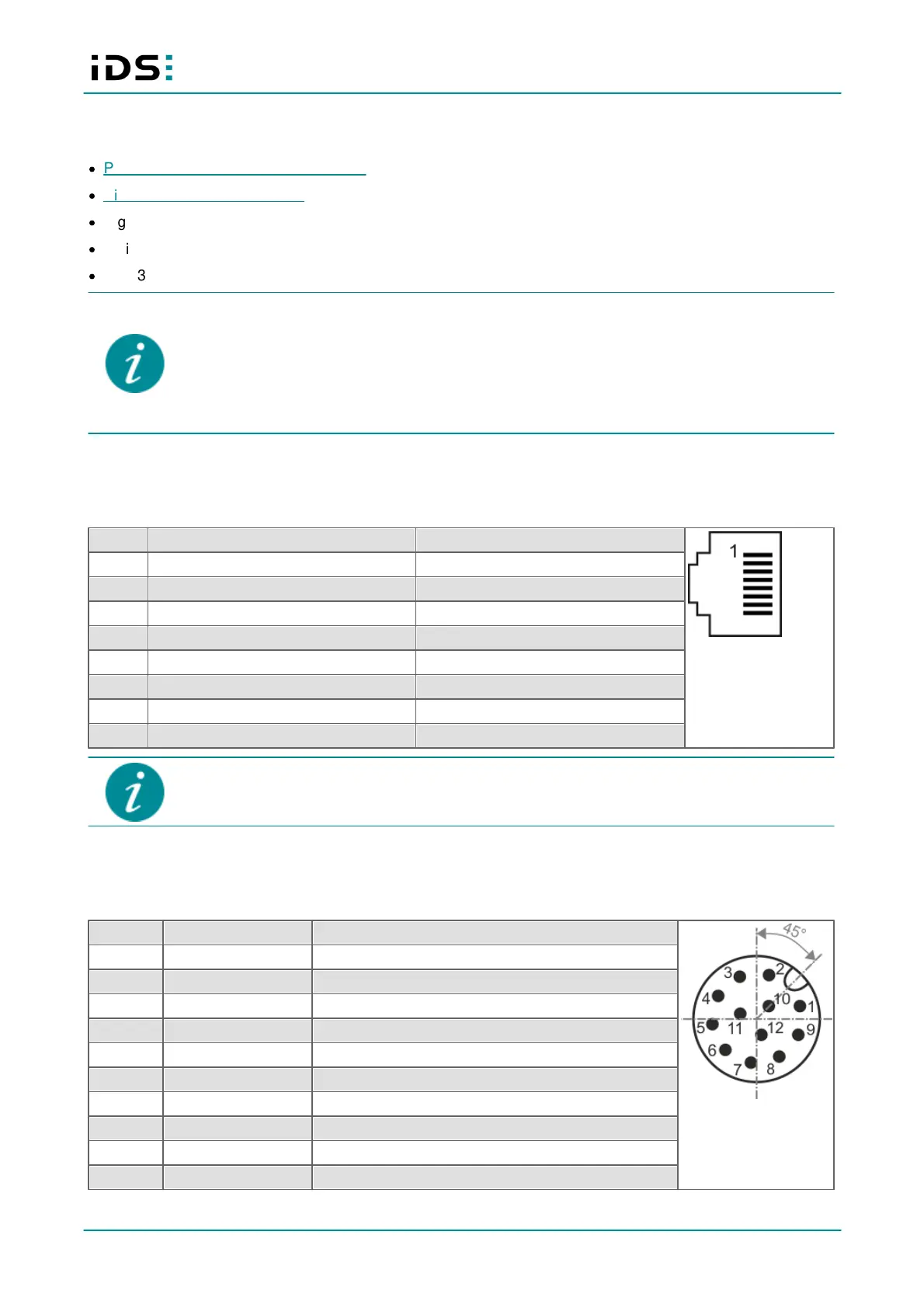

6.1 Pin assignment GigE connector (RJ45)
8-pin RJ45 socket
Pin
Designation 100BASE-TX
Designation 1000BASE-T
Fig. 2: RJ45
socket,
camera rear
view
1
Tx+
Bl_DA+
2
Tx-
Bl_DA-
3
Rx+
Bl_DB+
4
Bl_DC+
5
Bl_DC-
6
Rx-
Bl_DB-
7
Bl_DD+
8
Bl_DD-
The RJ45 socket of the IDS NXT rio complies with the IEC 60603-7 standard.
6.2 Pin assignment I/O connector
12-pin M12 connector (Attend 216A-12MSR)
Pin
Signal
Description
Fig. 3: I/O connector,
camera rear view
1
VBUS
Power supply: 12-24 V DC +20 %
2
VBUS GND
Reference level (ground) for power supply and RS-232
3
Opto IN (0)
Trigger input with optocoupler
4
Opto IN (1)
Input 1 with optocoupler
5
Opto IN (COM)
Reference level for all Opto IN
6
Opto OUT (COM)
Reference level for all Opto OUT
7
Opto OUT (1)
Output 1 with optocoupler
8
Opto OUT (2)
Output 2 with optocoupler
9
RS232 (RxD)
Serial interface
10
RS232 (TxD)
Serial interface
