4.3 Insert the battery
To connect the battery open the dedicated compartment by turning and pulling the
metallic ring (Fig. 4.8), slide the battery inside with the plastic connector facing the front
of the radar (Fig. 4.9) and then close the compartment.

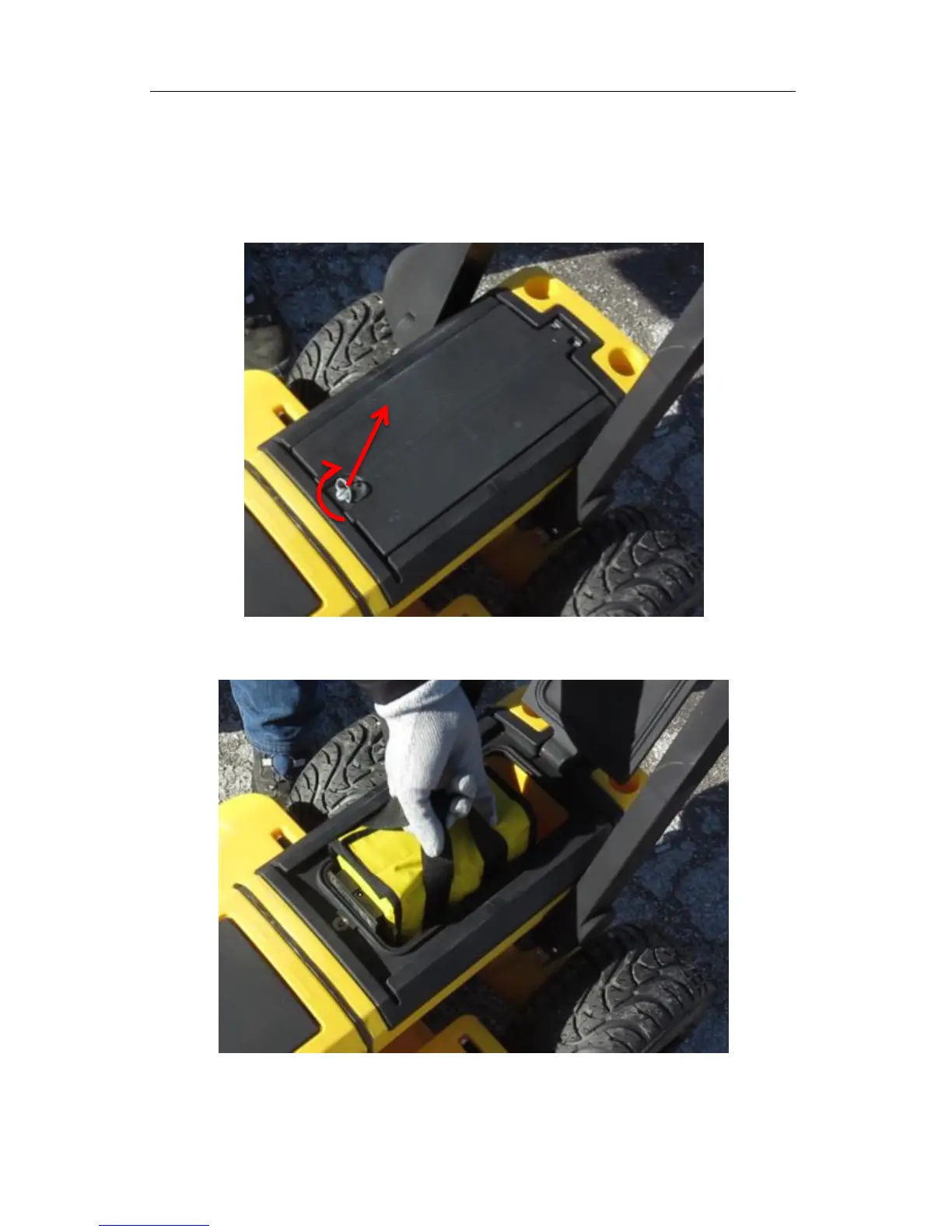

Fig. 4.8 – Battery compartment
Fig. 4.9 – Battery connection
