IDS Opera Duo User Manual

IDS Ingegneria Dei Sistemi S.p.A.
N doc:MN/2014/024 - Rev. 1.0
OPERA DUO v. 1.0 – User Manual
31 / 34
All information contained in this document is property of IDS. All rights reserved
4.4 Mount the Spray support
The Spray support is an optional component to hold and command the spray to mark
targets on the ground.
It can be mounted on either side of the antenna, following these steps:
1. Open the locks in the lower part of the spray support (Fig. 4.10);

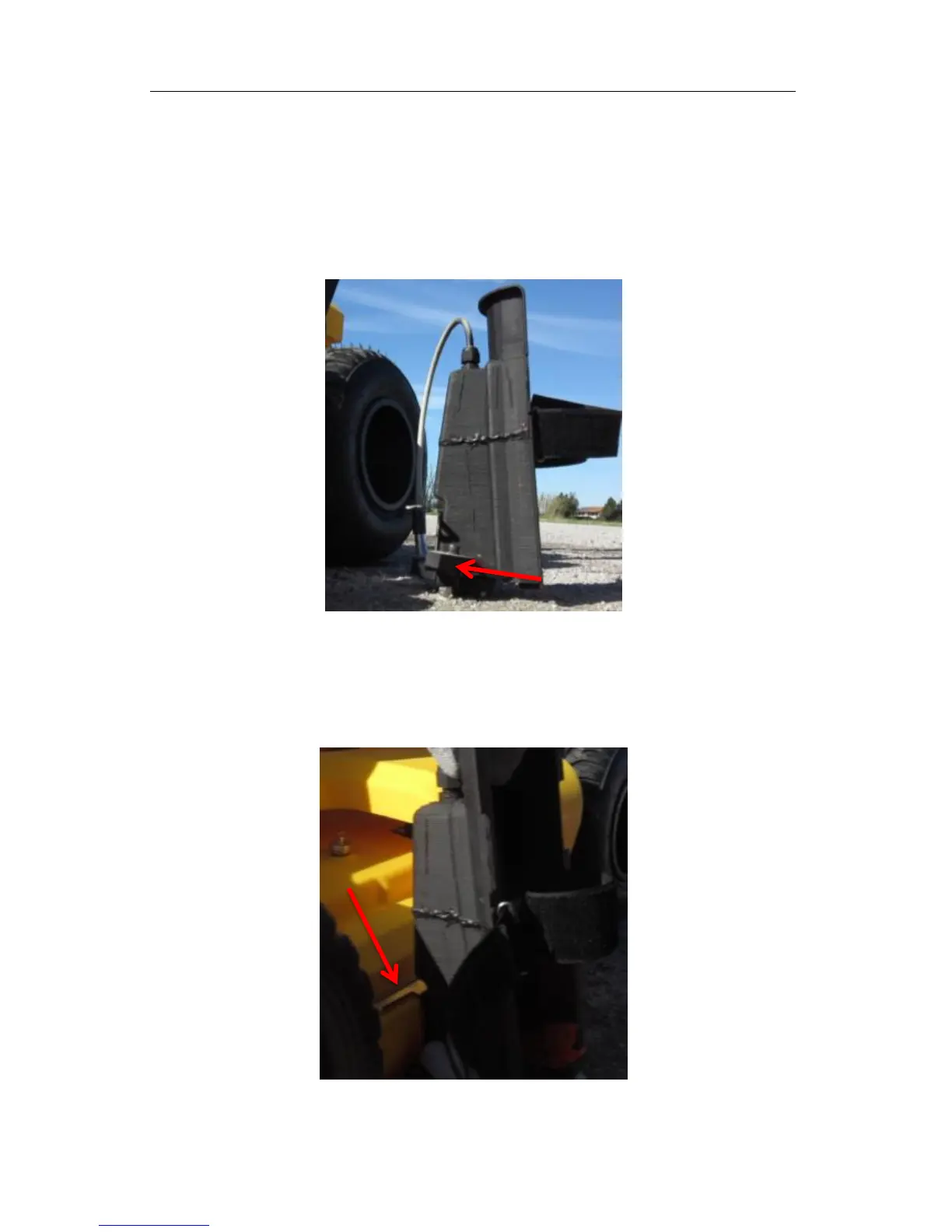

Fig. 4.10 – Spray support locks
2. Fix the spray support to the radar main body, inserting first the upper part and
then the lower (Fig. 4.11);
Fig. 4.11 – Spray support fixing
