IDS Opera Duo - Mount the GPS support

IDS Ingegneria Dei Sistemi S.p.A.
N doc:MN/2014/024 - Rev. 1.0
OPERA DUO v. 1.0 – User Manual
33 / 34
All information contained in this document is property of IDS. All rights reserved
4.5 Mount the GPS support
The GPS support is composed of two metallic parts whose purpose is to hold the GPS
pole. This pole is not provided with the radar.
To mount the GPS support follow these steps:
1. Insert the upper part of the support into the two dedicated holes (Fig. 4.14);

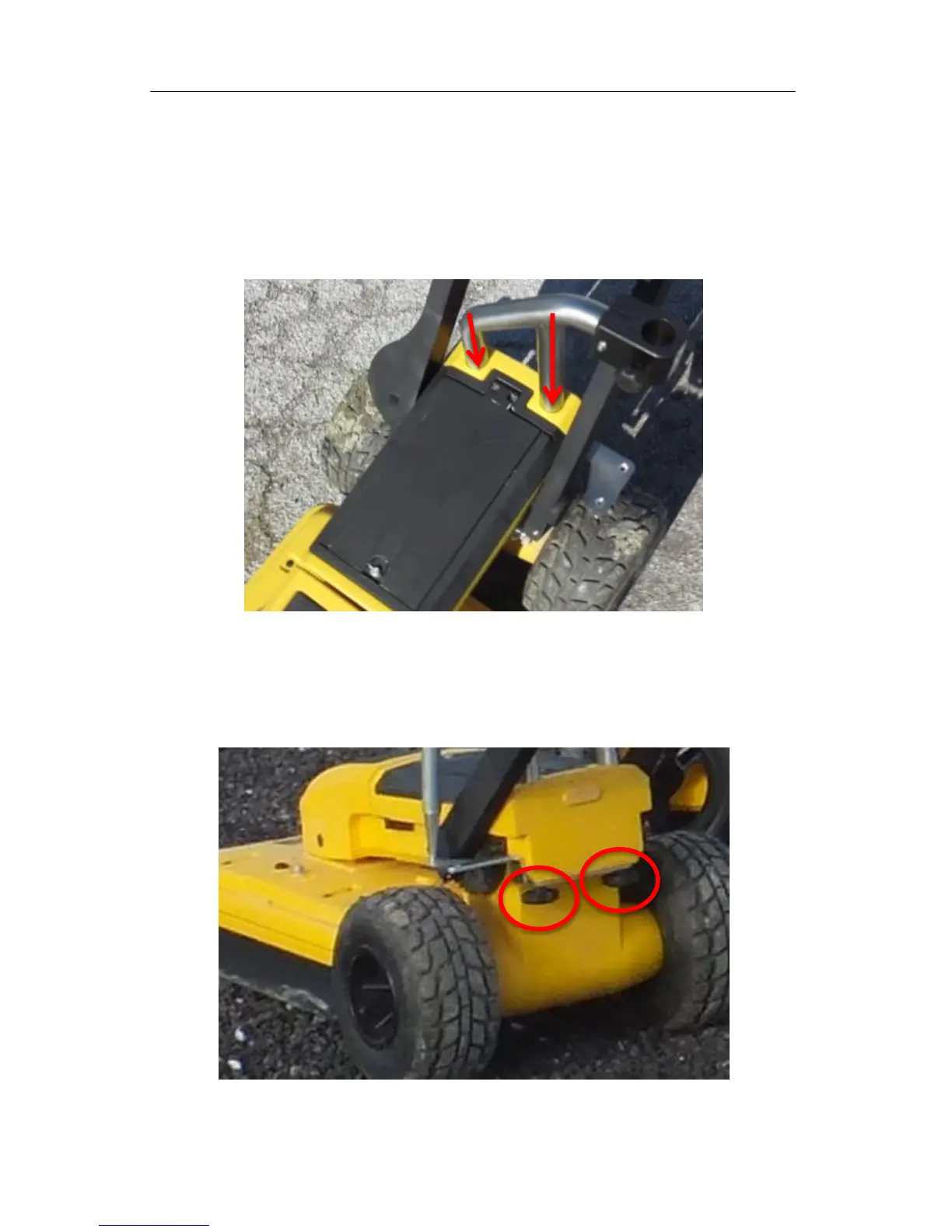

Fig. 4.14 – GPS support upper part insertion
2. Screw the lower part to the Opera Duo main body using the two knobs, in this
way the two parts will be fixed together (Fig. 4.15).
Fig. 4.15 – GPS support lower part fixing
